Quick Details
-
Brand Name:
-
SINCR
-
Model Number:
-
SV100-2R2-2SB
-
Input Voltage:
-
380V~480V
-
Output Voltage:
-
380V~480V
-
Output Current:
-
10A
-
Output Frequency:
-
0~600HZ
-
Size:
-
W*H*D=85*190*149 mm
-
Weight:
-
N.W 1.4KG, G.W 1.6KG
-
Product name:
-
Solar Water Pump Inverter
-
Application:
-
Off-grid System
-
Certificate:
-
CE ISO9001
-
Warranty:
-
3 Years
-
Color:
-
White
-
Protection:
-
IP20
-
Rated power:
-
4-12kw
-
Name:
-
Ac Dc Converter
-
Display:
-
LED Digital
-
Inverter type:
-
AC Output
Quick Details
-
Output Type:
-
Single
-
Type:
-
DC/AC Inverters
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SINCR
-
Model Number:
-
SV100-2R2-2SB
-
Input Voltage:
-
380V~480V
-
Output Voltage:
-
380V~480V
-
Output Current:
-
10A
-
Output Frequency:
-
0~600HZ
-
Size:
-
W*H*D=85*190*149 mm
-
Weight:
-
N.W 1.4KG, G.W 1.6KG
-
Product name:
-
Solar Water Pump Inverter
-
Application:
-
Off-grid System
-
Certificate:
-
CE ISO9001
-
Warranty:
-
3 Years
-
Color:
-
White
-
Protection:
-
IP20
-
Rated power:
-
4-12kw
-
Name:
-
Ac Dc Converter
-
Display:
-
LED Digital
-
Inverter type:
-
AC Output

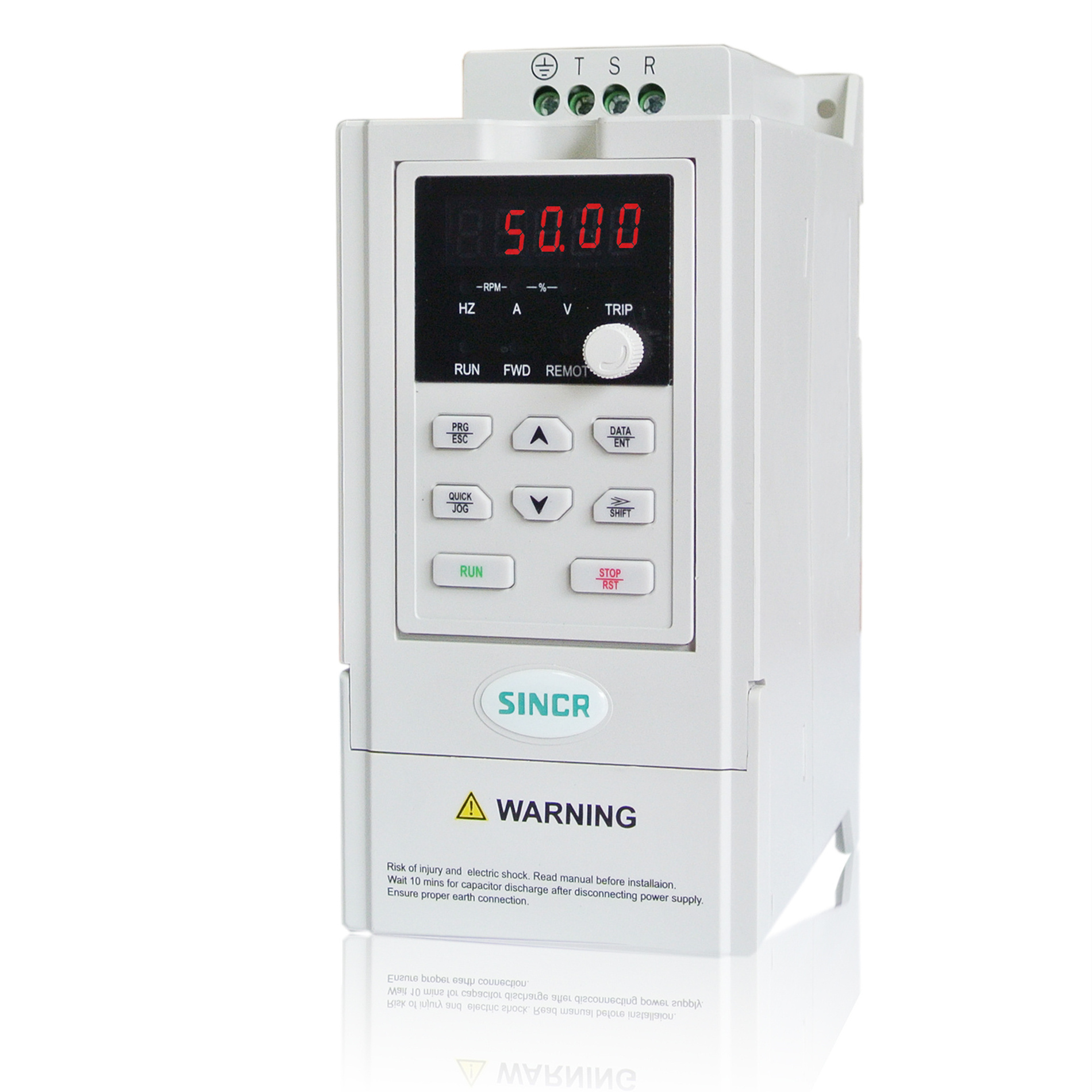

SINCR Solar Inverter Price DC to AC Power Inverter 3 Phase
Power Frequency Converter 60hz 50hz for Water Pumping
SINCR Solar Pump Inverter 11-15KW
Transfer the solar DC to be AC, drivers the water pump to supply water, with the functions of MPPT, water level control, AC/DC switching, fully automatic operation, etc., to control and adjust the whole solar pump system operation.
Techniacl Features
♦ Built-in high-precision MPPT function, with accuracy reach up to 99%, make full use of solar energy.
♦ Automatic shutdown and restart, fully automatic control, unattended. (bulit-in water level sensor and light sensor) .
♦ Compatible with solar and mains power (or generator) input.
| Model No. |
AC input voltage
(V) |
MPPT voltage range
(Vmp) |
Output power
(KW) |
Input current
(A) |
Output current
(A) |
| SV100-0R7-2SB |
Single phase
220~240V AC |
280~360V DC | 0.75 | 8.2 | 4.5 |
| SV100-1R5-2SB | 1.5 | 14.2 | 7 | ||
| SV100-2R2-2SB | 2.2 | 23 | 10 | ||
| SV100-0R7-2TB |
3 phase
220~240V AC |
280~360V DC | 0.75 | 5 | 4.5 |
| SV100-1R5-2TB | 1.5 | 7.7 | 7 | ||
| SV100-2R2-2TB | 2.2 | 11 | 10 | ||
| SV100-0R7-4TB |
3 phase
380~480V AC |
500~700V DC | 0.75 | 3.4 | 2.5 |
| SV100-1R5-4TB | 1.5 | 5 | 3.7 | ||
| SV100-2R2-4TB | 2.2 | 5.8 | 5 | ||
| SV100-004-4TB | 4 | 10 | 9 |
Sincr are not just factory, but also service providers to solve problems. From providing solutions to production to installation of solar pump inverter system, we use professional expertise to prove our strength.
