Quick Details
-
Material:
-
wooden case, FRP/SS/PVC
-
Weight:
-
about 500kg
-
Size:
-
≥ 1640*700*1400 mm
-
Power:
-
≥ 1.2 Kw
-
Weight (KG):
-
100 kg
-
Water yield:
-
250 L/H
-
Configuration:
-
Filter media+RO+EDI+mixed bed resin
-
Filter Media:
-
Quartz sand+AC+Softener resin
-
Operation:
-
Colorful PLC touch screen
-
Monitoring online:
-
resistivity&conductivity meter
-
Other meter:
-
flow meter, pressure gauge
-
RO water's conductivity:
-
≤ 10 us/cm@25℃(TDS<300ppm)
-
UP water's resistivity:
-
10-18.25MΩ.cm
-
TOC:
-
≤ 20 ppb
Quick Details
-
Applicable Industries:
-
Industry
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
ZHUOYUE
-
Material:
-
wooden case, FRP/SS/PVC
-
Weight:
-
about 500kg
-
Size:
-
≥ 1640*700*1400 mm
-
Power:
-
≥ 1.2 Kw
-
Weight (KG):
-
100 kg
-
Water yield:
-
250 L/H
-
Configuration:
-
Filter media+RO+EDI+mixed bed resin
-
Filter Media:
-
Quartz sand+AC+Softener resin
-
Operation:
-
Colorful PLC touch screen
-
Monitoring online:
-
resistivity&conductivity meter
-
Other meter:
-
flow meter, pressure gauge
-
RO water's conductivity:
-
≤ 10 us/cm@25℃(TDS<300ppm)
-
UP water's resistivity:
-
10-18.25MΩ.cm
-
TOC:
-
≤ 20 ppb

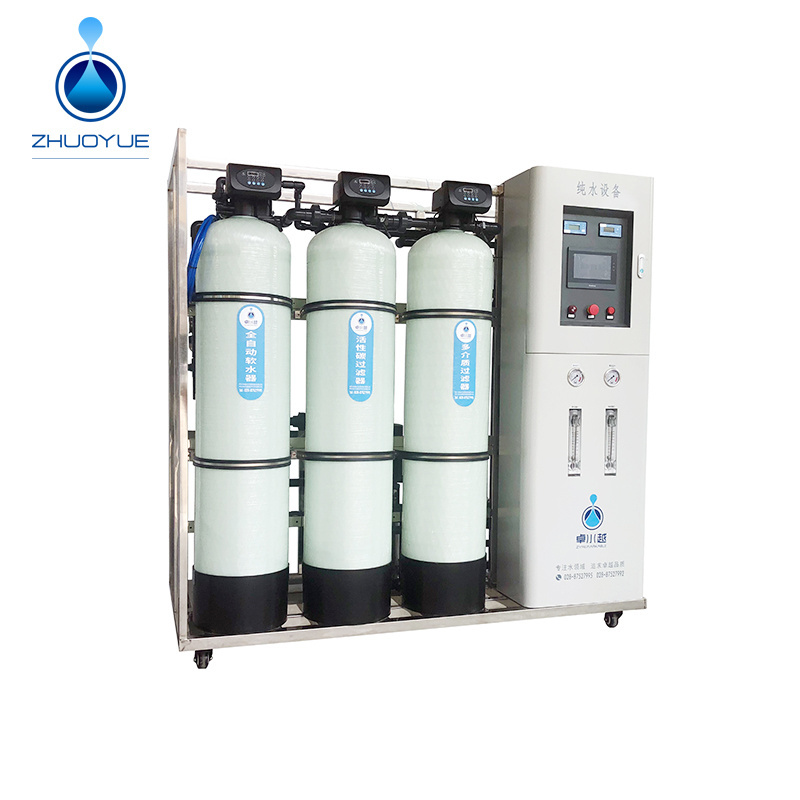

ZYUP EDI Ultrapure Water Treatment Equipment
The ZYUP ultrapure water machine can convert the pure water to ultrapure water by mixed bed resin or EDI membrane. The resitivity usually can up to 10-18.25MΩ.cm. It is mainly used in the solvent industry for solvent water, chemical analysis, chemical materials, product cleaning, material separation, concentration, purification, waste recovery and other occasions.
Technical Parameters of EDI Ultrapure Water Treatment Equipment
| Water production | 250L/H or customized |
| Working pressure | 0.2-0.4MPa |
| Water temperature | 5-40℃ |
| RO membrane DN | 0.0001-0.001um |
| Ion removal rate | ≥99%; |
| Endotoxin, bacterial removal rate | ≥ 99%; |
| Recovery | ≥75%; |
| Effluent conductivity | ≤ 10 us/cm@25℃ (Raw water's TDS <300ppm) |
| Effluent resistivity | 15-18.25 MΩ.cm |
Model List of EDI Ultrapure Water Treatment Equipment
| No. | Model |
Water yield (L/H) |
Voltage/Power (V/Kw) |
Body Size (L*W*H mm) |
Water Tank (L/Material) |
| 1 | ZYUP-250 | 250 | 380/1.95 | 1400*700*1640 | 250/SS/PE |
| 2 | ZYUP- 500 | 500 | 380/2.05 | 1400*700*1640 | 500/ SS /PE |
| 3 | ZYUP- 1000 | 1000 | 380/2.20 | 1400*700*1640 | 1000/ SS /PE |
| 4 | ZYUP- 1500 | 1500 | 380/2.80 | 25 00*10 00*1700 | 1500/ SS /PE |
| 5 | ZYUP- 2000 | 2000 | 380/3.96 | 25 00*10 00*1700 | 2000/ SS /PE |
| 6 | ZYUP- 3000 | 3000 | 380/6.65 | 3000*1200*1800 | 3000/ SS /PE |
| 7 | ZYUP-4000 | 4000 | 380/6.80 | 30 00* 12 00* 18 00 | 4000/ SS /PE |
| 8 | ZYUP-5000 | 5000 | 380/11.05 | 35 00* 13 00* 20 00 | 5000/ SS /PE |
Note: Customization is available.
Flow of EDI Ultrapure Water Treatment Equipment
1. PLC touch screen -- intelligence and color;
2. Raw water pump -- provide the pressure to quartz sand filter/active carbon filter.
3. Quartz sand filter -- get rid of silt, rust, ago, turbidity, suspended matter, organic matter, colloid, ect.
4. AC filter --Adsorb the residual chlorine, smell, color, part microorganism, harmful matter, ect.
5. Softener resin --exchange Ca2+ and Mg2+ to get soft water.
6. Protection filter --filtrate micro-particles, bacteria, viruses whose accuracy is larger than 5um and protect the into RO membrane, accuracy is 5um.
7. High pressure pump -- Provide the high pressure to RO membrane.
8. RO membrane -- remove more than 99% ions, bacteria, salt, microorganism, heavy ions, colloid,emdotoxin and other particles in the water.
9. Booster pump --offer pressure to precision filter.
10. Precision filter --prevent microparticles whose diameter is more than 1um into EDI module.
11. EDI module -- produce 15-18.25MΩ.cm ultrapure water.
12. Mixed bed resin -- Exchange cation ions and anion ions to H+ and OH-, and stably get 18.25MΩ.cm ultrapure water.
