Quick Details
-
Weight:
-
100kg
-
Compressor brand:
-
Boyang, danfoss/bizter/cumtomized
-
Refrigerant:
-
R404,R448,R449,R455,R134
-
Certification:
-
RoHS
-
Product name:
-

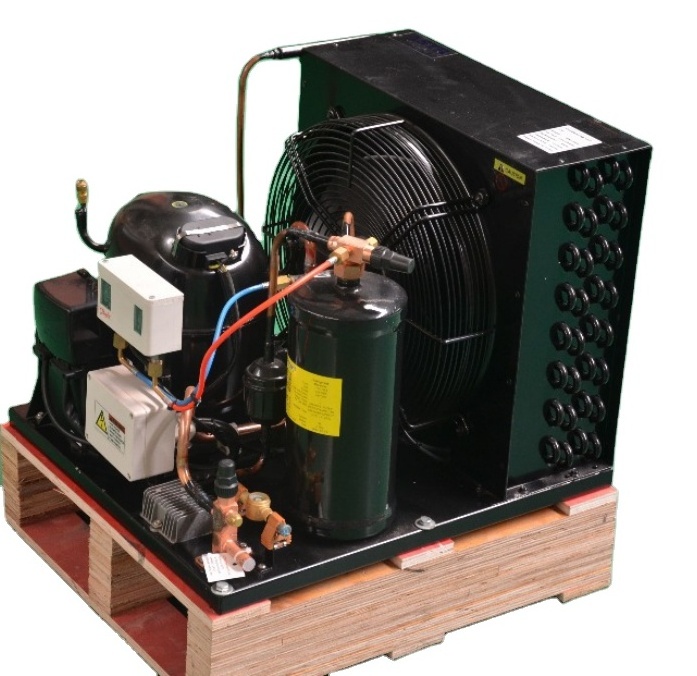

Mini condensing unit with boyang rotary compressor for drink cold room
-
Nom.HP:
-
0.75-2.5HP
-
Power supply:
-
220V/1ph/50HZ
-
Application:
-
Cold Storage Room Freezer Room
-
case material:
-
Galvanized steel
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
NF
-
Voltage:
-
220V/380v
-
Weight:
-
100kg
-
Compressor brand:
-
Boyang, danfoss/bizter/cumtomized
-
Refrigerant:
-
R404,R448,R449,R455,R134
-
Certification:
-
RoHS
-
Product name:
-
Mini condensing unit with boyang rotary compressor for drink cold room
-
Nom.HP:
-
0.75-2.5HP
-
Power supply:
-
220V/1ph/50HZ
-
Application:
-
Cold Storage Room Freezer Room
-
case material:
-
Galvanized steel
Remark:R404A refrigerant,Duty at 32℃ ambient temperature,-10℃ Evaporating temperature,20℃suction temperature
|
型号 Model 参数 Technical Date
|
|
NF050DGM
|
NF075DGM
|
NF100DGM
|
NF150DGM
|
NF200DGM
|
NF250SGM
|
|
|
|
|
|
|
|
|
|
|
|
|
名义制冷量 Nominal Capacity(kW)
|
|
0.96
|
1.29
|
1.62
|
2.31
|
3.44
|
4.47
|
|
|
匹数 Horse Power (HP)
|
|
0.5
|
0.75
|
1
|
1.5
|
2
|
2.5
|
|
|
压缩机 Compressor
|
|
AE4460Z
|
CAJ9480Z
|
CAJ9510Z
|
CAJ4517Z
|
FH4524Z
|
TFH4531Z
|
|
|
风机个数 Fan Quantity
|
|
1
|
1
|
1
|
1
|
1
|
2
|
|
|
风叶直径 Fan Diameter (mm)
|
|
250
|
300
|
350
|
350
|
400
|
350
|
|
|
风量 Air Flow (m³/h)
|
|
730
|
1660
|
2270
|
2270
|
3540
|
4540
|
|
|
风机功率 Fan Motor Power (W)
|
|
50
|
85
|
130
|
130
|
180
|
260
|
|
|
连接管管径Connection Pipe Diameter
|
液管 Liquid Line (inch)
|
3/8
|
3/8
|
3/8
|
3/8
|
1/2
|
1/2
|
|
|
|
气管 Gas Line (inch)
|
3/8
|
3/8
|
1/2
|
1/2
|
5/8
|
7/8
|
|
|
电源 Power Sourch
|
|
220V/1/50Hz
|
220V/1/50Hz
|
220V/1/50Hz
|
220V/1/50Hz
|
220V/1/50Hz
|
380V/3/50Hz
|
|
|
额定电流 Rated Current (A)
|
|
4.5
|
4.7
|
6.0
|
7.9
|
11.5
|
6.9
|
|
|
外形尺寸External Dimensions
|
宽 Width （mm）
|
430
|
430
|
500
|
540
|
600
|
900
|
|
|
|
高 Height（mm）
|
360
|
360
|
455
|
505
|
560
|
455
|
|
|
|
深 Deep（mm）
|
485
|
515
|
560
|
600
|
660
|
620
|
|
|
型号Model 参数Technical Date
|
|
NF100DGL
|
NF150DGL
|
NF200DGL
|
NF300DGL
|
|
|
|
|
|
|
|
|
|
|
名义制冷量Nominal Capacity(kW)
|
|
1.13
|
1.46
|
2.14
|
2.89
|
|
|
匹数 Horse Power (HP)
|
|
1
|
1.5
|
2
|
3
|
|
|
压缩机 Compressor
|
|
CAJ2446Z
|
CAJ2464Z
|
FH2480Z
|
TFH2511Z
|
|
|
风机个数 Fan Quantity
|
|
1
|
1
|
1
|
2
|
|
|
风叶直径 Fan Diameter (mm)
|
|
250
|
300
|
400
|
350
|
|
|
风量 Air Flow (m³/h)
|
|
730
|
1660
|
3540
|
4540
|
|
|
风机功率 Fan Motor Power (W)
|
|
50
|
85
|
180
|
260
|
|
|
连接管管径Connection Pipe Diameter
|
液管 Liquid Line (inch)
|
3/8
|
3/8
|
1/2
|
1/2
|
|
|
|
气管 Gas Line (inch)
|
1/2
|
5/8
|
5/8
|
5/8
|
|
|
电源 Power Sourch
|
|
220V/1/50Hz
|
220V/1/50Hz
|
220V/1/50Hz
|
380V/3/50Hz
|
|
|
额定电流 Rated Current (A)
|
|
4.2
|
6.1
|
8.0
|
5.0
|
|
|
外形尺寸External Dimensions
|
宽 Width （mm）
|
500
|
500
|
600
|
900
|
|
|
|
高 Height（mm）
|
400
|
400
|
560
|
455
|
|
|
|
深 Deep（mm）
|
560
|
560
|
600
|
620
|
|
Remark:R404A refrigerant,Duty at 32℃ ambient temperature,-25℃ Evaporating temperature,20℃suction temperature
Products Description
Optimizing design:Danfoss refrigeration components,ABB electricals and Italis Dixell controller used in the monobloc condensing
unit makes the function more reliable and installation easier.
unit makes the function more reliable and installation easier.
Especial advantage
1.Compact hermetic design
2.Good quality and high cost-efficiency
3.Can be installed very conveniently
2.Good quality and high cost-efficiency
3.Can be installed very conveniently
Certifications
The company has ISO9001:2000, ISO1400, CE, CB, RoHS and other quality, environmental protection system certification and national industrial product production license.
Company Introduction
Taizhou Nanfeng Cold-Chain limited company was set up in 1999, which specializes in the development, manufacture and sales of refrigeration equipment. The company’s core products are DC inverter condensing unit, Danfoss fully equipped condensing unit, High quality condensing unit and so on. The DC inverter condensing unit is very Super Energy Saving (40%-60%), Super Silent( as low as 45dB) and so on. Danfoss fully equipped condensing unit is high reliable, high efficiency, strong durability and other advantages.
The company has a professional R&D team and a group of dedicated employees. It has automated assembly lines, imported leak detection equipment, type labs, and production process management software systems to ensure the quality of all products of the company and also ensure the company’s new product development and production supply ability.
Exhibition
The company’s major markets are Europe, Australia and other developed countries and regions. It is positioned in the high-end refrigeration market and provides OEM and ODM services to customers in developed countries such as the United Kingdom and Australia. Since 2009, the company has settled in the Alibaba International Station platform. It has always upheld the business principles of honesty and trustworthiness in international trade and enjoyed a good reputation among its customers. In 2018, we began to enter the domestic market. We are committed to creating value for customers with truly high-quality refrigeration equipment.
FAQ
Q2: Is a sample available?
A2: Yes, but the sample will be at your charge.
Q1: Are you a factory or a trading company?
A1: We are a factory.
Q3: What is the main market for your products?
A3: Our main market is in North America, Europe and Australian.
Q4: What is your warranty?
A4: We can assure you one year against manufacturing defect.
Q5:Can you provide OEM/ODM service and make OEM logo for us?
A5:Yes,we can provide OEM service and make OEM logo for you.
