Thin-layer Chromatography Silica Plate TLC Analytical Chromatography Silica Plate G / GF254-type Contain Fluorescent Substances

Thin-layer Chromatography Silica Plate TLC Analytical Chromatography Silica Plate G / GF254-type Contain Fluorescent Substances

FOB Reference Price: Get Latest Price

≥10 Boxes

US $12

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Material:: Glass

Coating thickness:: 0.20-0.25 mm

Activity:: Three colors separated

Adhesion:: The number of bubbles ≤ 2

Quick Details

Warranty:: 1 year

Brand Name:: JVLAB

Model Number:: J-TLP Series

Place of Origin:: Guangdong, China

Material:: Glass

Coating thickness:: 0.20-0.25 mm

Activity:: Three colors separated

Adhesion:: The number of bubbles ≤ 2

Product Overview

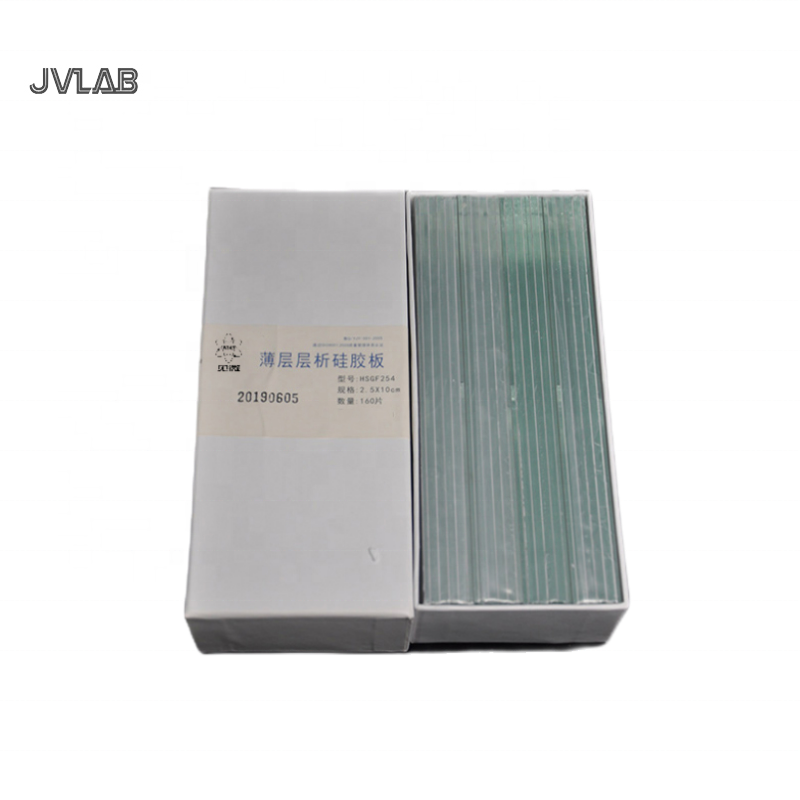

TLC Silica Plate

JVLAB TLC silica plate is made of high-quality thin-layer chromatography silica gel prepared with Dada adhesive
and spread on glass substrate. This product has specified volume, specific surface and pore distribution.

Application
It can be used directly for the rapid separation of many types of organic substances - qualitative or quantitative analysis. It
has been widely used in the identification of trace impurities and main components of medicines, pesticides, Chinese herbal medicines, organic chemical products, and grains and foods.

Features

1. The separation effect is good, and the number of plates is high.
2. The spot spot is small, which is convenient for serial analysis.
3. The separation time is short.
4. High sensitivity, clear spots, no diffusion

Products Description

Technical parameter

Coating thickness: 0.20-0.25 mm

Activity: three colors separated

Adhesion: the number of bubbles ≤ 2

Specifications:

25×75mm, 25×100mm, 30×100mm, 50×100mm, 50×150mm, 50×200mm, 100×100mm, 100×150mm, 100×200mm, 200×200mm

Note

1. The three-color separation in activity refers to dimethyl yellow, Sudan red, and indigo.
2. Adhesion force is limited to TLC G & GF254 type.

Storage

Store in a dry and ventilated place. Do not store it with volatile substances. After unpacking, the TLC silica gel sheet that
cannot be used up should be sealed immediately to avoid moisture absorption or adsorption of other chemical substances to affect the separation performance. The thin-layer silicone plate that has been stored for a long time or has absorbed moisture can be dried and activated at 60-90 ° C for 1-2 hours before use.

Product Paramenters

G - Type

GF254 - Type

Specification	Size (L*W)	Package	Type
J-TLP201	200×200 mm	10 pieces	G-type
J-TLP211	200×100 mm	10 pieces
J-TLP221	200×50 mm	20 pieces
J-TLP106	150×100 mm	10 pieces
J-TLP101	100×100 mm	20 pieces
J-TLP053	150×50 mm	20 pieces
J-TLP052	100×50 mm	40 pieces
J-TLP031	100×30 mm	60 pieces
J-TLP022	100×25 mm	80 pieces
J-TLP021	75×25 mm	80 pieces
J-TLP019	50×25 mm	80 pieces

Specification	Size (L*W)	Package	Type
J-TLP200	200×200 mm	10 pieces	GF254-type
J-TLP210	200×100 mm	10 pieces
J-TLP220	200×50 mm	20 pieces
J-TLP105	150×100 mm	10 pieces
J-TLP100	100×100 mm	20 pieces
J-TLP051	150×50 mm	20 pieces
J-TLP110	100×50 mm	40 pieces
J-TLP030	100×30 mm	60 pieces
J-TLP020	75×25 mm	80 pieces
J-TLP019	50×25 mm	80 pieces
