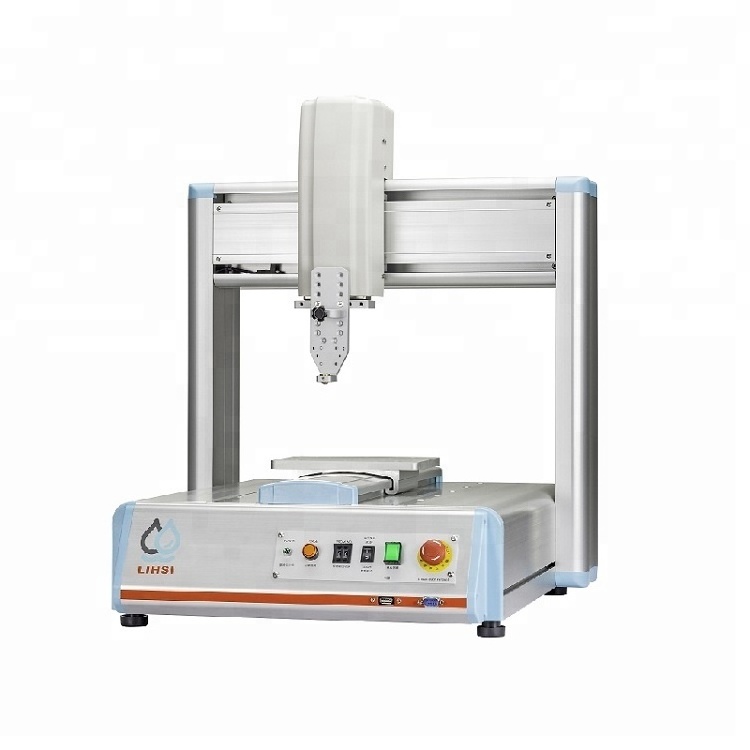

Quick Details
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Power:
-
400W
-
Hot Melt Glue Dispenser Repetitiveness:
-
±0.01mm/Axis
-
Hot Melt Glue Dispenser Transmission:
-
X/Y: Belt Z: Ballscrew
-
Hot Melt dispenser Load Capability XY/Z:
-
15kg / 10kg
-
Hot Melt dispenser X/Y/Z Working Range:
-
200*200*100mm / 300*300*100m/400*400*100mm/500*500*100mm
-
Hot Melt Glue Dispenser Drive System:
-
3 Phase stepper motor
-
Hot Melt Glue Dispenser Model Number:
-
LH-200T/LH-300T/LH-400T/LH-500T
-
Hot Melt Glue Dispenser Motor Function:
-
3 axis
-
Hot Melt Glue Dispenser Decompose:
-
0.01mm/axis
Quick Details
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
LI HSI
-
Model Number:
-
LH-200T/LH-300T/LH-400T/LH-500T
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Power:
-
400W
-
Hot Melt Glue Dispenser Repetitiveness:
-
±0.01mm/Axis
-
Hot Melt Glue Dispenser Transmission:
-
X/Y: Belt Z: Ballscrew
-
Hot Melt dispenser Load Capability XY/Z:
-
15kg / 10kg
-
Hot Melt dispenser X/Y/Z Working Range:
-
200*200*100mm / 300*300*100m/400*400*100mm/500*500*100mm
-
Hot Melt Glue Dispenser Drive System:
-
3 Phase stepper motor
-
Hot Melt Glue Dispenser Model Number:
-
LH-200T/LH-300T/LH-400T/LH-500T
-
Hot Melt Glue Dispenser Motor Function:
-
3 axis
-
Hot Melt Glue Dispenser Decompose:
-
0.01mm/axis
|
(Models) |
LH-200T |
LH-300T |
LH-400T |
LH-500T |
|
|
Working Range X/Y/Z(mm) |
200 / 200 / 100 |
300 / 300 / 100 |
400 / 400 / 100 |
500/500/100 |
|
|
Load Y-AXIS / Z-AXIS |
15 kg / 10 kg |
||||
|
X&Y / Z (mm/sec) Hot Melt Glue Dispenser |
0.1~800 / 500 |
||||
|
Resolution Hot Melt Glue Dispenser |
0.01 mm/Axis |
||||
|
Repetitive Positioning Accuracy |
+/- 0.02 mm/ Axis |
||||
|
Program Capacity Hot Melt Glue Dispenser |
at least100set,4000 points per set |
||||
|
Data Storage Type Hot Melt Glue Dispenser |
USB Disk |
||||
|
Program Display Hot Melt Glue Dispenser |
Teach Pendant LCD |
||||
|
Motor System Hot Melt Glue Dispenser |
Precision Motor |
||||
|
Control Method Hot Melt Glue Dispenser |
PTP & CP |
||||
|
Interpolation Function |
3 axis ( 3D ) |
||||
|
Programming Method |
Teach Pendant / PC |
||||
|
/O Signals Port Hot Melt Glue Dispenser |
10 Inputs / 10 Outputs |
||||
|
External Control Interface |
Ethernet |
||||
|
Power Supply Hot Melt Glue Dispenser |
AC110 ~ 220V 600W |
||||
|
Working Temperature |
-10 – 50 °C |
||||
|
Working Relative Humidity |
20 – 90% no condensation |
||||
|
Dimensions (WxDxH mm) |
490/450/660 |
590/550/660 |
690/650/660 |
790/750/660 |
|
|
Robot Weight (kg) |
37 kg |
45 kg |
50 kg |
55 kg |
|
Customized packing request available depends on order quantity.
