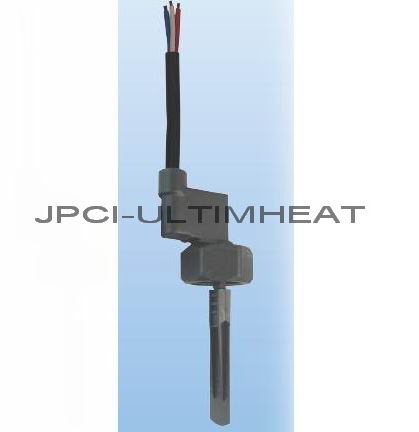

Type R1B micro-switch contact water flow detection Paddle flow switches

Nominal diameter: Can be used on 20 to 63 mm internal diameter pipes

The paddle is cleavable and can be cut at various lengths upon pipe diameter. There are cutting lines numbered 1 to 9 every 5mm.

Recommended mounting position: Vertical, with paddle downside. Other positions are possible with a change in the calibration value related to the paddle weight. .

Water pipe connection: Supplied with a fiber glass reinforced PA66G3/4”(BSPP) union nut and NBR gasket. Must be used on a BSPP3/4 male fitting perpendicular to the main pipe.

Recommended torque: 7Nm.

Version for snap-in mounting (see accessories) has no nut

Liquids temperature range: 5 to 80°C

Ambient temperature range: 5 to 50°C

Ingress protection: IP65

Electrical connection: 3 x 0.75 mm² cable, PVC insulation, T80°, style H05VVF.

Installation instructions:

- Check carefully the paddle orientation: The arrow on housing must be exactly parallel to the pipe

- A 5 mm minimum gap must be respected between end of the paddle and tube wall opposite to the 3/4” fitting.

- We recommend the use of nozzles of length less than or equal to 18mm between the gasket seat and the inside of the tube and with an inner diameter greater than or equal to 14mm, to avoid blocking of the paddle.

Accessories: 3/4” PVC saddles forDN40 to DN100 (OD) PVC pipes, and other fittings: see last section of this catalogue

Options:

- Cable with connector or terminals, other cable length, nickel plated brass nut.
