1, the use of reinforced chassis, strong and reliable, power output shaft shifting and gearbox sub-shifting with the shifting sleeve shifting, shifting easier.
2. The mud water sealing performance is superior, which is very suitable for paddy field operations.
3. The hydraulic lifting system is individually adjusted to better suit various job requirements. Supporting agricultural machinery can be used for ploughing, rotary tillage, beating, trenching, hoeing, sowing, cultivating, harvesting, smashing, trailers, etc.
4. It can also be used as a power source for pumping and threshing, and is suitable for medium and large plots.
5. We can add other equipment according to customer's requirements.
- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
1500 KG
-
Engine Model:
-
LD385
-
track:
-
1200mm
-
wheel base:
-
1650mm
-
front tyre:
-
6.00-16
-
rear tyre:
-
9.5-24
-
min ground clearance::
-
218mm
-
PTO:
-
540/720
-
Product name:
-
25HP 4WD tractor
-
engine Type:
-
3-cylinder, vertical, water cooled, 4 stoke
Quick Details
-
Brand Name:
-
HIGHTOP
-
Place of Origin:
-
China
-
Marketing Type:
-
Hot Product 2020
-
Weight:
-
1500 KG
-
Engine Model:
-
LD385
-
track:
-
1200mm
-
wheel base:
-
1650mm
-
front tyre:
-
6.00-16
-
rear tyre:
-
9.5-24
-
min ground clearance::
-
218mm
-
PTO:
-
540/720
-
Product name:
-
25HP 4WD tractor
-
engine Type:
-
3-cylinder, vertical, water cooled, 4 stoke
Product Description

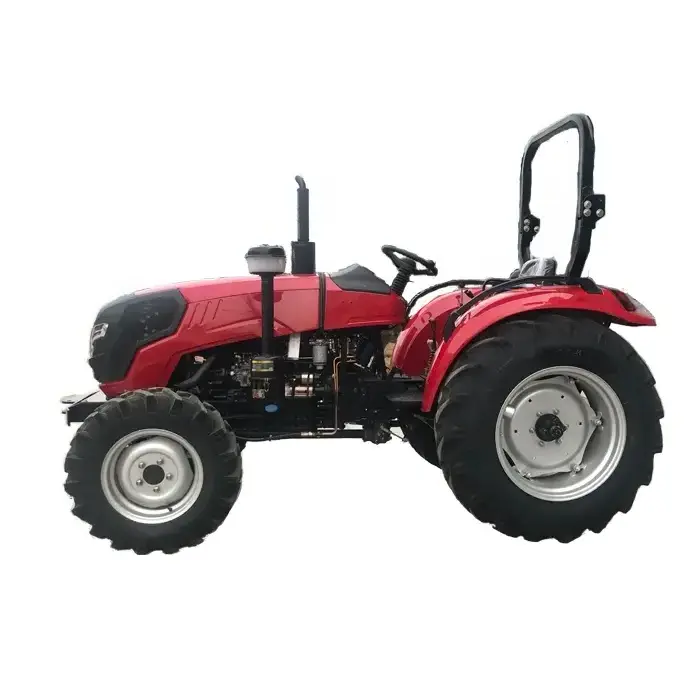

Hot Sale Multi-functional and multi-purpose mini farm tractor
Specification
|
item
|
|
unit
|
design value
|
|
||
|
machine |
Model
|
/
|
SXY254/304
|
SXY250/300
|
||
|
|
Type
|
/
|
4*4
|
4*2
|
||
|
|
Using
|
/
|
Farm work, transportation
|
|
||
|
|
Length*width*height
|
mm
|
2300*1180*1300
|
2795*1180*1300
|
||
|
|
Wheel Base
|
mm
|
1200
|
1200
|
||
|
|
Adjustment method of wheelbase
|
/
|
Non adjustable
|
|
||
|
|
Min.Ground Clearance
|
mm
|
310
|
220
|
||
|
|
Minimum use quality
|
KG
|
935
|
935
|
||
|
|
Mass of front axle/rear axle (without counterweight)
|
KG
|
405/530
|
|
||
|
|
Gear(Forward/retreat)
|
/
|
6/1
|
6/1
|
||
|
|
Theoretical speed of each gear
|
Km/h
|
Forward:low1:1.88/low2:4.37/low3:5.89 high1:6.95/high2:13.74/high3:21.83 retreat:4.5
|
|
||
|
|
Connection mode of engine and clutch
|
/
|
Direct connection
|
|
||
|
|
Starting system
|
/
|
Electric start
|
|
||
|
|
Power output shaft power
|
KW
|
≥18.8
|
|
||
|
|
Maximum traction
|
KN
|
≥5.9
|
|
||
|
Engine
|
Brand
|
/
|
Laidong
|
|
||
|
|
Model
|
/
|
Straight line Vertical Water Cooledand 4-stroke
|
|
||
|
|
Type
|
/
|
3TE30
|
|
||
|
|
Aspiration
|
/
|
Natural inspiratory
|
|
||
|
|
Cylinders
|
/
|
4
|
|
||
|
|
Displacement
|
L
|
1.909
|
|
||
|
|
reduction ratio
|
|
18:1
|
|
||
|
|
Rated Power
|
KW
|
18.37/22.1
|
|
||
|
|
Rated Rev
|
r/min
|
2350
|
|
||
|
|
Fuel pump model/type
|
/
|
VE3/10E1175RLDO03 Single action plunger
|
|
||
|
|
Air filter model/type
|
/
|
Oil bath TF500
|
|
||
|
|
Type of cooling system
|
/
|
Forced water cooling
|
|
||
|
|
Steering system type
|
/
|
Full hydraulic steering
|
|
||
|
|
Clutch type
|
/
|
Single-Chip, dry-type, Single action ,Often combined
|
|
||
|
|
Suspension type
|
/
|
Postposition,three point suspension
|
|
||
|
|
Number of output keys of power output shaft
|
/
|
6
|
|
||
|
|
Hydraulic output device
|
/
|
Simple hydraulic output
|
|
||
|
|
Tire type
|
/
|
/400-14/6.00-12/7.50-16
|
|
||
|
|
Power output shaft speed
|
r/min
|
Single speed 540/720
|
|
||
TY chassis
Greenhouse chassis
Details Images
