Quick Details
-
Voltage:
-
220V/380V
-
Power:
-
15kw
-
Dimension(L*W*H):
-
1250*600*850mm
-
Weight:
-
360 kg
-
Warranty:
-
12 Months
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
hop pelletizer machine for sale
-
Application:
-
poultry farm,cattle,dog,sheep,pig,chicken,etc
-
Raw material:
-
soybean,maize,rice,etc
-
Capacity:
-
300-500kg/h
-
Function:
-
Producing Animal Feeds Pellets
-
Color:
-
Customer's Request
-
Material:
-
Durable Carbon Steel
-
pellet size:
-
4,6,8,10mm
-
heart parts:
-
flat die and rollers
-
Motor:
-
Chinese Brand
-
Certification:
-
CE ISO SGS
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HENGYI
-
Model Number:
-
KL-260
-
Voltage:
-
220V/380V
-
Power:
-
15kw
-
Dimension(L*W*H):
-
1250*600*850mm
-
Weight:
-
360 kg
-
Warranty:
-
12 Months
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
hop pelletizer machine for sale
-
Application:
-
poultry farm,cattle,dog,sheep,pig,chicken,etc
-
Raw material:
-
soybean,maize,rice,etc
-
Capacity:
-
300-500kg/h
-
Function:
-
Producing Animal Feeds Pellets
-
Color:
-
Customer's Request
-
Material:
-
Durable Carbon Steel
-
pellet size:
-
4,6,8,10mm
-
heart parts:
-
flat die and rollers
-
Motor:
-
Chinese Brand
-
Certification:
-
CE ISO SGS

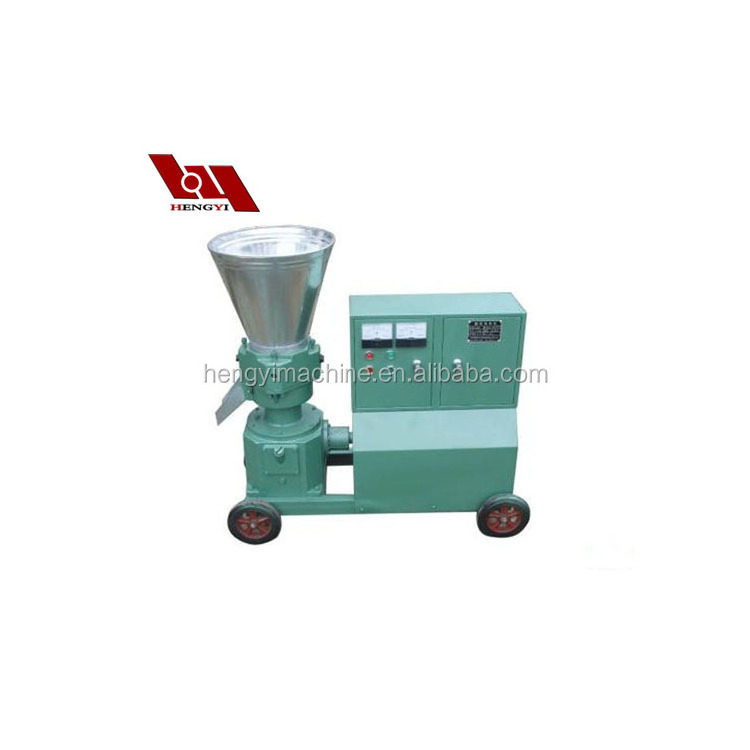

Simple introduction of feed pellet making machine
KL series feed pellet making machine is mainly used for proudce the feed pellet for animal, cattle, poultry and sheep. the material to produce feed pellet can be corn, soybean, straw, grass, sawdust, straw, rice husk,etc. it has the advantage of conveinet for stock, good qualiy, and so on.
Techinical Parameter
| Model | Capacity | Power | Voltage | Mould Dia | Pellet Size | Weight |
| KL-120 | 75-100KG/H | 3KW | 380V | 120MM | 2-12MM | 95KG |
| KL-150 | 120-160KG/H | 5.5KW | 380V | 149MM | 2-12MM | 120KG |
| KL-200 | 200-300KG/H | 11KW | 380V | 248MM | 2-12MM | 220KG |
| KL-260 | 400-600KG/H | 15KW | 380V | 258MM | 4-14MM | 360KG |
| KL-300 | 600-800KG/H | 22KW | 380V | 298MM | 4-14MM | 450KG |
Raw Materials
Pellet as animal feed,raw materials:soybean meal,corn,straw,green fodder,meat and bone maeal,whey powder,fish meal,alfafa,grass,leaves ,etc,the moisture should be 12%-20%.
Final Pellets
The size of fished animal feed pellets has various choices: 2,4, 6, 8, 10, 12mm, or other customized diameter.
Application
Widely used in large, medium and small aquaculture, grain feed processing plant, animal farms, poultry farms etc.
working principle of hop pelletizer machine for sale
1.It can process the oil cake and other mixed waste material to granule at one time. And it is columned granule feed and have slippery firm.
2. During the process of producing granule, the temperature can almost reach 70 to 80 centigrade. It can make flour into paste. The inner granule is cooked and fully penetrated, so that not easy to go moldy and degenerative. Then it can be stored for a long time and improve poultry dainty and assimilation function
Main Features
1. Simple structure, wide adaptability, cover an area of an area small, low noise.
2. Powder feed, grass meal doesn't need to, or with a little liquid can be added for granulation, so basic to the moisture content of grain feed granulating before the moisture content of materials, more conducive to storage
3. Dry processing, the production of feed particle high hardness, smooth surface, internal curing, can improve the digestion and absorption of nutrients
4. Pellet forming process can make the resistance factor pancreatic enzyme denaturation of grains, beans, reduce the adverse effects on the digestive, can kill all kinds of parasites and other pathogenic microorganisms eggs, reduce all kinds of insect and diseases of the digestive system.
Spare Parts
The production line include (1)crusher&mixer (2)screw conveyor (3) hop pelletizer machine for sale
Screw conveyor
| Model | Power | Voltage | Length | Weight | |
| LX-1625 | 1.5KW | 380V | 0.165*2.8M | 200KG |
Crusher & Mixer
| Model | Power | Capacity | Size | Weight | |
| FJ-500 | 7.5+3KW | 0.75-1T/H | 2*1.5*2.4M | 350KG |
Package: standard package by plywood, make sure the wood case hard, not easy damaged during shipping on sea
Shipping: generally shipping by sea, if customer need it urgently, also can shipping by air.
1. The TM is avaliable for 12 hours in a day and will reply you within 12 hours if you have any inquiry about our products.
2. We provide 1 year guarantee.
3. We provide english manual and video for installation and operation.
4. We can send technicians for installation and training if needed.
