Quick Details
-
Brand Name:
-
TPLK
-
Use:
-
FTTH Network
-
Warranty Time:
-
1year
-
Wavelength:
-
1310/1550/1625nm
-
Certification:
-
RoHS FCC CE
Quick Details
-
Type:
-
Fiber optic tester, FTTX
-
Model Number:
-
FLS-600-A-02
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TPLK
-
Use:
-
FTTH Network
-
Warranty Time:
-
1year
-
Wavelength:
-
1310/1550/1625nm
-
Certification:
-
RoHS FCC CE
Product Description
Feature
* One year warranty for low cost of ownership
* Error-free, time-saving test features
* Controlled multimode launching output
* EF Ready: use with external launch mode conditioner for EFcompliant multimode results

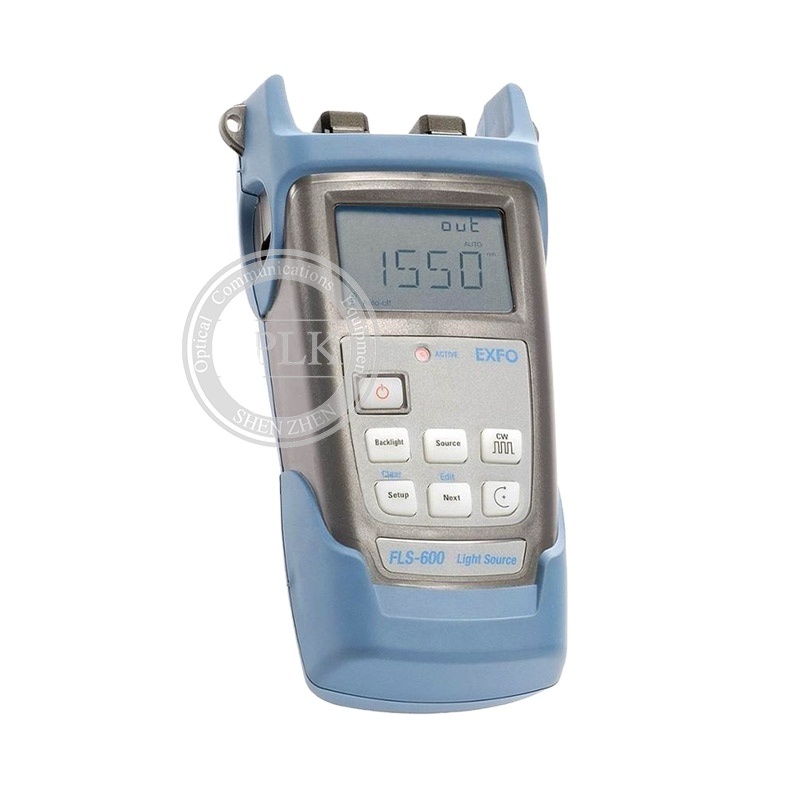

Part of EXFO is 600 handheld series, the FLS-600 Light Source is designed for first-class versatility. Choose among laser or LED models and various wavelength options. What’s more, you can save time by building a list of your “favorite” wavelengths and only sweeping through them when testing.
|
Model
|
12D
|
23BL
|
234BL
|
235BL
|
|
Wavelength
|
850/1300
|
1310/1550nm
|
1310/1550
1625nm |
1310/1550nm
1490nm |
|
Spectral Width
(nm) |
50/135
|
≤5
|
≤5
|
≤5
|
|
Output power
(dBm) |
≥-20
≥-20 |
≥1
≥1 |
≥1
≥-3/≥-5 |
≥1
≥-4.5/≥-3 |
|
Power Stability
(dB) |
±0.10
|
±0.10
|
±0.10
|
±0.10
|
|
Auto-Switching
|
yes
|
yes
|
yes
|
yes
|
|
Tone Generation (Hz)
|
270,1k, 2k
|
270,1k, 2k
|
270,1k, 2k
|
270,1k, 2k
|
|
Warranty(Year)
|
1
|
1
|
1
|
1
|
