Quick Details
-
Model Number:
-
1inch to 4 inch, DN25 to DN100
-
Brand Name:
-
COMPASS
-
Standard:
-
SMS, DIN, 3A
-
Material Quality:
-
SS304 (1.4301), SS316L (1.4404)
-
Size:
-
1inch to 4 inch,DN25 to DN100
-
Connection:
-
Butt-weld, Tri-clamp, Male Thread, Female-Male Threaded
-
Seal Material:
-
Silicone, EPDM, FKM, Buna, PTFE.
-
Power Option:
-
Manual, Pneumatic, Manual-Pneumatic
-
Working Pressure:
-
≤12bar(174psi)
-
Supply Pressure for Air Actuator:
-
5~8 (72.52psi~116psi)
-
External Surface Treatment:
-
Ra32~64uin (0.8~1.6um)
Quick Details
-
Port Size:
-
1inch to 4 inch,DN25 to DN100
-
Warranty:
-
1 year
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
1inch to 4 inch, DN25 to DN100
-
Brand Name:
-
COMPASS
-
Standard:
-
SMS, DIN, 3A
-
Material Quality:
-
SS304 (1.4301), SS316L (1.4404)
-
Size:
-
1inch to 4 inch,DN25 to DN100
-
Connection:
-
Butt-weld, Tri-clamp, Male Thread, Female-Male Threaded
-
Seal Material:
-
Silicone, EPDM, FKM, Buna, PTFE.
-
Power Option:
-
Manual, Pneumatic, Manual-Pneumatic
-
Working Pressure:
-
≤12bar(174psi)
-
Supply Pressure for Air Actuator:
-
5~8 (72.52psi~116psi)
-
External Surface Treatment:
-
Ra32~64uin (0.8~1.6um)
Product Description

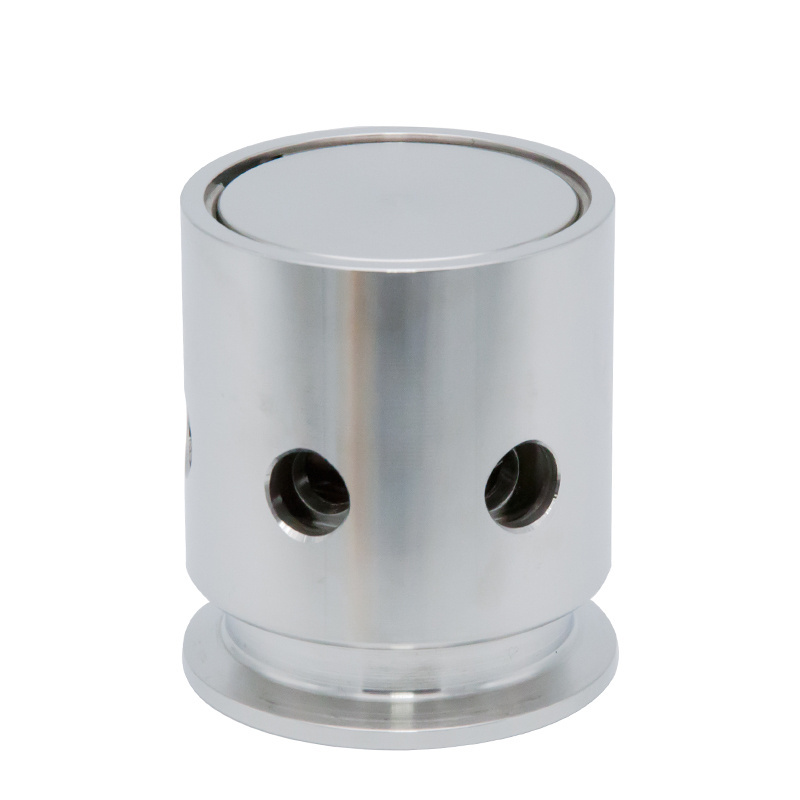

3 bar SS304 Stainless Steel fixed vacuum clamp pressure relief Valves
Sanitary safety valve is the sanitary stainless steel valve, its safety design make it protect the equipment, so it installed in the return circuit of discharge pressure, it’s good for safety protect function in pipeline, pump, device, storage tank. Extensively applied to food, beverage, dairy, beer industry, etc.
Specification
|
Standard
|
SMS,DIN,3A
|
|
|
|
Material Contact Parts
|
SS304/SS316L(1.4301/1.4404)
|
Provided with material inspection report
|
|
|
|
SS304(1.4301)
|
|
|
|
Size
|
1” to 4”，DN25 to DN100
|
|
|
|
Connection
|
Butt-weld,Tri-clamp,Male Thread,Female-Male Threaded,Union,Weld-Thread,Flange
|
|
|
|
Seal Material
|
Silicone,EPDM,FKM,Buna,PTFE.All seals material comply with FDA21CFR117.2600
|
|
|
|
Media
|
Liquid,Gas
|
Female Threaded, Socket, Welded, Flange
|
|
|
Power Option
|
Manual,Pneumatic,Manual-Pneumatic
|
Hose barb, TC
|
|
|
Working Pressure
|
≤12bar(174psi)
|
|
|
|
Supply Pressure for Air Actuator
|
5~8(72.52psi~116psi)
|
|
|
|
External Surface Treatment
|
Ra32~64uin(0.8~1.6um)
|
|
|
|
Internal Surface Treatment
|
Ra16~32uin(0.4~0.8um)
|
|
|
Technical Specifications
Max. pressure: ≤12bar(174psi)
Min. pressure: 0.2bar(2.9psi)
Temperature range：
Domestic Silicone：-22 ~ 302°F (-30~150℃)
Domestic EPDM：14 ~ 230°F (-10~110℃)
Importing Silicone：-40 ~ 392°F (-40~200℃)
Importing EPDM：-13~ 266°F (-25~130℃)
Buna：5~ 212°F (-15~100℃)
PTFE：-22~ 356°F (-30℃~180℃)
FKM：14 ~ 392°F (-10℃~200℃ )
Options
1.The gasket can be Silicone,EPDM,FKM,Buna,PTFE. All seals material comply with FDA21CFR117.2600
2.Connection can be Butt-weld,Tri-clamp,Male Thread,Female-Male Threaded,Union,Weld-Thread,Flange
or others upon request.
3.Power Option can be Manual,Pneumatic,Manual
Pneumatic
4.Pressure Range: Changing Spring
5.Available in sizes from 1”to 4”，DN25 to DN100
Operating Principle
Under normal operating conditions, the valve remains closed.The specific pressure is set by adjusting the spring with the pressure nut.
When the pressure in the pipes is above the specific pressure, the valve becomes open automatically to make the liquid pass over in order to reduce the pressure in the pipes.
The Valve can be with handle in order to realize partial open. When the handle remains open on the operation spot, the detergent can flow though the flow valves.
Design Features
1.Featuring Simple Structure,Attractive Appearance,Quick Pressure Adjustment,
Convenient Maintainance
2.Adjutable Pressure Control,Random Adjustment in Full Range
3.Acid-proof Stainless Steel Valve Body,Bright and Clean Surface,Food Rubber Seat,The Product Meet Sanitary Requirement.
4. Pay Attention to Liquid Input Direction, Reversal Input Forbidden.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
If small order and choose by express , the items are packed by shrink wrap and secondly carton cases.
If heavy weight of cargos,which be packed by strongly seaworthy plywooden cases .
In order to protective items , which will be packed by safety and resistance to shock in plywooden cases .
.
