Quick Details
-
Brand Name:
-
KAIFU
-
Model Number:
-
S51104
-
Place of Origin:
-
China
-
Height:
-
10 mm
-
Sample:
-
Acceptable
-
Material:
-
Chrome Steel
-
Service:
-
OEM
-
CLEARANCE:
-
C0,C2,C3,C4,C5
-
Quality standard:
-
ISO9001:2008
-
Market:
-
Asia,Europe,America,Africa
-
Stock:
-
Yes
Quick Details
-
Precision Rating:
-
P0 P6 P5 P4 P2
-
Seals Type:
-
Open
-
Number of Row:
-
Single row
-
Brand Name:
-
KAIFU
-
Model Number:
-
S51104
-
Place of Origin:
-
China
-
Height:
-
10 mm
-
Sample:
-
Acceptable
-
Material:
-
Chrome Steel
-
Service:
-
OEM
-
CLEARANCE:
-
C0,C2,C3,C4,C5
-
Quality standard:
-
ISO9001:2008
-
Market:
-
Asia,Europe,America,Africa
-
Stock:
-
Yes

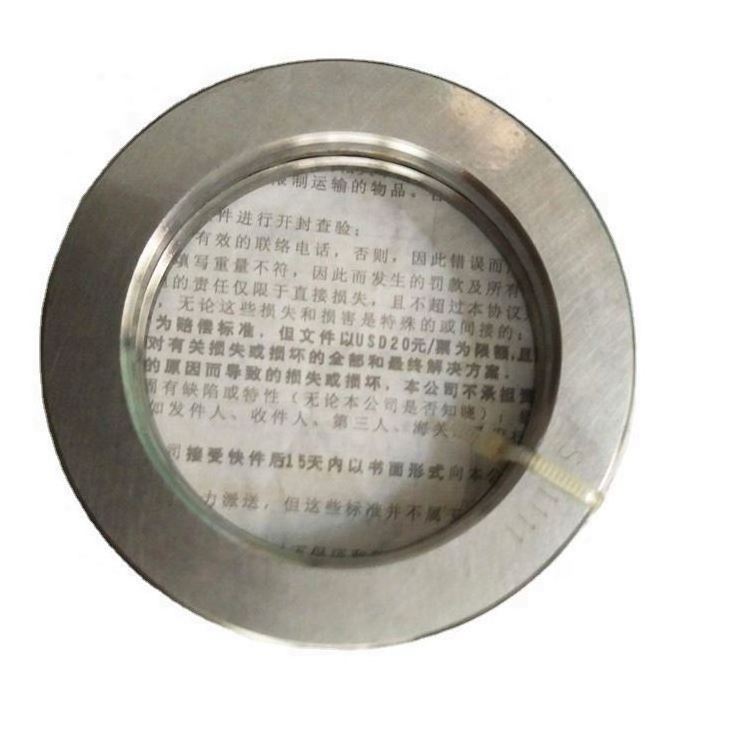

Thrust ball bearing S51104
Product Description
| Tpye | d | D | B | Mass (kg) | |
| (mm) | ZrO2 | Si3N4 | |||
| SS51100 | 10 | 24 | 9 | 0.015 | 0.0078 |
| SS51200 | 10 | 26 | 11 | 0.022 | 0.011 |
| SS51101 | 12 | 26 | 9 | 0.016 | 0.009 |
| SS51201 | 12 | 28 | 11 | 0.024 | 0.013 |
| SS51102 | 15 | 28 | 9 | 0.018 | 0.0094 |
| SS51202 | 15 | 32 | 12 | 0.033 | 0.018 |
| SS51103 | 17 | 30 | 9 | 0.019 | 0.01 |
| SS51203 | 17 | 35 | 12 | 0.038 | 0.021 |
| SS51104 | 20 | 35 | 10 | 0.028 | 0.015 |
| SS51204 | 20 | 40 | 14 | 0.059 | 0.032 |
| SS51105 | 25 | 42 | 11 | 0.043 | 0.023 |
| SS51205 | 25 | 47 | 15 | 0.085 | 0.046 |
| SS51106 | 30 | 47 | 11 | 0.049 | 0.026 |
| SS51206 | 30 | 52 | 16 | 0.11 | 0.056 |
| SS51107 | 35 | 52 | 12 | 0.062 | 0.033 |
| SS51207 | 35 | 62 | 18 | 0.16 | 0.086 |
| SS51108 | 40 | 60 | 13 | 0.092 | 0.049 |
| SS51208 | 40 | 68 | 19 | 0.21 | 0.11 |
| SS51109 | 45 | 65 | 14 | 0.11 | 0.059 |
| SS51209 | 45 | 73 | 20 | 0.24 | 0.13 |
| SS51110 | 50 | 70 | 14 | 0.12 | 0.063 |
| SS51210 | 50 | 78 | 22 | 0.29 | 0.16 |
| SS51111 | 55 | 78 | 16 | 0.17 | 0.093 |
| SS51211 | 55 | 90 | 25 | 0.46 | 0.25 |
| SS51112 | 60 | 85 | 17 | 0.22 | 0.12 |
| SS51212 | 60 | 95 | 26 | 0.52 | 0.28 |
| SS51113 | 65 | 90 | 18 | 0.25 | 0.13 |
| SS51213 | 65 | 100 | 27 | 0.58 | 0.31 |
| SS51114 | 70 | 95 | 18 | 0.27 | 0.14 |
| SS51214 | 70 | 105 | 27 | 0.61 | 0.33 |
| SS51115 | 75 | 100 | 19 | 0.3 | 0.16 |
| SS51215 | 75 | 110 | 27 | 0.65 | 0.35 |
| SS51116 | 80 | 105 | 19 | 0.32 | 0.17 |
| SS51216 | 80 | 115 | 28 | 0.72 | 0.38 |
| SS51117 | 85 | 110 | 19 | 0.34 | 0.18 |
| SS51217 | 85 | 125 | 31 | 0.94 | 0.5 |
| SS51118 | 90 | 120 | 22 | 0.5 | 0.27 |
| SS51218 | 90 | 135 | 35 | 1.3 | 0.69 |
| SS51120 | 100 | 135 | 25 | 0.74 | 0.39 |
| SS51220 | 100 | 150 | 38 | 1.73 | 0.92 |
| SS51122 | 110 | 145 | 25 | 0.8 | 0.43 |
| SS51124 | 120 | 155 | 25 | 0.86 | 0.46 |
