Quick Details
-
Board Size:
-
other
-
Model Number:
-
Customized
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jing Hon
-
Copper Thickness:
-
1oz
-
Min. Hole Size:
-
0.10mm
-
Min. Line Width:
-
0.10mm
-
Min. Line Spacing:
-
0.1mm4mil)
-
Surface Finishing:
-
HASL/LF HASL/ENIG
-
Product name:
-

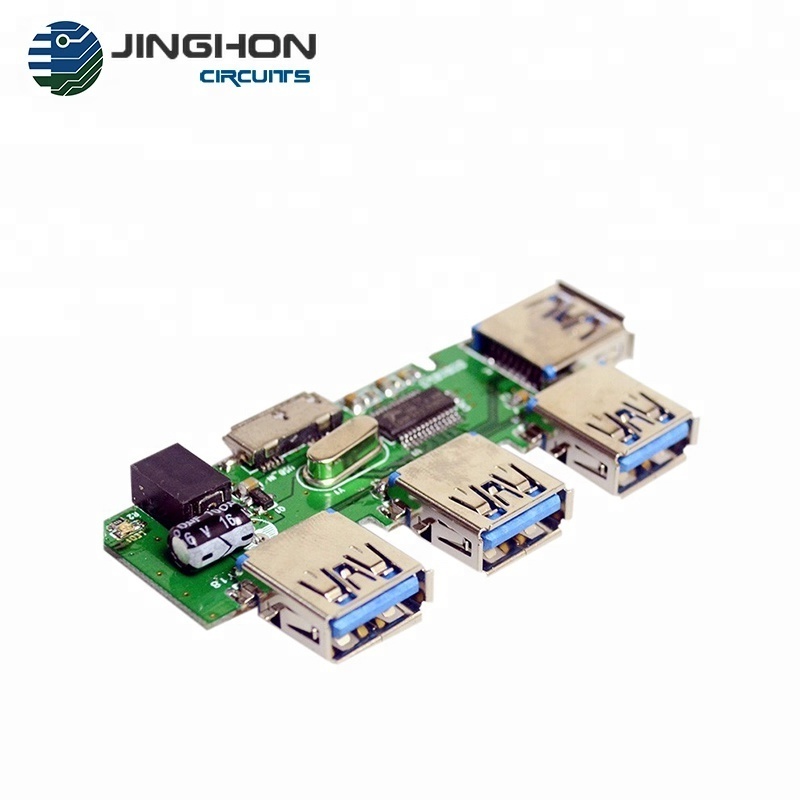

usb hub circuit board
-
Way of shipping:
-
EMS/UPS/DHL/Fedex
-
Solder mask color:
-
green
-
Package:
-
vacuum package/ESD package
-
Samples order:
-
welcome
-
Application:
-
consumer electronics
-
Service:
-
EMS.ODM.OEM
-
Certificate:
-
ISO/RoHS/TS16949
-
PCB Item:
-
PCB assembly service
-
delivery time:
-
7-10days
Quick Details
-
Number of Layers:
-
2-Layers
-
Base Material:
-
FR4
-
Board Thickness:
-
1.6mm
-
Board Size:
-
other
-
Model Number:
-
Customized
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jing Hon
-
Copper Thickness:
-
1oz
-
Min. Hole Size:
-
0.10mm
-
Min. Line Width:
-
0.10mm
-
Min. Line Spacing:
-
0.1mm4mil)
-
Surface Finishing:
-
HASL/LF HASL/ENIG
-
Product name:
-
usb hub circuit board
-
Way of shipping:
-
EMS/UPS/DHL/Fedex
-
Solder mask color:
-
green
-
Package:
-
vacuum package/ESD package
-
Samples order:
-
welcome
-
Application:
-
consumer electronics
-
Service:
-
EMS.ODM.OEM
-
Certificate:
-
ISO/RoHS/TS16949
-
PCB Item:
-
PCB assembly service
-
delivery time:
-
7-10days
PCB Production Capacity:
|
PCB Item
|
Standard
|
Advanced
|
|
|
Layer Counts:
|
1L--10L, HDI
|
10L-18L,HDI
|
|
|
Base Material:
|
CAM1,FR4,F4BK,Arlon
|
|
|
|
Material Suppliers:
|
GUOJI(GDM), KINGBOARD(KB), SHENGYI,Arlon
|
|
|
|
Material Thickness(mm):
|
0.40, 0.60, 0.80, 1.00, 1.20, 1.50, 1.60, 2.0, 2.4, 3.2
|
|
|
|
Max board size(mm):
|
1200x400mm
|
1200x500mm
|
|
|
Board Outline Tolerance:
|
±0.15mm
|
±0.01mm
|
|
|
Board Thickness:
|
0.4mm--3.2mm
|
0.3mm----3.2mm
|
|
|
Thickness Tolerance:
|
±8%
|
±5%
|
|
|
Minimum line/space:
|
0.1mm
|
|
|
|
Mini Hole Size(mechanical):
|
0.2mm
|
|
|
|
Innerlayer Copper Weight:
|
0.1mm
|
|
|
|
Innerlayer Copper Weight:
|
17um--105um
|
|
|
|
Outlayer Copper Weight:
|
17um--105um
|
|
|
|
Mini Solder Mask Bridge:
|
0.05mm
|
|
|
|
Impedance Control Tolerance:
|
±10%
|
|
|
|
Contours:
|
Scored, Routed, Punched
|
|
|
|
Surface Finishing:
|
HAL,lead-free HAL,ENIG,Plated Gold,Immersion Silver,OSP
|
|
|
|
1--2L Lead Time:
|
3-7 days
|
|
|
|
4--18L Lead Time:
|
7-10 days
|
|
|
|
Acceptable File Format:
|
Gerber file,Powerpcb,CAD,AUTOCAD,ORCAD,P-CAD,CAM-350,CAM2000
|
|
|
|
Quality Standards:
|
IPC-A-600H Class2
|
|
|
|
Certificate:
|
ISO9001:2008,PCB Assembly Capability
|
|
|
PCB Assembly Capability:
|
Stencil Size:
|
736x736mm
|
|
Minimum IC Pitch:
|
0.2mm
|
|
Maximum PCB size:
|
1200x 500mm
|
|
Minimum PCB thickness:
|
0.25mm
|
|
Minimum chip size:
|
0201 (0.2x0.1)/0603 (0.6 x 0.3mm)
|
|
Maximum BGA size:
|
74x74mm
|
|
BGA ball pitch:
|
1.00mm (minimum), 3.00mm (maximum)
|
|
BGA ball diameter:
|
0.40mm (minimum), 1.00mm (maximum)
|
|
QFP lead pitch:
|
0.38mm (minimum), 2.54mm (maximum)
|
|
Volume:
|
One piece to low volume production quantities
Low cost first article builds Schedule deliveries |
|
|
Surface mount(SMT) assembly
DIP assembly Mixed(surface mount and through hole) technology Single or double sided placement Cable assembly |
|
|
Passive components:
As small as 0402 package As small as 0201 with design review Ball Grid Arrays(BGA): As small as .5mm pitch |
|
|
Turnkey(we supply the parts)
Consigned(you supply the parts) You supply some parts, we do the rest |
|
Solder type:
|
Leaded
Lead-free/ROHS compliant |
|
Other capabilities:
|
Repair/rework services
Mechanical assembly Box build Mold and plastic injection. |
