25KW High frequency induction heating welding machine metal welding machine stainless steel welding machine

25KW High frequency induction heating welding machine metal welding machine stainless steel welding machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $675

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Work frequency:: 30-100KHZ

Power factor:: ≥95

Temperature of cooling water:: ≤ 40°C

Cooling water Pressure:: 0.06Mpa-0.12Mpa

Cooling watering flow:: 7.3L/min

Input voltage:: Single-phase 220V 50HZ or 60HZ

Model:: BW-GP-25

Business type:: manufacturer

Quick Details

Place of Origin:: China

Output power:: 25KW

Out current:: 200-1050A

Work frequency:: 30-100KHZ

Power factor:: ≥95

Temperature of cooling water:: ≤ 40°C

Cooling water Pressure:: 0.06Mpa-0.12Mpa

Cooling watering flow:: 7.3L/min

Input voltage:: Single-phase 220V 50HZ or 60HZ

Model:: BW-GP-25

Business type:: manufacturer

Product Descriprion:

High frequency welding machine

Our high frequency welding machine uses a series resonant circuit, low-voltage, high-current, high-frequency power by high-frequency transformer output resonance; equipment for my company's first generation products, using MOSFET power devices and our first-generation variable flow control technology, equipmentvery simple structure, high reliability, easy maintenance, low maintenance, customer, and is currently the most widely used one of the devices.

Features of our high frequency welding machine:

1.Under the same conditions, the effect of high-frequency power-saving double than traditional tubes.

2.Design with a 100% load, continuously 24 hours a day, can be equipped with infrared temperature measurement, automatic temperature control, improve the heating quality and simplify the manual operation.

3.With over-current, over-voltage, under-water, phase failure, load discomfort state, the provision of higher reliability and durability.

Specifications of our high frequency welding machine:

The main technical parameters
Parameters	Numerical
Input voltage	Single-phase 220V 50HZ or 60HZ
Output power	25kw
Out current	200-1050A
Work frequency	30-100KHZ
Rated duty cycle	100%
Power factor	≥ 95
Temperature of cooling water	≤ 40°C
Cooling water Pressure	0.06Mpa-0.12Mpa
Cooling watering flow	7.3L/min
Machine Dimension	560×220×505mm
Machine Weigh	28KG

Other specifications can be customized according to buyer's demands.

Before purchasing the machine, please provide the specifications of the welding workpieces.

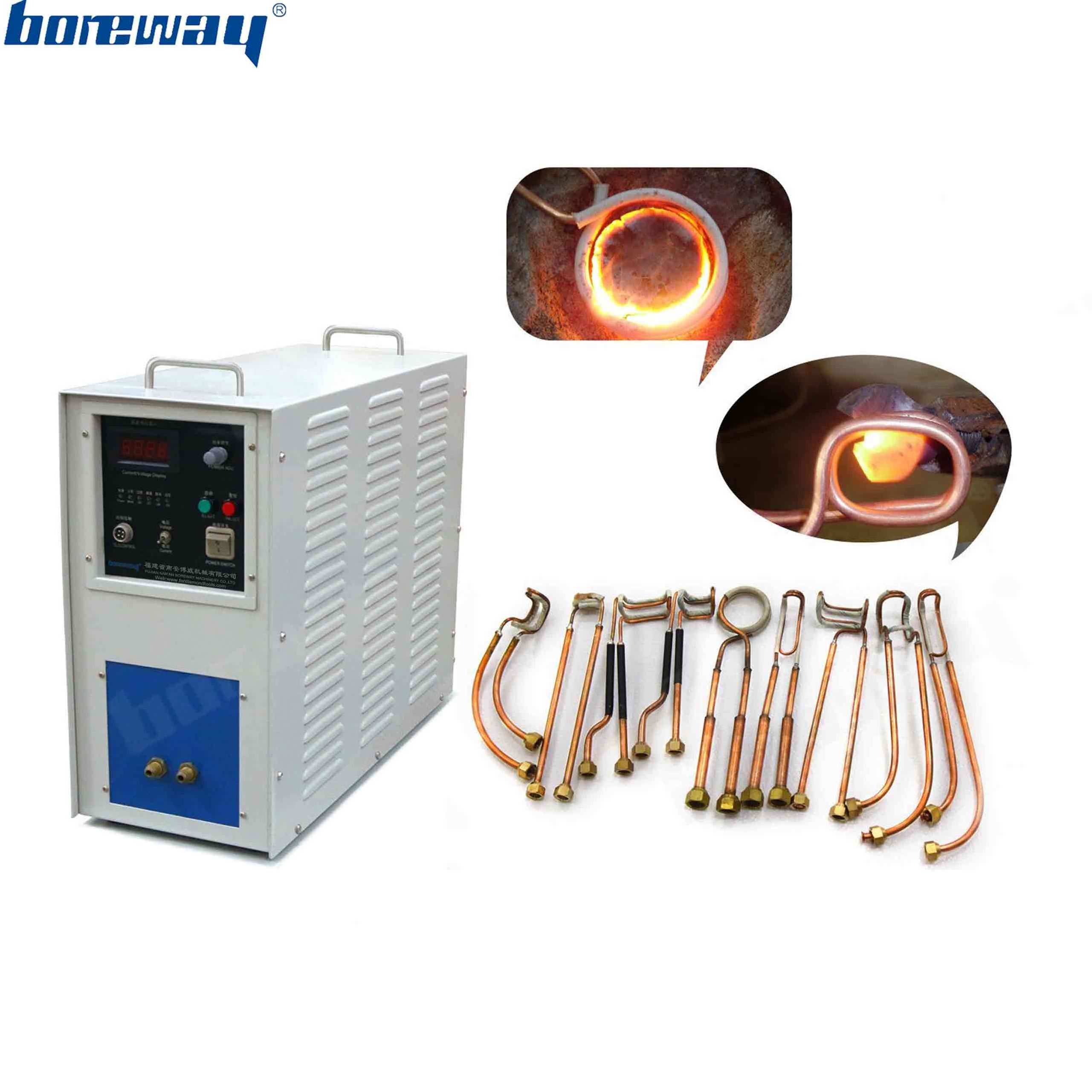

Pictures of our high frequency induction heating welding machine

High frequency induction heating welding machine connect with brazing frame rack

Tools Accessories

High Frequency Induction Heating Welding Machine 3Phases 380V+30KW

High Frequency Induction Heating Welding Machine 3Phases 380V+40KW

Packing & Delivery

High frequency induction welding machine packing in the wooden.
We can also pack the welding machine according to your requirements.
Special specifications need to be negotiated for delivery times.
