Quick Details
-
Dimension(L*W*H):
-
3500*3200*2800mm
-
Power (kW):
-
15 kW
-
Weight (KG):
-
7000 KG
-
Name:
-
Tire Steel Removing Machine
-
Raw material:
-
Waste Tyre
-
Application:
-
Rubbers Recycling Industry
-
Color:
-
Customers' Demand
-
Final product:
-
30~100mesh Rubber Powder
-
Advantage:
-
High Producing Efficiency
-
Keyword:
-
Waste Tire Powder Recycling
-
Function:
-
Tire Powder Recycling Machine
-
Usage:
-
Used Tire Recyling
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
guangyue
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3500*3200*2800mm
-
Power (kW):
-
15 kW
-
Weight (KG):
-
7000 KG
-
Name:
-
Tire Steel Removing Machine
-
Raw material:
-
Waste Tyre
-
Application:
-
Rubbers Recycling Industry
-
Color:
-
Customers' Demand
-
Final product:
-
30~100mesh Rubber Powder
-
Advantage:
-
High Producing Efficiency
-
Keyword:
-
Waste Tire Powder Recycling
-
Function:
-
Tire Powder Recycling Machine
-
Usage:
-
Used Tire Recyling

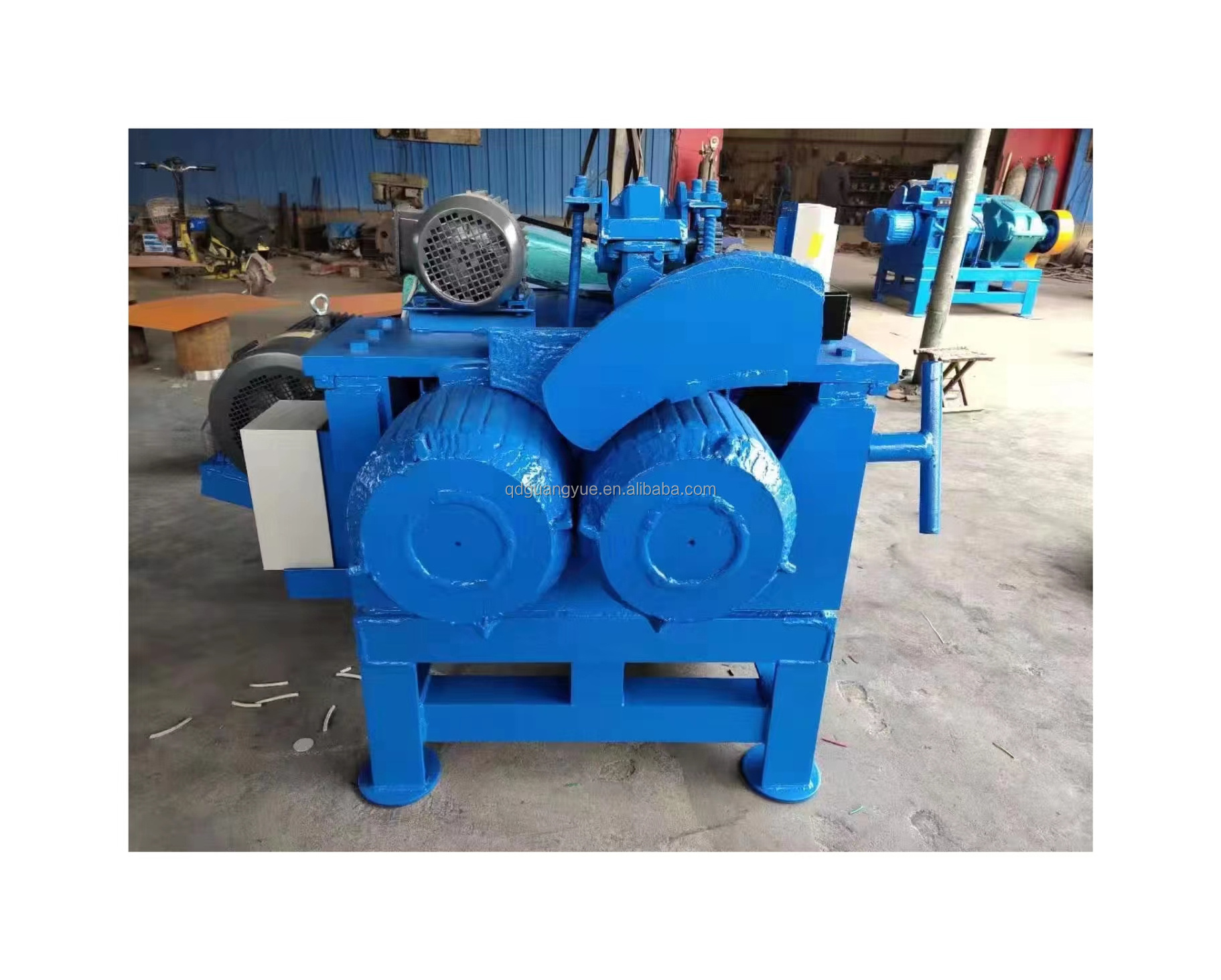

SLS-1200 Type Double Hook Tyre Wire Separator / Tyre cutting machine/ tyre cutter
1. GENERAL:
This production line including main machine and accessorial equipment, it is used for recycling scrap-tire (steel tyre and textile tyre), the final product is rubber powder or reclaimed rubber.
2.Process flow:
tire ring cutter → steel wire extractor→ tire shredder→ rubber coarse crusher→ magnetic separator→ vibrating screen1→ fine rubber crusher→ vibrating screen2 → cyclone classifier→ storage bin→ rubber grinder →vibrating screen3→package.
the whole line has the following features:
1), iron/steel removing ratio>99.5%, fiber removing ratio>98%
2),compact structure ensure running safety, easy maintenance;
3),low energy consumption;
4),adopt automatic control system for whole line, reduce labor cost;
5),no sewage and waste gas discharge, environment protection.
6), available capacity range of our tire recycling lines at present: 400~3000kg/h
7), available finial rubber powder size: 30~120mesh.
8), adopts SIEMENS and Chinese famous brand electrical elements.
3.Processing method:
Physic mechanical crushing method at normal temperature of waste tyre:nochemical raw material is required,no waste gas,washte water and soot are discharged, and the cooling water of the equipment is reused,no emission,equipment noise is within the range specified by the country(GB20055-2006),fineness of rubber powder produced by it is adjustable(10 meshes to 30 meshes),take waste tyre as example,the process is as follows:breaking down,crushing,filtering,magnetic separating,grin-ding,then the finished products are produced.
4.This production line including the below:
|
No |
Name |
Model
|
Number |
|
1 |
Ring cutter |
QQJ-20 |
1 |
|
2 |
Strip cutter |
QTJ-380 |
1 |
|
3 |
Block cutter |
QKJ-45 |
1 |
|
4 |
Loop machine |
YQJ-285 |
1 |
|
5 |
Conveyor equipment |
BSJ-1100, XSJ-600 |
2 |
|
*6 |
Rubber crusher |
XKP400/XKP450/XKP560 |
1 |
|
7 |
Magnet separator |
BCX-2, XCX-1 |
2 |
|
8 |
vibrating screen |
BS-8, XS-4 |
2 |
|
*9 |
Fiber separator |
XFJ-1100 |
1 |
|
10 |
Rubber grinder |
XMF-270/330/420 |
1 |
*6: there is 3 types of rubber crusher, you can choice the suitable one ,it is depend on the output!
#9 : you not need Granulator Grinder if your final rubber powder bigger than 30 mesh. but we need it if the powder less than 30 mesh and the number of this machine depend on the output!
5. Analysis for output :
1).XKP400 rubber crusher:
Output: 4500-6000kg/24 hour for about 20 mesh granule.
2).XKP450 rubber crusher:
Output :7000-12000kg/24 hour for about 20 mesh granule.
3).XKP560 rubber crusher:
Output : 10000-17000kg/24 hour for about 20 mesh granule.
