Quick Details
-
Voltage:
-
220v/380v/415v / customized
-
Dimension(L*W*H):
-
1900*
-
Motor Power (kW):
-
7.5
-
Model Number:
-
Q35Y-20
-
Weight (T):
-
2.7
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Customized
-
Type:
-
Multi-functional Metal Processing Machine
-
Main Electric Component:
-
Schneider
-
Power:
-
7.5kw
-
Certification:
-
CE,ISO
-
Material / Metal Processed:
-
carbon steel /stainless steel/Iron and so on
-
Angle of cutting:
-
8°
-
Punching thickness:
-
22mm
Quick Details
-
Slide Stroke (mm):
-
80
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
AOXUAN
-
Voltage:
-
220v/380v/415v / customized
-
Dimension(L*W*H):
-
1900*
-
Motor Power (kW):
-
7.5
-
Model Number:
-
Q35Y-20
-
Weight (T):
-
2.7
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Customized
-
Type:
-
Multi-functional Metal Processing Machine
-
Main Electric Component:
-
Schneider
-
Power:
-
7.5kw
-
Certification:
-
CE,ISO
-
Material / Metal Processed:
-
carbon steel /stainless steel/Iron and so on
-
Angle of cutting:
-
8°
-
Punching thickness:
-
22mm
Product Overview

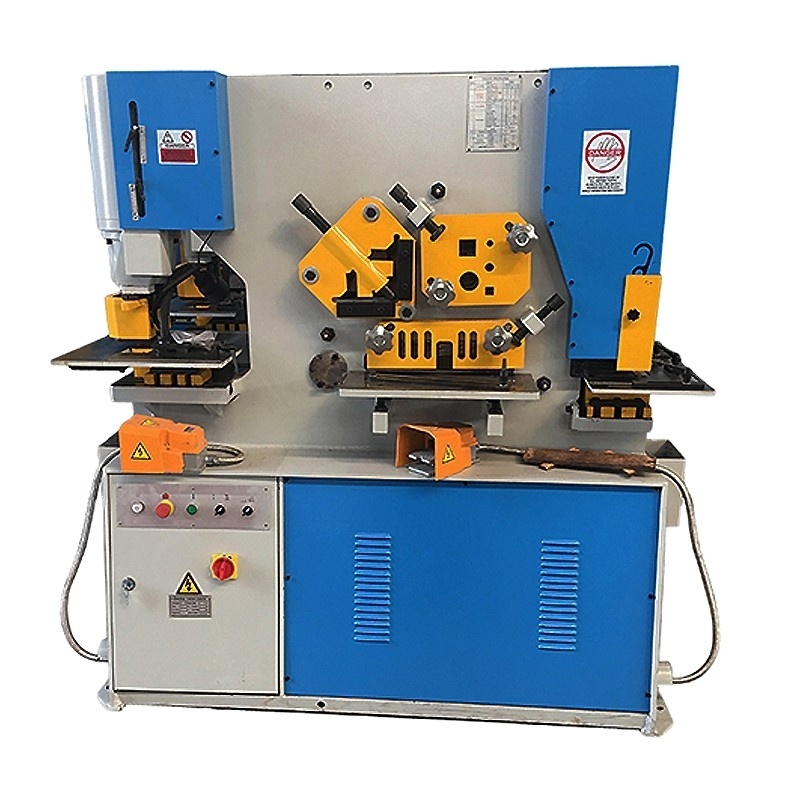

Q35Y-20 Hydraulic Ironworker Machine Hydraulic Combined Punching And Shearing Machine Price
Aoxuan's Q35Y series industrial-grade hydraulic ironworker featuring multiple functions, including: round hole, square hole,oblong hole punching; steel plate, flat bar, angle steel, C-channel, H-beam punching; steel plate bending; angle steel shearing,notching and bending; flat, round, square bar, C-channel, I-beam, T-bar shearing/cutting; angle bending and pipe notching.
The machine comes standard with: quick-change coupling nut & sleeve, squaring arm with scale, electronic back gauge, gauging table with stops, punching base table, safety guards and more. With its multifunction, Q35Y series hydraulic ironworker is your first choice among the counterpart machine. Besides, all the components are of the highest quality in the matter of safety, function, capability and maintenance.
Our machine is designed via the most advanced technology and has the virtues of easy operation, low consumption and low maintenance cost. We also can provide customized solutions to better cater for customers' needs.
The machine comes standard with: quick-change coupling nut & sleeve, squaring arm with scale, electronic back gauge, gauging table with stops, punching base table, safety guards and more. With its multifunction, Q35Y series hydraulic ironworker is your first choice among the counterpart machine. Besides, all the components are of the highest quality in the matter of safety, function, capability and maintenance.
Our machine is designed via the most advanced technology and has the virtues of easy operation, low consumption and low maintenance cost. We also can provide customized solutions to better cater for customers' needs.
Optional tooling:
The automatic holding system : The automatic holding system can be chosen to set up in angle steel shearing and plate shearing work position. Additionally, the holders will fix the position of work piece in order to save time and improve working efficiency.
Temperature cooling system: When the machine is working, you can read the temperature of oil through the monitoring screen. If the oil temperature goes higher than 55 degree which is the default configuration, the inside cooling system will run automatically to decrease oil temperature in order to protect hydraulic system.
Main standard properties components of Ironworker:
1. All the electrical parts are IMPORT with CE certificate.
2. Professionally engineered design frame structures.
3. Steel welds with high precision strength and rigidity to eliminate vibrations.
4. Ironworker steel frame Q235 = American standard steel A306 GR55.
5. Five sets of punch and blades were installed on the machine.
6. Timer relay by Japanese OMRON.
7. All wiring terminal block by WEIDMULLER.
8. Main Electrical component by Germany Schneider.
9. Oil seals by Japanese, NOK.
10. O-Ring and Valve by Taiwan for piston pump more durable.
11. Hydraulic System by Japanese Yuken.
12. Motor by Chinese Jiangsu Dazhong
13. Hydraulic fuel tanks and ironworker frame built by our Factory.
14. Dual independent hydraulic cylinder
15. Dual Footswitch controlled work separately
16. Easy Adjustable stroke control with ruler
17. Indicator on both hydraulic cylinders
18. Electric back gauge auto stop
19. Moveable working light that can be placed at any desired position
20. Hydraulic system with overload protection system
21. Emergency safety stop switch
22. Large punching table with ruler guide
23. Larger notching table with Ruler guide
24. Large flat shearing table with Ruler guide
25. Most important easy maintenance
The automatic holding system : The automatic holding system can be chosen to set up in angle steel shearing and plate shearing work position. Additionally, the holders will fix the position of work piece in order to save time and improve working efficiency.
Temperature cooling system: When the machine is working, you can read the temperature of oil through the monitoring screen. If the oil temperature goes higher than 55 degree which is the default configuration, the inside cooling system will run automatically to decrease oil temperature in order to protect hydraulic system.
Main standard properties components of Ironworker:
1. All the electrical parts are IMPORT with CE certificate.
2. Professionally engineered design frame structures.
3. Steel welds with high precision strength and rigidity to eliminate vibrations.
4. Ironworker steel frame Q235 = American standard steel A306 GR55.
5. Five sets of punch and blades were installed on the machine.
6. Timer relay by Japanese OMRON.
7. All wiring terminal block by WEIDMULLER.
8. Main Electrical component by Germany Schneider.
9. Oil seals by Japanese, NOK.
10. O-Ring and Valve by Taiwan for piston pump more durable.
11. Hydraulic System by Japanese Yuken.
12. Motor by Chinese Jiangsu Dazhong
13. Hydraulic fuel tanks and ironworker frame built by our Factory.
14. Dual independent hydraulic cylinder
15. Dual Footswitch controlled work separately
16. Easy Adjustable stroke control with ruler
17. Indicator on both hydraulic cylinders
18. Electric back gauge auto stop
19. Moveable working light that can be placed at any desired position
20. Hydraulic system with overload protection system
21. Emergency safety stop switch
22. Large punching table with ruler guide
23. Larger notching table with Ruler guide
24. Large flat shearing table with Ruler guide
25. Most important easy maintenance
PRODUCT SPECIFICATIONS
|
Model
|
Q35Y-20
|
|
Punching Pressure
|
100T
|
|
Max.cutting thickness of steel plate
|
20mm
|
|
Material strength
|
≤450N/mm²
|
|
Angel of shear
|
8°
|
|
Flat bar shearing(Thickness*Width)
|
20*330mm 10*480mm
|
|
Max. length of cylinder stroke
|
80mm
|
|
Trips frequency
|
12-20times/min
|
|
Depth of throat
|
355mm
|
|
Punching depth
|
20mm
|
|
Max. punching diameter
|
33mm
|
|
Motor power
|
7.5kw
|
|
Overall dimensions(L*W*H)
|
1950*920*1950mm
|
|
Machine weight
|
2700kg
|
Detailed Image
Service
Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.
In-sales.
* We will provide you with the latest progress in the product assembly, packaging and transportation.
After-sale.
* We will provide free accessories for the damage to non - human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.
* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.
In-sales.
* We will provide you with the latest progress in the product assembly, packaging and transportation.
After-sale.
* We will provide free accessories for the damage to non - human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.
PACKING & SHIPPING
1.Wrap three layers of plastic film to avoid damage to the collision during transport.(Free)
2.Customized wooden box according to customer requirements.(Additional payment)
3.According to customer requirements.
2.Customized wooden box according to customer requirements.(Additional payment)
3.According to customer requirements.
