Quick Details
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
VIZI, VIZI
-
Dimension(L*W*H):
-
2000*1750*750mm, 2000*750*1750mm
-
Weight:
-
150KG
-
Model:
-
VZ-SFFK1
-
Weighing range:
-
20-28 bottles/min
-
Product name:
-
Aluminum foil sealer
-
Sealing type:
-
Aluminum Cap
-
Keyword:
-
Hot sale aluminum foil sealer
-
Pressure range:
-
0.4-0.8Mpa
-
Certification:
-
CE
Quick Details
-
Packaging Type:
-
Bottles, cup
-
Packaging Material:
-
Plastic, Paper
-
Driven Type:
-
Electric
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
VIZI, VIZI
-
Dimension(L*W*H):
-
2000*1750*750mm, 2000*750*1750mm
-
Weight:
-
150KG
-
Model:
-
VZ-SFFK1
-
Weighing range:
-
20-28 bottles/min
-
Product name:
-
Aluminum foil sealer
-
Sealing type:
-
Aluminum Cap
-
Keyword:
-
Hot sale aluminum foil sealer
-
Pressure range:
-
0.4-0.8Mpa
-
Certification:
-
CE

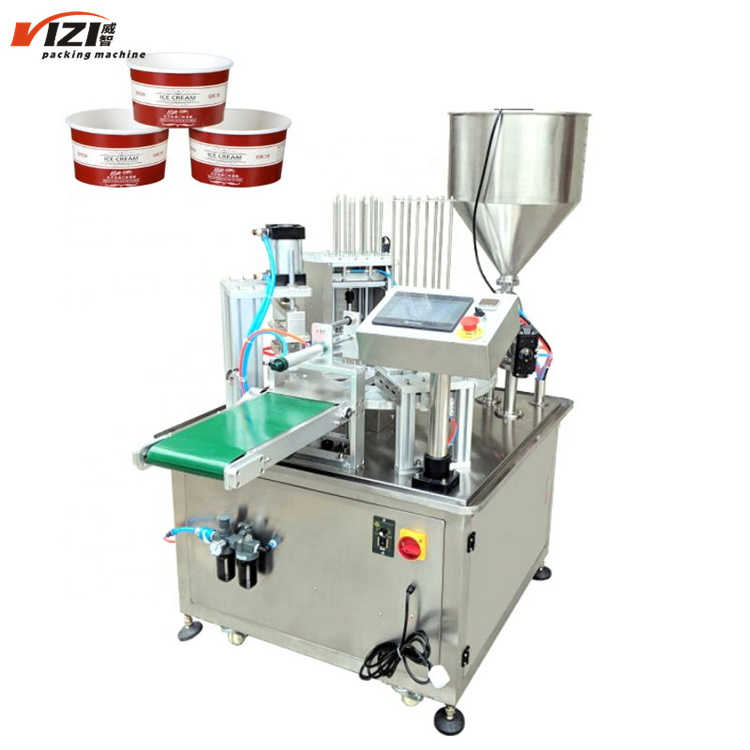

High accuracy yogurt packing machine automatic Water Ice Cream Juice Honey Yogurt Cup Form Filling Seal Machine
Procedure:
1.Stainless steel integrated structure, digital display, beautiful and easy to use..
2.High temperature sealing system is used to ensure the stability and consistency of sealing products.
3.Electronic components are used in international first-line brand products.
4. This equipment can be used with other production lines, suitable for mass production.
2.High temperature sealing system is used to ensure the stability and consistency of sealing products.
3.Electronic components are used in international first-line brand products.
4. This equipment can be used with other production lines, suitable for mass production.
PRODUCT SPECIFICATIONS
|
Model
|
XBFK-1H
|
rated voltage
|
AC220V 50Hz
|
|
Sealing speed
|
20-28 bottle/min
|
Air pressure range
|
0.4-0.8MPa
|
|
Sealing diameter
|
Custom-made bottle
|
Bottle requirement
|
The bottle body is hard and the mouth of the bottle is flat
|
|
Sealing time
|
1.2-2
|
Conveyor belt motor power
|
370W
|
|
Temperature setting
|
180-210℃
|
weight
|
About 150KG
|
|
Film collecting motor power
|
250W
|
outline dimension
|
2000*750*1750mm
|
|
Conveyor belt height from ground
|
800mm(±50mm)
|
Conveyor belt width
|
150mm
|
Structure and performance specification
Can be customized for packing ice cream, yogurt, milk, syrup, soymilk, chilli sauce, juice, honey, ketchup, mineral water and so on.
Details Images
Main Part information
|
NO.
|
Part
|
Model No.
|
QTY
|
Brand
|
||
|
1
|
Film Feeding Stepper Motor
|
MT34FN47035M801
|
1
|
Bailang
|
||
|
2
|
Stepper driver
|
LW806
|
1
|
Bailang
|
||
|
3
|
Bottle inspection electric eye
|
GN-08NT-YR
|
3
|
FCOTTER
|
||
|
4
|
PLC
|
DVP-16ES2
|
1
|
Taiwan Delta
|
||
|
5
|
Man-machine interface
|
TPC7062KS
|
1
|
Kunlun Tongtai
|
||
|
6
|
Conveyor motor
|
YN90-120W30G15
|
1
|
Beijing Weitewei
|
||
|
7
|
Collecting film motor
|
YN70-20W5G10
|
1
|
Beijing Weitewei
|
||
|
8
|
Speed Governor
|
FS32B
|
2
|
Beijing Weitewei
|
||
|
9
|
Switching Voltage
|
S-35-24
|
1
|
Schneider
|
||
|
11
|
Intermediate relay
|
RXM24VDC
|
1
|
Schneider
|
||
|
12
|
Leakage protector
|
DZ47LE-32
|
1
|
Zhengtai
|
||
|
13
|
Main host material
|
SUS304 stainless steel,T6Hard aluminum alloy
|
|
|
||
Feature：
1. The machine's appearance is made of 304# stainless steel material,its external shape is simple and beautiful,in line with the design requirement of lots of the standard production workshop.
2. Various accessories are processed precisely,production technology and industry,etc,have obtained the sediment for customer experience for a long time of the company and continuous improvement,its main parts adopts the unique design,high strength,low noise,good sealing performance.
3. The design of automatic production line is extremely easy to be make up the operation line combined with
the,weighing,filling,capping or labeling system.
4. This product is mainly applicable to dustproof plastic lid sealing with round bottles,such as various PET
plastic,metal,aluminum and paper cans,etc.Our machines are with advanced design,reasonable structure,and simple operation,which is an ideal packaging equipment for food,medicine,tea,chemical industry,etc.
2. Various accessories are processed precisely,production technology and industry,etc,have obtained the sediment for customer experience for a long time of the company and continuous improvement,its main parts adopts the unique design,high strength,low noise,good sealing performance.
3. The design of automatic production line is extremely easy to be make up the operation line combined with
the,weighing,filling,capping or labeling system.
4. This product is mainly applicable to dustproof plastic lid sealing with round bottles,such as various PET
plastic,metal,aluminum and paper cans,etc.Our machines are with advanced design,reasonable structure,and simple operation,which is an ideal packaging equipment for food,medicine,tea,chemical industry,etc.
About us
Foshan VIZI Packaging Machinery Co., Ltd.
is a modern enterprise focusing on the production and R&D of packaging machines needed in different industries. The company focuses on the design, research and development, production and manufacturing of special packaging equipment and other general equipment manufacturing.
The products include: vertical packaging machines, pillow packaging machines, filling machines, bag feeding machines, quantitative packaging scales and supporting equipment.
The company has a series of technical personnel, engineers, and sales and after-sales service personnel, forming a high-quality young team with a team of innovative spirit. The company adheres to the tenet of "people-oriented, practical innovation, and pursuit of excellence", as always to provide customers with reliable products, perfect services, common development, and create good results together.
Our company culture
Our company culture
Mission: Promote the spirit of craftsmanship, achieve outstanding brand
Vision: Develop packaging intelligence and strive for international brands
Values: Thanksgiving, integrity, dedication, rigor, innovation, efficiency
Development concept: integrate resources, create opportunities, develop markets, help each other and win-win
Enterprise Declaration:Prosperity in the field of packaging and create industry value together
Vision: Develop packaging intelligence and strive for international brands
Values: Thanksgiving, integrity, dedication, rigor, innovation, efficiency
Development concept: integrate resources, create opportunities, develop markets, help each other and win-win
Enterprise Declaration:Prosperity in the field of packaging and create industry value together
Exhibition
Our Services
Pre-sale service
1. Training customers' engineers to learn how to use filling machines.
2. Testing packing machines, with product sample and our film materials.
3. Machine testing videos will be sent to customers.
After-sale service
1. Providing manual book.
2. Videos of installation, adjusting, setting, and maintenance are available.
3. Telecommunucations and face to face online communications are available.
4. Engineer oversea services are available. The round-trip air tickets, hotel, meal, and visa cost of our engineers shall be borne by the Buyer.
5. Machine quality guarantee period is 1 year, and 2 years for spare parts. During guarantee period, if there is no man-made damage, we will replace new ones for you. The guarantee period will start from the date of B/L.
1. Training customers' engineers to learn how to use filling machines.
2. Testing packing machines, with product sample and our film materials.
3. Machine testing videos will be sent to customers.
After-sale service
1. Providing manual book.
2. Videos of installation, adjusting, setting, and maintenance are available.
3. Telecommunucations and face to face online communications are available.
4. Engineer oversea services are available. The round-trip air tickets, hotel, meal, and visa cost of our engineers shall be borne by the Buyer.
5. Machine quality guarantee period is 1 year, and 2 years for spare parts. During guarantee period, if there is no man-made damage, we will replace new ones for you. The guarantee period will start from the date of B/L.
Product packaging
FAQ
Q1: How to find a Packing machine suitable for my product?
Tell us about your product details and packing requirements.
1. What product do you want to pack?
2. The weight of each bag?
3. Dimension of the bag(if you don't have, send us a sample or draft drawing)
Q2: Can you send engineer service oversea?
Yes, and you need to pay.
According to save your cost, we will send you a video of the installation of the machine.
Q3. How can we make sure about the machine's quality after we paid?
Before delivery, we will send you the pictures and videos of the machines.
And also you can visit our factory and check the machine.
Q4. How can you guarantee I will get the machine if I paid?
We have the business license and certificates. And you can pay by Alibaba Trade Assurance.
Q5. Payment Method ?
1. 30% deposit, 70% before shipping.
2. We accept T/T, L/C, DDP, Alibaba Trade assurance etc.
Q6: Warranty
2 years after we ship the machine. (Except the quick-wear parts)
Tell us about your product details and packing requirements.
1. What product do you want to pack?
2. The weight of each bag?
3. Dimension of the bag(if you don't have, send us a sample or draft drawing)
Q2: Can you send engineer service oversea?
Yes, and you need to pay.
According to save your cost, we will send you a video of the installation of the machine.
Q3. How can we make sure about the machine's quality after we paid?
Before delivery, we will send you the pictures and videos of the machines.
And also you can visit our factory and check the machine.
Q4. How can you guarantee I will get the machine if I paid?
We have the business license and certificates. And you can pay by Alibaba Trade Assurance.
Q5. Payment Method ?
1. 30% deposit, 70% before shipping.
2. We accept T/T, L/C, DDP, Alibaba Trade assurance etc.
Q6: Warranty
2 years after we ship the machine. (Except the quick-wear parts)
