Quick Details
-
Brand Name:
-
ZCHENG
-
Model Number:
-
ZCM-610
-
Product Name:
-

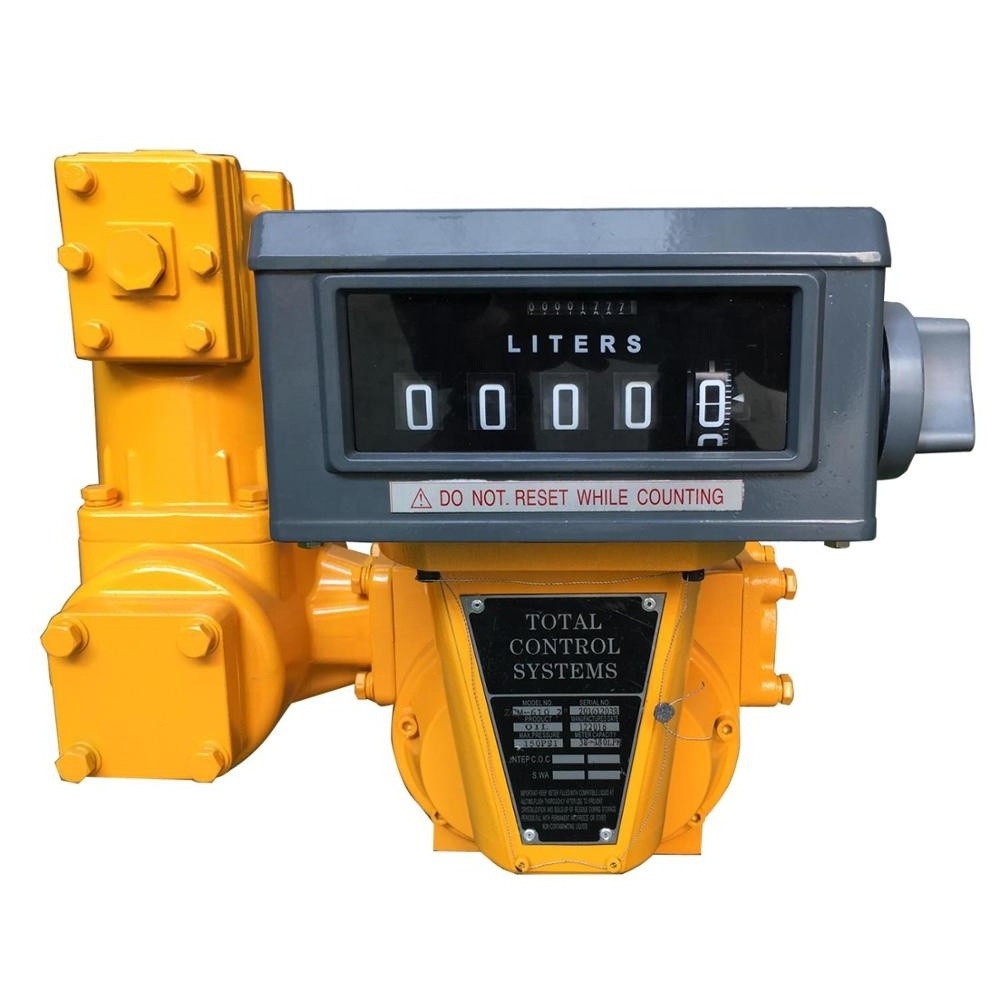

Positive displacement flow meter
-
Sample:
-
Available
-
Max.pressure:
-
10Bar/150PSI
-
Accuracy:
-
±0.2%
-
Repeatability:
-
≤0.05%
-
Standard measurement:
-
Liter/US Gallon/IMP Gallon
Quick Details
-
Type:
-
Variable Area Oil Flowmeters
-
Warranty:
-
1year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZCHENG
-
Model Number:
-
ZCM-610
-
Product Name:
-
Positive displacement flow meter
-
Sample:
-
Available
-
Max.pressure:
-
10Bar/150PSI
-
Accuracy:
-
±0.2%
-
Repeatability:
-
≤0.05%
-
Standard measurement:
-
Liter/US Gallon/IMP Gallon
|
Size |
40mm/1.5" |
50mm/2" |
80mm/3" |
100mm/4" |
150mm/6" and 100mm/4" for option |
||||
|
Flow Rate(L/min) |
25-250 |
38-380 |
55-550 |
75-750 |
115-1150 |
130-1300 |
170-1700 |
225-2250 |
300-3000 |
|
Volume Per Revolution |
0.309L |
0.681L |
1.839L |
5.102L |
9.507L |
||||
|
Max.Perssure |
±0.2% |
||||||||
|
Accuracy |
±0.2% |
||||||||
|
Repeatability |
≤0.05% |
||||||||
|
Standard Measurement |
Liter/US Gallon/IMP Gallon |
||||||||
|
Package |
1pc/wooden case |
||||||||
|
N.W. |
23kgs |
26kgs |
40kgs |
70kgs |
130kgs |
||||
|
G.W. |
35kgs |
38kgs |
55kgs |
90kgs |
155kgs |
||||
|
Meas. |
53x48x53cm |
53x48x53cm |
58x50x61cm |
76x64x72cm |
80x65x79cm |
||||
