Quick Details
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HT
-
Dimension(L*W*H):
-
1560mm*900mm*790mm
-
Weight (KG):
-
170 KG
-
Core Components:
-
LASER TUBE
-
Laser power:
-
90W-100W
-
Laser tube:
-
RECI
-
Color:
-
optional
-
Model:
-
HT-460
-
Working area:
-
400*600mm
-
Max. Cutting Speed:
-
0-600mm/s
-
Software:
-
Ruida 6442
-
After-sales Service Provided:
-
Online support
-
Product name:
-
C02 Laser Engraving Cutting Machine
-
Keywords:
-
Co2 Laser Cuting Machine
Quick Details
-
Engraving Area:
-
600*400mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
0-1000mm/s
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HT
-
Dimension(L*W*H):
-
1560mm*900mm*790mm
-
Weight (KG):
-
170 KG
-
Core Components:
-
LASER TUBE
-
Laser power:
-
90W-100W
-
Laser tube:
-
RECI
-
Color:
-
optional
-
Model:
-
HT-460
-
Working area:
-
400*600mm
-
Max. Cutting Speed:
-
0-600mm/s
-
Software:
-
Ruida 6442
-
After-sales Service Provided:
-
Online support
-
Product name:
-
C02 Laser Engraving Cutting Machine
-
Keywords:
-
Co2 Laser Cuting Machine

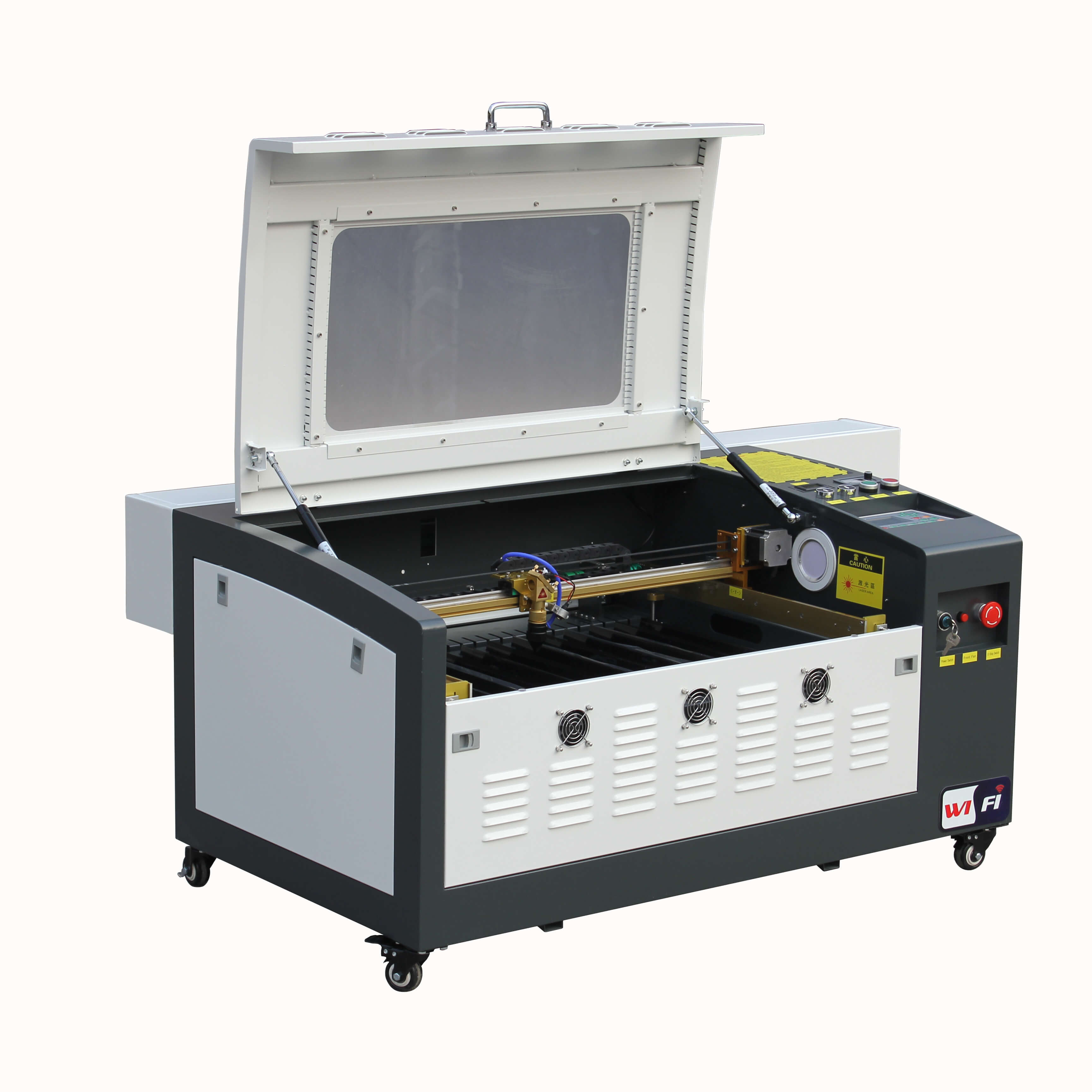

HT-460 Laser engraving machine price for acrylic and non-materials
1. Good quality machine parts
2. 20 years' experience
3. OEM, good after-sale service
4. High quality Reci co2 laser tube
5. 3 years warranty(tube for 18 months)
Applaciate:
laser engraving machine is mainly used to engrave many kinds of non-metal materials, such as: Acrylic, Bamboo products, Cloth, Plastic, Marble, Glasses, Woods, PVC.
the details of HT-460 laser engraving machine:
Technical Parameter:
|
TYPE |
HT-460 |
|
Working Area |
400mm*600mm |
|
Laser Power |
90W-100w |
|
Max. Cutting Depth |
10mm |
|
Laser Type |
Glass CO2 laser tube |
|
|
HIWIN Linear Guide Rail--the best made in Taiwan |
|
Drive Type |
LeadShine Stepper Driver and Motor--the best made in China |
|
Default Software / Controller |
LaserCutEngrave / DSP Control |
|
Max. Engraving Speed |
0-1000mm/s |
|
Max. Cutting Speed |
0-600mm/s |
|
Positioning Accuracy |
<0.01mm |
|
Max. Forming Character |
English:1.5 x 1.5mm |
|
Power Supply |
220V±10% 50HZ or 110V±10% 60HZ |
|
Software Supported |
ArtCut, CorelDraw, PhotoShop, AutoCAD |
|
Graphic Format Supported |
PLT, DXF, BMP, JPG, GIF, PGN, TIF and so on |
|
Working Table (DEFAULT) |
Fixed Honeycomb Table, Fixed Flatbed Table or Fixed Knife Table |
|
Machine Color |
Black Red & Blue White |
|
1 Air Pump and 1 Water Pump |
Yes |
|
Exhausting System |
Yes |
|
Net Weight |
150 kg |
|
Gross Weight |
200 kg |
|
Operating Temperature |
0℃-45℃ |
|
Equipment Dimension |
1050mm*750mm*970mm |
|
Operating Humidity |
5%-95% Free of condensed water |
|
Optional Devices |
Chiller, Motorized Up/Down Flatbed Table, Rotary Attachment, Automatic Focus, etc. |
|
Recommended Spare Parts |
Laser Tube, Lens, Mirror, Laser Power Supply |
The machine will be packed in standard wooden case.
The whole package by harden carton include:
1 * Water Chiller
1 * Smoke Pipe
1 * Main Body
1 * Air Pump
1 * Power Line
1 * Wrench
1 * Exhaust Fan
1 * Laser Tube
1 * Manual/Accessory Bag
1 * USB Cable
1 * Flash Disk
1* Rotary
