Quick Details
-
Model Number:
-
BC-2800Vet
-
Place of Origin:
-
China
-
Product name::
-
veterinary hematology analyzer
-
Principles::
-
Electrical impedance method for cell counting and cyanide free method
-
Throughput::
-
25 samples per hour
-
Data storage::
-
10,000 results with histograms
-
Display:
-
Color LCD display resolution: 800x600
-
Sample Volume::
-
Prediluted: 20μL Whole Blood: 13μL
-
Carryover::
-
WBC, RBC, HGB≤0.5%, PLT≤1.0%
-
Printout::
-
Thermal recorder, 50mm width paper
-
Temperature::
-
15℃~30℃
-
Humidity::
-
30%~85%
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Brand Name:
-
Mindray
-
Model Number:
-
BC-2800Vet
-
Place of Origin:
-
China
-
Product name::
-
veterinary hematology analyzer
-
Principles::
-
Electrical impedance method for cell counting and cyanide free method
-
Throughput::
-
25 samples per hour
-
Data storage::
-
10,000 results with histograms
-
Display:
-
Color LCD display resolution: 800x600
-
Sample Volume::
-
Prediluted: 20μL Whole Blood: 13μL
-
Carryover::
-
WBC, RBC, HGB≤0.5%, PLT≤1.0%
-
Printout::
-
Thermal recorder, 50mm width paper
-
Temperature::
-
15℃~30℃
-
Humidity::
-
30%~85%
Laboratory equipment BC-2800Vet mindray hematology analyzer veterinary price vet analyzer
Details Images
Product Description

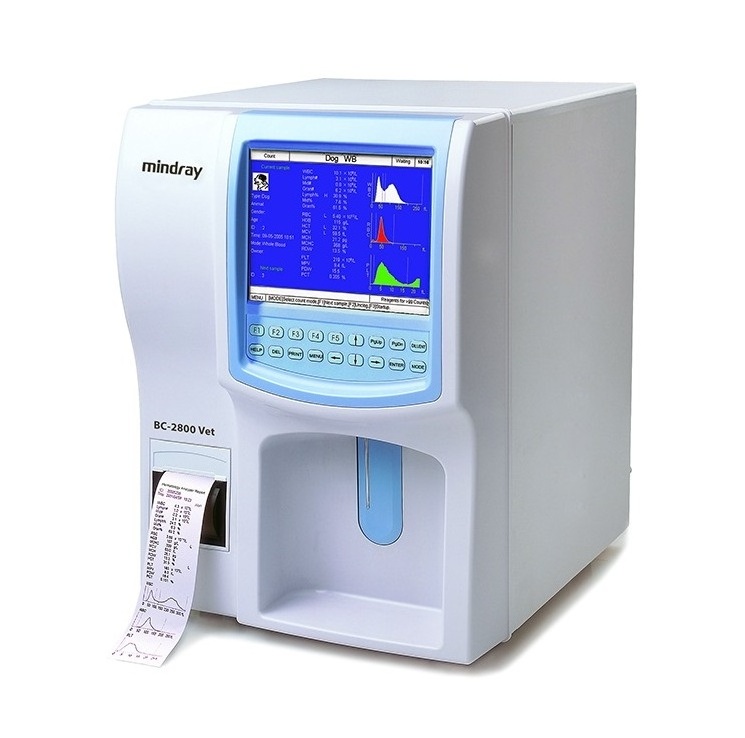

BC-2800 Vet
Auto Hematology Analyzer
CBC+DIFF for Dog, Cat, Horse, Rat, Mouse, Rabbit, Cow and Monkey;
Additional Eos% measurement for dog and cat.
13 pre-defined animal species + 3 programmable animals on request
Fully automated, compact, flexible and low cost
Throughput: 25 samples per hour
Micro sampling of 13uL whole blood
Automatic sample probe cleaning
Huge data storage of 10, 000 results with histograms
Auto Hematology Analyzer
CBC+DIFF for Dog, Cat, Horse, Rat, Mouse, Rabbit, Cow and Monkey;
Additional Eos% measurement for dog and cat.
13 pre-defined animal species + 3 programmable animals on request
Fully automated, compact, flexible and low cost
Throughput: 25 samples per hour
Micro sampling of 13uL whole blood
Automatic sample probe cleaning
Huge data storage of 10, 000 results with histograms
Specification
|
Technical Specifications:
|
|
|
|
Parameters
|
WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW, PLT, MPV, PDW, PCT
CBC+DIFF for Dog, Cat, Horse, Rat, Mouse, Rabbit, Cow and Monkey Lymph#, Mon#, Gran#, Lymph%, Mon%, Gran%, Eos% (Special for Dog and Cat) Histograms for WBC, RBC and PLT |
|
|
Principles
|
Electrical impedance method for cell counting and cyanide free method for Hemoglobin
|
|
|
Carryover
|
WBC, RBC, HGB≤0.5%, PLT≤1.0%
|
|
|
Sample Volume
|
Prediluted: 20μL
Whole Blood: 13μL |
|
|
Throughput
|
25 samples per hour
|
|
|
Data storage
|
10,000 results with histograms
|
|
|
Display
|
Color LCD display resolution: 800x600
|
|
|
Input/Output
|
Rs232x2, 1 parallel printer (optional), 1 barcode scanner (optional), 1 keyboard interface
|
|
|
Printout
|
Thermal recorder, 50mm width paper, multiple printout formats, external printer (optional)
|
|
|
Operating Environment
|
Temperature: 15℃~30℃
Humidity: 30%~85% |
|
|
Power Requirement
|
AC 100-240V, 50/60Hz
|
|
|
Dimensions
|
322mm (W)x437mm(H)x386mm(D)
|
|
|
Weight
|
Less than 23kg
|
|
|
Performance
|
|
|
|
Parameter
|
Linearity Range
|
Precision (CV%)
|
|
WBC (10
9
/L)
|
0.4~99.9
|
3.0 (7.5~15.0)
|
|
RBC (10
12
/L)
|
0.20~16.99
|
2.0 (3.50~6.00)
|
|
HGB (g/L)
|
3-250
|
2.0 (120~180)
|
|
MCV (fL)
|
|
2.0 (40~110.0)
|
|
PLT (10
9
/L)
|
10-2999
|
6.0 (200~500)
|
