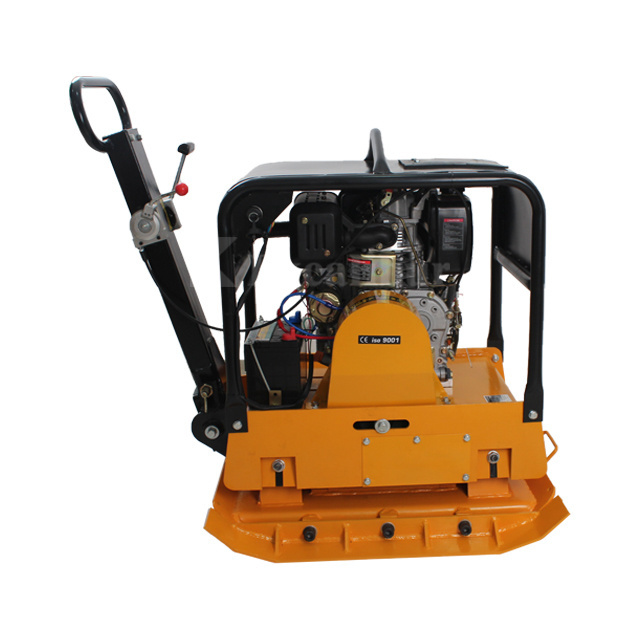

The Plate Compactor is made of high strength steel, the bottom plate with curved edges guarantees the stable operation
◆ Hardened and enclosed pulley cover design protects the clutch and belt
◆ The strong protecting framework not only prevents the engine frame from impact, but also makes easier carry
◆ The foldable handle with unique design saves more storage space.The humanization design of the shock pad dramatically reduces
the of operation vibration of the handle,which increases the comfort
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
SC330B
-
Place of Origin:
-
Jiangsu Province, Xinghua City
-
Power:
-
10HP
-
Dimension(L*W*H):
-
1030*535*1010MM
-
Weight:
-
330 kg, 330KG
-
Engine:
-
10HP
-
Product name:
-
Vibratory Plate Compactor
-
Type:
-
Walk-behind
-
Engine type:
-
Gasoline engine or diesel engine
-
Centrifugal force:
-
50KN
-
Walking Mode:
-
reversible
-
Frequency:
-
3600pm
-
Travel Speed:
-
20-25m/min
-
Plate Size (LXW):
-
880*650mm
-
After Warranty Service:
-
Video technical support
Quick Details
-
Marketing Type:
-
2021 Hot Product
-
Application:
-
Construction Site
-
Brand Name:
-
Excalibur
-
Model Number:
-
SC330B
-
Place of Origin:
-
Jiangsu Province, Xinghua City
-
Power:
-
10HP
-
Dimension(L*W*H):
-
1030*535*1010MM
-
Weight:
-
330 kg, 330KG
-
Engine:
-
10HP
-
Product name:
-
Vibratory Plate Compactor
-
Type:
-
Walk-behind
-
Engine type:
-
Gasoline engine or diesel engine
-
Centrifugal force:
-
50KN
-
Walking Mode:
-
reversible
-
Frequency:
-
3600pm
-
Travel Speed:
-
20-25m/min
-
Plate Size (LXW):
-
880*650mm
-
After Warranty Service:
-
Video technical support
Product Description for Plate Compactor
|
Plate Compactor Model
|
SC-50
|
SC-60
|
SC-77
|
SC-77W
|
SC-90
|
SC-100
|
SC-140
|
||||||
|
Plate size L*W (mm)
|
535*290
|
570*370
|
570*370
|
560*475
|
570*450
|
708*450
|
630*500
|
||||||
|
Travel speed (m / min)
|
15-20
|
20-25
|
15-20
|
15-20
|
15-20
|
15-20
|
15-20
|
||||||
|
Limited grade ability
|
20
|
20
|
20
|
20
|
20
|
20
|
20
|
||||||
|
Vibration Frequency vpm(Hz)
|
5600
|
5600
|
5600
|
5600
|
5600
|
5600
|
5600
|
||||||
|
Centrifugal force (KN)
|
10
|
10
|
10.5
|
13.5
|
13
|
20
|
30
|
||||||
|
Engine model Option
|
Lifan 154F @ 1.4kW (3HP) 4 cycle Gasoline Engine
|
Honda GX160@4.1kW (5.5HP) 4 cycle Gasoline Engine
Robin EY20-3C @3.7KW (5HP) 4 cycle Gasoline Engine
Lifan G160F @4.1kW (5.5HP) 4 cycle Gasoline Engine
Diesel Engine D173F @4.4kW (6.0HP)
|
|
|
|
|
|
||||||
|
Starting system
|
Recoil Start
|
|
|
|
|
|
|
||||||
|
Packing size (L*W*H) mm
|
740*360*550
|
890*430*660
|
850*530*670
|
880*530*670
|
580*470*650
|
700*480*580
|
670*500*800
|
||||||
|
Net weight (KG)
|
51
|
69
|
75
|
80
|
80
|
97
|
110
|
||||||
