Quick Details
-
Power:
-
30A
-
Table Size:
-
2.30m*1.12m
-
Weight:
-
2900 kg
-
Work Height:
-
11.80m
-
Platform Capacity:
-
350kg
-
Capacity on Deck Extension:
-
113kg
-
Max. Number of Workers:
-
2
-
Drive Speed (Stowed):
-
3.5km/h
-
Raised Drive Speed:
-
0.8km/h
-
Turning Radius (Inside):
-
0.1m
-
Turning Radius (Outside):
-
2.2m
-
Up/Down Time:
-
60s/35s
-
Gradeability:
-
25%
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Acntruck
-
Power:
-
30A
-
Table Size:
-
2.30m*1.12m
-
Weight:
-
2900 kg
-
Work Height:
-
11.80m
-
Platform Capacity:
-
350kg
-
Capacity on Deck Extension:
-
113kg
-
Max. Number of Workers:
-
2
-
Drive Speed (Stowed):
-
3.5km/h
-
Raised Drive Speed:
-
0.8km/h
-
Turning Radius (Inside):
-
0.1m
-
Turning Radius (Outside):
-
2.2m
-
Up/Down Time:
-
60s/35s
-
Gradeability:
-
25%
PRODUCT DETAILS

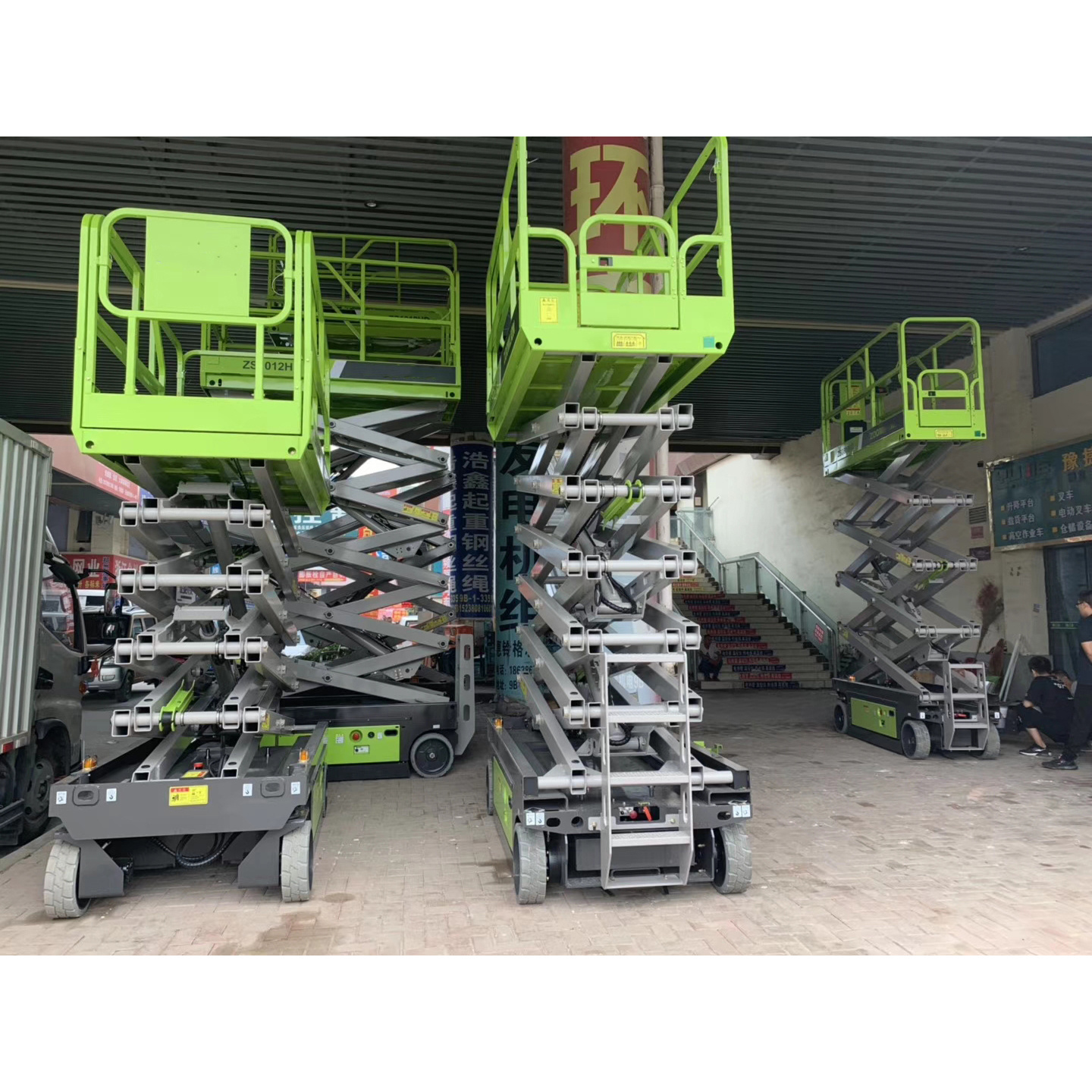

Electric scissor lift truck 12m height mobile man lift ZS1012HD
ZS1012HD-Li
HD-Li series scissor lifts offer an excellent combination of working heights and lifting capacity capabilities with hydraulic drive motors and Lithium power. Our Li-ion batteries have a 5-year warranty with triple longer life than the traditional lead acid ones. With Smart Battery Management System (BMS) and the preheating function built-in for cold weather regions as low as -20°C, this series boost productivity and operator confidence with safety power.
PRODUCT PICTURES
PRODUCT SPECIFICATIONS
|
Main Specs of Scissor Lifts (HD-Li) ZS1012HD-Li
Comply with CE/ANSI/GB Standard
|
ZS1012HD-Li
|
|
|
|||
|
Work Height
|
11.80m
|
Platform Capacity
|
350kg
|
|||
|
Platform Height-Elevated
|
9.80m
|
Capacity on Deck Extension
|
113kg
|
|||
|
Platform Height-Stowed
|
1.33m
|
Max. Number of Workers
|
2
|
|||
|
Platform Dimension (Length)
|
2.30m
|
Drive Speed (Stowed)
|
3.5km/h
|
|||
|
Platform Dimension (Width)
|
1.12m
|
Drive Speed (Raised)
|
0.8km/h
|
|||
|
Platform Extension
|
0.91m
|
Turning Radius (Inside)
|
0.1m
|
|||
|
Overall Height (Rails Up)
|
2.46m
|
Turning Radius (Outside)
|
2.2m
|
|||
|
Overall Height (Rails Down)
|
1.92m
|
Up/Down Time
|
60s/35s
|
|||
|
Overall Length
|
2.49m
|
Gradeability
|
25%(14°)
|
|||
|
Overall Width
|
1.15m
|
Max. Working Slope (Lateral/Vertical)
|
1.5°/3°
|
|||
|
Wheelbase
|
1.85m
|
Control
|
Proportional Control
|
|||
|
Ground Clearance (Stowed)
|
0.11m
|
Drive
|
Front Wheels
|
|||
|
Ground Clearance (Raised)
|
0.02m
|
Brake
|
Rear Wheels
|
|||
|
Battery
|
200Ah Li-ion
|
Gross Weight
|
2900kg
|
|||
|
Charger
|
24V/30A
|
|
|
|||
|
Charger (Option)
|
24V/60A
|
|
|
|||
