- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
KSD301
-
Type:
-
thermal protector
-
Cycle lifetime:
-
100000 Times
-
Size:
-
8.4*6.4*4.3mm or others
-
Application:
-
water dispenser,microwave oven,water heater
-
Reset Type:
-
Auto Reset/Manual Reset/Power-off reset
-
Shell material:
-
Black bakelite or white ceramic
-
Installation ring type:
-
Fixed ring/movable ring/without ring
-
Action temp range:
-
-10~300℃
-
Keywords:
-
Temperature controlled switches
-
OEM support:
-
Yes
-
Certification:
-
CQC,UL,TUV,VDE
Quick Details
-
Voltage:
-
250V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BOK
-
Model Number:
-
KSD301
-
Type:
-
thermal protector
-
Cycle lifetime:
-
100000 Times
-
Size:
-
8.4*6.4*4.3mm or others
-
Application:
-
water dispenser,microwave oven,water heater
-
Reset Type:
-
Auto Reset/Manual Reset/Power-off reset
-
Shell material:
-
Black bakelite or white ceramic
-
Installation ring type:
-
Fixed ring/movable ring/without ring
-
Action temp range:
-
-10~300℃
-
Keywords:
-
Temperature controlled switches
-
OEM support:
-
Yes
-
Certification:
-
CQC,UL,TUV,VDE
Product Description
Features:
1.Round volume with mounting ring, easy to install,
2.High service life, high current bearing,
3.Terminal opening is flexible and varied,
4.The installation method can be customized by customers.
Electrical Specifications:
24VDC/48VDC 10A/16A
125VAC/250VAC 10A/16A
Technical Parameters:
Contact type: normally open/normally closed
Range of action: -10℃-270℃
1.Round volume with mounting ring, easy to install,
2.High service life, high current bearing,
3.Terminal opening is flexible and varied,
4.The installation method can be customized by customers.
Electrical Specifications:
24VDC/48VDC 10A/16A
125VAC/250VAC 10A/16A
Technical Parameters:
Contact type: normally open/normally closed
Range of action: -10℃-270℃
Temperature Tolerance: ±5℃/±10℃
Contact resistance: ≤50mΩ
Dielectric strength: AC50Hz 1800V/min No breakdown blinging(normal state)
Action life: ≥100,000 times
Contact resistance: ≤50mΩ
Dielectric strength: AC50Hz 1800V/min No breakdown blinging(normal state)
Action life: ≥100,000 times
Shell material:
Black bakelite/white ceramic
Installation ring type:
Fixed ring/movable ring/without ring
Customizable reset methods:
Automatic reset/manual reset/no reset/power off reset
Black bakelite/white ceramic
Installation ring type:
Fixed ring/movable ring/without ring
Customizable reset methods:
Automatic reset/manual reset/no reset/power off reset

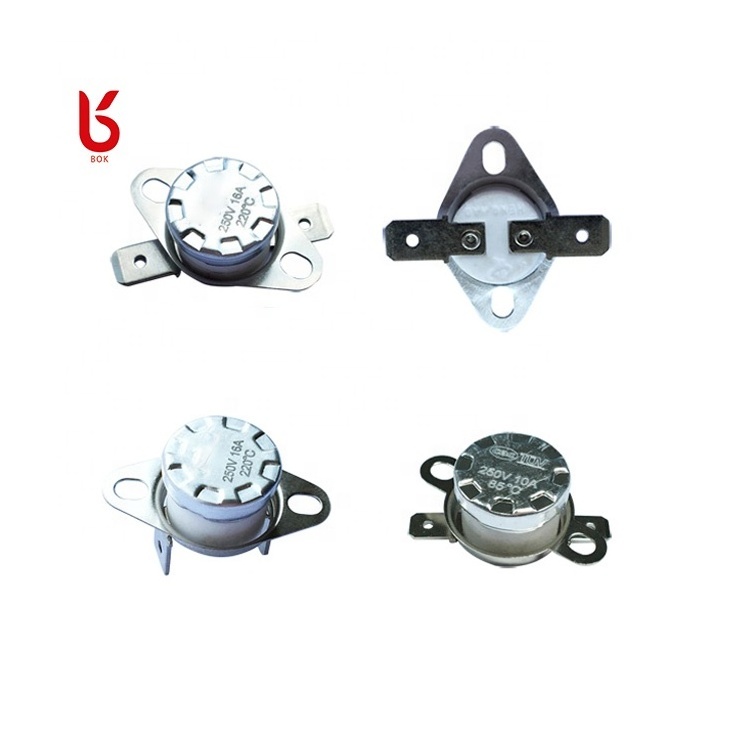

The thermostat KSD301 Series products are mainly used for electric motor ,heating water dispensers, kettles,disinfection cabinets, coffee machines, electric irons, dryers, water heaters,rice cookers,heaters, disinfection cabinets and motor cleaners,etc..
