Chinese wholesale suppliers gas thermocouple universal thermocouple for gas oven

Chinese wholesale suppliers gas thermocouple universal thermocouple for gas oven

FOB Reference Price: Get Latest Price

≥1000 Pieces

US $2.1

≥10000 Pieces

US $1.89

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power Source:: Gas

Place of Origin:: Zhejiang, China

Brand Name:: BNGAS

Model Number:: B2214-1

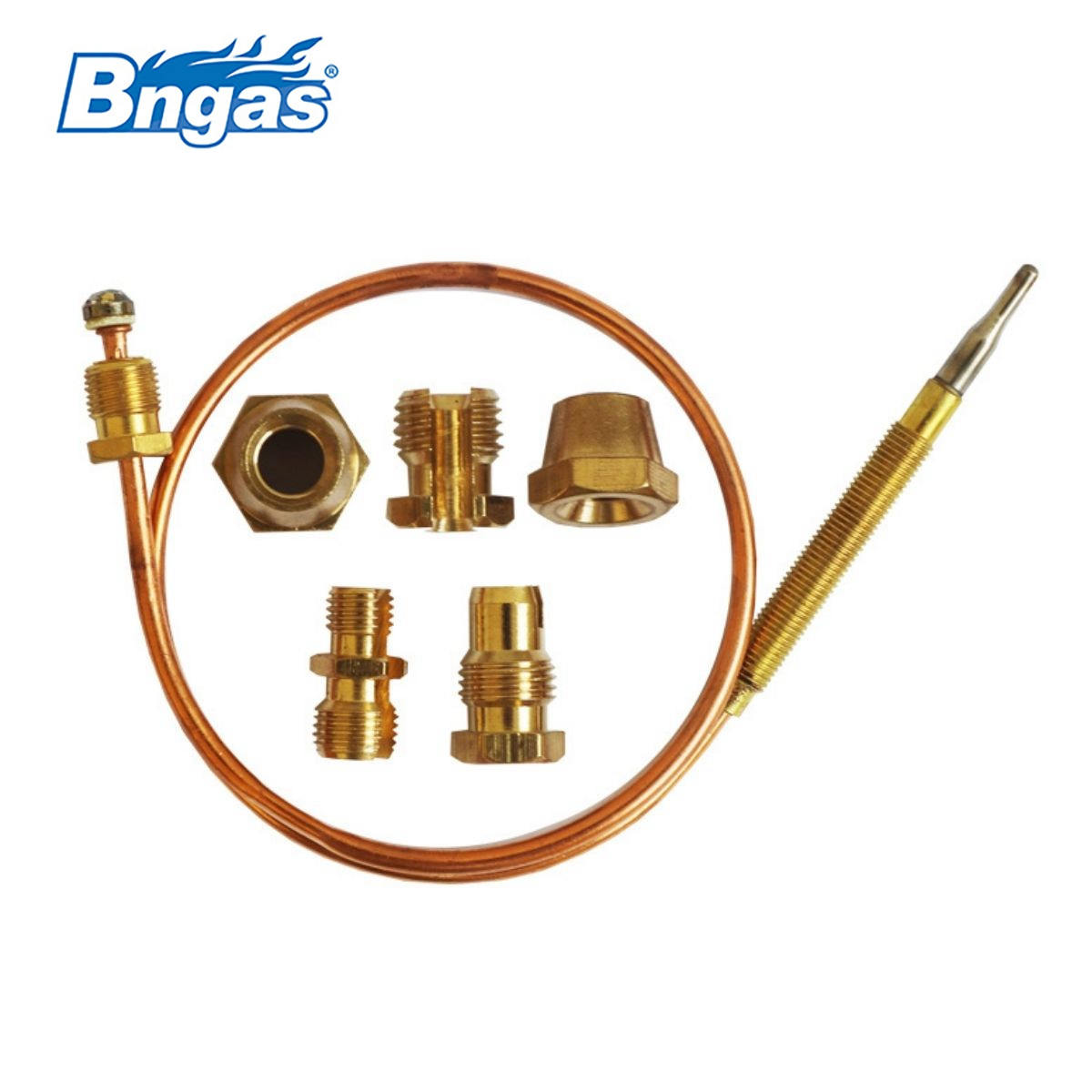

Name:: universal thermocouple for gas oven

Thermocouple head:: copper

Certification:: CE/EU

Thermocouple length:: 300mm/600mm/900mm/1200mm

Voltage:: Potential Voltage:≥30mv

Fixing method:: Screwed or Stucked

Feature:: Safe and eco-friendly

Thermocouple Tip Connector:: Customized

Quick Details

After-sales Service Provided:: Free spare parts

Warranty:: 1 Year

Application:: RV, Hotel, Commercial, Household

Power Source:: Gas

Place of Origin:: Zhejiang, China

Brand Name:: BNGAS

Model Number:: B2214-1

Name:: universal thermocouple for gas oven

Thermocouple head:: copper

Certification:: CE/EU

Thermocouple length:: 300mm/600mm/900mm/1200mm

Voltage:: Potential Voltage:≥30mv

Fixing method:: Screwed or Stucked

Feature:: Safe and eco-friendly

Thermocouple Tip Connector:: Customized

Material	Brass/ Stainless steel/ Steel/ Other
Tip connector	M8/ M9/ M10 4.8x0.5/ 6.3x0.8
Compression olive	4 mm, 6 mm, 1/4”
Length	≤2000mm
Supply ability	50000pcs/month
Application	Gas heater/ BBQ/ Pizza oven/ Fireplace/ Water heater/ Gas stove
Packaging	Customizable
MOQ	1000pcs

Choose BNGAS to Custom Gas Heater Thermocouple

We aim to produce Good-quality and reasonable unit-price gas thermocouples as effortlessly as possible. BNGAS offers a comprehensive range of gas heater parts & products for you.

After 100% self-inspect of our gas heater thermocouple, oven thermocouple, gas hob thermocouple, and pilot thermocouple, we will deliver them to our clients asap.

Gas Thermocouple: Definition & Uses in Gas Heating Equipment

A thermocouple is a safety device that works by the temperature change of voltage output.

A thermocouple can produce a small voltage output by two different metals or wires forming a measurement junction at the sensor’s tip on the device.

When two different metals are heating, they can be produced an electrical current.

This voltage will let the gas valve close or open or remain open.

Gas Heater Thermocouple Selection & Installation

How to correctly select and install thermocouples is essential to your equipment’s can work stably.

Thermocouples are available in different lengths of connecting copper tubing and are used provided that the thermocouple can be easily made to connect to the gas valve. The thermocouple copper tubing is usually coiled to prevent scratching, kinking, or sharp bending.

Troubleshooting Thermocouples

After you have determined that the fault occurred in the Thermocouple, there are generally two most common problems with thermocouples.

* The head of the Thermocouple is not correctly positioned in the flame.

* The Thermocouple’s connecting tube is damaged or excessively twisted.

You can get the Gas Pocket Thermocouple Tester from BNGAS.

1. Insert the Thermocouple into the tester.
2. Tighten the knurled sleeve until the TC is secured.
3. Press and hold the white button apply heat to the TC for 20/30 seconds, then release the button. The button will remain held for approx. 20 seconds if the TC is OK.

What is the Gas Heater Thermocouple

A thermocouple is an electrical safety device that verifies that the flame of your gas equipment is burning properly, and responds to temperature change by voltage output change.

It is usually used in combination with a pilot burner. If pilot combustion is a necessary safety device in using gas equipment, the thermocouple is the soul of it and it plays a decisive role.

BN4407BNGAS® universal gas heater thermocouple fits most pilot burners on 30-millivolt systems. Our gas thermocouple is easy installation and has a long-time service time.

* It works with the pilot burner for use with gas furnaces, boilers, water heaters, and fireplaces.
* The adapter can be easily mounted on most pilot burners, including clamp-in, push-in, and screw-in burners.
* Universal adapter fits clamp-in, push-in, and screw-in-type pilot burners.
* Long-time service time.
