- Product Details
- {{item.text}}
Quick Details
-
Ink Type:
-
eco solvent ink, water based ink, sublimation ink
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Mimage
-
Voltage:
-
220V
-
Dimensions(L*W*H):
-
2480x730x1475mm
-
Weight:
-
200 KG
-
Core Components:
-
board
-
Product name:
-
Sublimation printer
-
Print head:
-
XP600, DX5, DX7, 4720
-
Ink Color:
-
4 (CMYK)
-
Ink Tank Volume:
-
1500ml
-
Ink Supply Type:
-
Negative pressure CISS
-
Interface:
-
Network port printing
-
Head cleaning:
-
automatic cleaning
-
Heating System:
-
Fore/middle/after heating
-
Operating system:
-
WinXP/Win7
-
Application:
-
Indoor & Outdoor printing
Quick Details
-
Print Dimension:
-
1600mm
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Ink Type:
-
eco solvent ink, water based ink, sublimation ink
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Mimage
-
Voltage:
-
220V
-
Dimensions(L*W*H):
-
2480x730x1475mm
-
Weight:
-
200 KG
-
Core Components:
-
board
-
Product name:
-
Sublimation printer
-
Print head:
-
XP600, DX5, DX7, 4720
-
Ink Color:
-
4 (CMYK)
-
Ink Tank Volume:
-
1500ml
-
Ink Supply Type:
-
Negative pressure CISS
-
Interface:
-
Network port printing
-
Head cleaning:
-
automatic cleaning
-
Heating System:
-
Fore/middle/after heating
-
Operating system:
-
WinXP/Win7
-
Application:
-
Indoor & Outdoor printing
Product Description

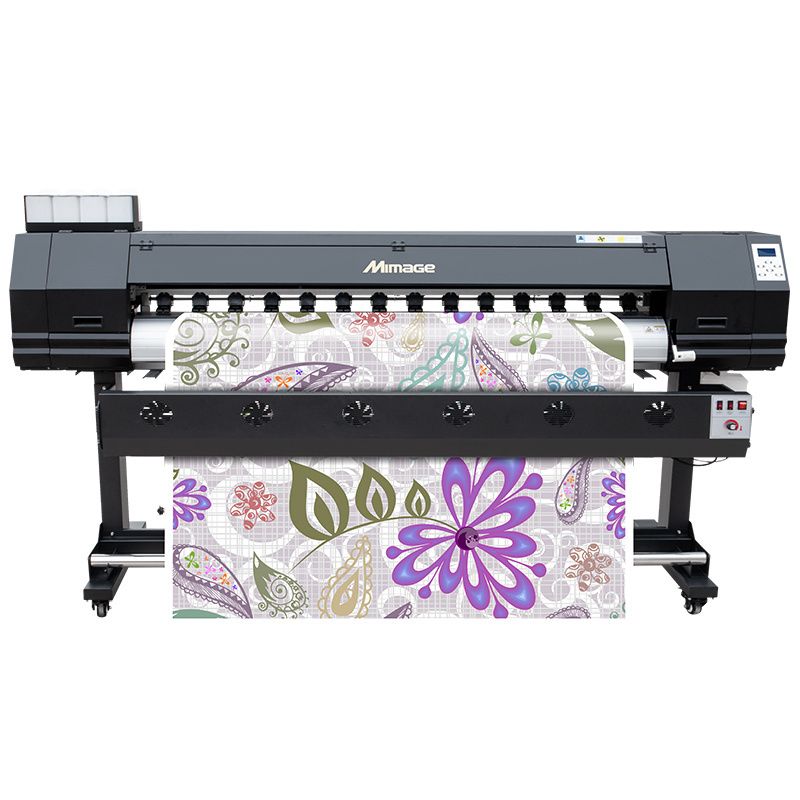

Mimage 1.6m / 1.8m large format printer, is using LOCOR classical fast speed platform, which realize much faster speed as well as high quality printing. Optional print head: Epson XP600 /DX5 /DX7 /4720, single head or double heads, to meet different clients' need.
Specification
|
Model
|
|
M16S
|
|
||
|
Print Head
|
|
Epson XP600/DX5/4720 * 1
|
Epson XP600/DX5/4720 * 2
|
||
|
Print resolution
|
|
Max 1440dpi (4720: 3200 dpi)
|
Max 1440dpi (4720: 3200 dpi)
|
||
|
Feeding Width
|
|
1650mm
|
1650mm
|
||
|
Print Width
|
|
1600mm
|
1600mm
|
||
|
Print Speed
|
4 Pass
|
15.9 m
²
/h
|
35 m²/h
|
||
|
|
6 Pass
|
12.3 m²/h
|
28 m²/h
|
||
|
Ink
|
Ink Type
|
Eco solvent ink / water-based ink / Sublimation Ink
|
|
||
|
|
Color
|
CMYK 4 colors
|
|
||
|
|
Tank volume
|
1500ml tank for each color
|
|
||
|
|
Supply type
|
Negative Pressure CISS continuous ink supply
|
|
||
|
Print Media
|
Water-based Media
|
PP self-adhesive vinyl, backlit film, photo paper, movable PP self-adhesive vinyl, photo cloth etc.
|
|
||
|
|
Oil-based Media
|
photo paper , canvas ,car sticker, reflective film, PVC cold lamination film etc.
|
|
||
|
Heating System
|
|
Inside automatic smart micro control heating system
|
|
||
|
Drying System
|
|
Infrared heating system with fans
|
|
||
|
Media Loading & Take up
|
|
Standard
|
|
||
|
Cleaning System
|
|
Automatic cleaning
|
|
||
|
Data Transmission
|
|
1000M Network port
|
|
||
|
RIP Software
|
|
Maintop, Photoprint / ONYX (optional)
|
|
||
|
Power Supply
|
|
AC220V ± 10%, 50Hz/60HZ
|
|
||
|
Power
|
|
Stanby: 32W, Max: 2300W
|
|
||
|
Operation Environment
|
|
temperature 15° C-30° C
relative humidity 40-60% RH
|
|
||
|
Package Size and Weight
|
|
2440*766*665mm / 240kg±5%
|
2440*766*665mm / 250kg±5%
|
||
Our Advantages
Imported THK guide rail, stable servo motor, external infrared heating, true three phase heating (front /middle /back), LED light strip, secondary ink cartridge, etc. Higher configuration makes our machines more competitive in the market.
Details Images
Applications
Guaranteed Service Support:
1 Year Warranty for printer
3 Years Warranty for boards
whole life after sales service, professional engineers team for technical support and solutions
More than 17 years rich printer experience
Pre-Sales professional team for quotations & solution suggestions for outdoor & indoor / sublimation / UV flatbed
1 Year Warranty for printer
3 Years Warranty for boards
whole life after sales service, professional engineers team for technical support and solutions
More than 17 years rich printer experience
Pre-Sales professional team for quotations & solution suggestions for outdoor & indoor / sublimation / UV flatbed
Company Profie
Zhengzhou Lecai Science and Technology Co,. Ltd
, known as
Locor
, is among the first inkjet printer factories since 2003 in China before US NOVAJET. In the past 17 years, Lecai has sucessfully developed global distribution system with popular high quality brands " Easyjet" "Deluxejet" and "Ultrajet" series.
To better serve our global customers, we set up branch company, Zhengzhou Hongcai Digital Technology Co,. LTD , with our Factory Direct Supply brand Mimage .
In the past years, Mimage have gained great popularity in dometic market with stable performace and cost effetive features for online business, and now we hope these 2 brands will both bring you more business.
To better serve our global customers, we set up branch company, Zhengzhou Hongcai Digital Technology Co,. LTD , with our Factory Direct Supply brand Mimage .
In the past years, Mimage have gained great popularity in dometic market with stable performace and cost effetive features for online business, and now we hope these 2 brands will both bring you more business.
Packing & Delivery
FAQ
Warmly welcome all partners to join us for mutual benefits cooperation.
1) What's your delivery time?
Shipment will be within 3~5 working days after received the deposit. And we keep some models in stock all year round.
2) What payment methods are supported?
Payment methods are Alibaba, T/T, D/P, Western Union, Credit Card, etc.
3) If I have some technical problem, how can you help us to solve it?
Detailed description, photos or video will help our technician analyze the problem and give solutions accordingly.
4) Once there is something need to replace, what can I do?
We are factory, all spare parts are available, can be delivered to user's office by DHL. Besides, we suggest users order common spare parts for long time maintenance and fast replacement.
5) Can we send our technician to your factory for training?
Yes, you are warmly welcomed to visit us for free training.
