10 Ton/H Metal Plastic Double Shaft Shredder Machine rebar organic waste metal scrap crusher machine

10 Ton/H Metal Plastic Double Shaft Shredder Machine rebar organic waste metal scrap crusher machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $3800

≥3 Sets

US $3200

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power (kW):: 55

Weight (KG):: 7500

Name:: Metal Shredder

Keyword:: Metal shredder, metal crusher, heavy shredder, double shaft shredder

Color:: Customizable

Application:: Crushing scrap metal, aluminum, plastics, steel and all other metals

Function:: Recovery and reuse of scrap metal and other materials

Crushing material:: Scrap metal, plastic, rubber, wood, tires and other waste.

Final product:: 1-10cm metal scraps

Advantage:: High Efficiency Low Energy

Suit for:: Waste recycling and reuse

Raw material:: All scrap metal, wood, plastic, rubber, tires and other waste

Quick Details

Place of Origin:: Henan, China

Marketing Type:: 2024 Best Selling New Product

Brand Name:: Customizable

Power (kW):: 55

Weight (KG):: 7500

Name:: Metal Shredder

Keyword:: Metal shredder, metal crusher, heavy shredder, double shaft shredder

Color:: Customizable

Application:: Crushing scrap metal, aluminum, plastics, steel and all other metals

Function:: Recovery and reuse of scrap metal and other materials

Crushing material:: Scrap metal, plastic, rubber, wood, tires and other waste.

Final product:: 1-10cm metal scraps

Advantage:: High Efficiency Low Energy

Suit for:: Waste recycling and reuse

Raw material:: All scrap metal, wood, plastic, rubber, tires and other waste

Products

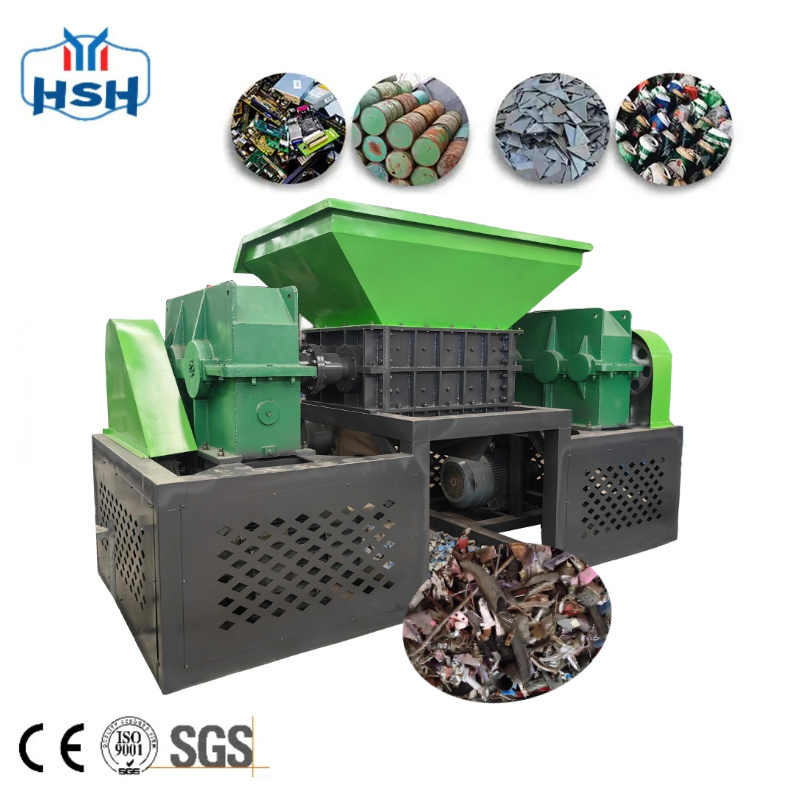

Double shaft shredder

Double shaft shredder, also known as shear shredder, is composed of national standard pure copper motor, aggravated speed reducer, thickened knife shaft, shredding blade set, carrying box and other main structures, is a
kind of coarse shredder, through shearing, tearing and extrusion to achieve the reduction of material size, used to deal with raw materials or Leftover material. The equipment adopts PLC automatic control system, with start, stop, reverse and overload automatic reverse control function, with low rotational speed, high torque, low noise and other characteristics.

Commonly Used Models

Model	Blade diameter	Spindle diameter (mm)	Reducer model	Motor	*LWH(mm）*
600	220mm	110mm	ZQ400*2	11kw-15kw*2	250011001600
800	300mm	140mm	ZQ500*2	18.5kw-22kw*2	300014001800
800	400mm	180mm	Square box 750*2	37kw*2	370018002200
800	400mm	180mm	Square box 750*2	45KW*2	370018002200
1000	400mm	180mm	Square box 750*2	45kw*2	390018002200
1200	400mm	180mm	Square box 750*2	45kw*2	410018002300
1400	500mm	260mm	Square box 850*2	55kw*2	470021002400
1600	500mm	260mm	Square box 1000*2	75kw*2	540024002600
1800	600mm	280mm	ZSY500*2	90kw*2	560024002800
2000	650mm	320mm	GX2KAH17*2	132kw*2	650025002800

Product Details

Speed reducer :

High-quality reducer with high torque, strong power and long service life, we have ZQ series, ZSY series, planetary series, square box series 4 kinds of reducer for you to choose, also can be customized according to your requirements.

Electric motors :

The motor adopts full copper core motor with low energy consumption and strong power, which improves the service life of the machine.

Blades :

Blades are made of alloy materials (e.g. 55SiCr, HD13, SKD-11), which are more wear-resistant and provide long service life and low maintenance costs Blade diameter, width and number of teeth can be customized according to the material.

Principal axis :

The spindle is made of hexagonal and octagonal shafts depending on the model, and is made of special alloy material for durability, smooth operation and long service life.

PLC power control system :

PLC power control system automatically detects the running data and automatically controls the forward and reverse function of the machine, which makes the machine run more smoothly.

Wide Range of Applications

The machine is suitable for crushing the following materials:

1.Vehicle parts: waste tires, wheel hubs, oil filters, engine shells, waste copper and aluminum parts, waste steel plates with a thickness of less than 10 mm, and waste iron forklift pallets.

2.Metal products: steel bars, aluminum profiles, cans, metal cans, aluminum scrap, steel scrap, iron sheets, copper sheets, metal drums and other scrap metal materials.

3. Garbage: domestic garbage, kitchen garbage, industrial garbage, garden garbage, glass products.

4. Plastic products: plastic pipes, fittings, plastic buckets, plastic bottles, paint buckets, plastic frames, plastic blocks, plastic cans, film rolls and woven bags.

5.Wooden paper: branches, stumps, building templates, wood blocks, newspapers, cardboard, corrugated paper, copy paper.

6.electronics and electrical appliances: refrigerator casings, circuit boards, computer casings, CD-ROMs, waste TV sets, washing machines.

7. Medical waste: small medical devices, medical waste, pharmaceutical waste, infectious waste, various plastic waste,latex material waste, syringe waste.
