Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Darlly
-
Certification:
-
ISO9001:2015
-
Type:
-
String Wound Filter Cartridge
-
Filter Media:
-
Polypropylene, Bleached Cotton, Glass Fiber
-
Outside Diameter:
-
63mm/115mm
-
Length:
-
9.75/9.87/10/20/30/40''
-
Application:
-
Water Treatment
-
Max. Operating DP:
-
2.0 bar@ 25℃
-
Max. Operating temperature:
-
PP:80℃ Bleached cotton:120℃ Glass Fiber:200℃
-
Keywords:
-
Filter Element
-
Feature:
-
Deep Filtration
Quick Details
-
Weight (KG):
-
0.5
-
Marketing Type:
-
Hot Product
-
Core Components:
-
Filter Cartridge
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Darlly
-
Certification:
-
ISO9001:2015
-
Type:
-
String Wound Filter Cartridge
-
Filter Media:
-
Polypropylene, Bleached Cotton, Glass Fiber
-
Outside Diameter:
-
63mm/115mm
-
Length:
-
9.75/9.87/10/20/30/40''
-
Application:
-
Water Treatment
-
Max. Operating DP:
-
2.0 bar@ 25℃
-
Max. Operating temperature:
-
PP:80℃ Bleached cotton:120℃ Glass Fiber:200℃
-
Keywords:
-
Filter Element
-
Feature:
-
Deep Filtration
It's such a pleasure and an honor that our products can be showed to you.
If you are looking for this product, please click "
Send Inquiry
".
If you have other inquires, also can click "
Send Inquiry
'' or "
Contact Supplier
'' with the details.
With more than 25 years experiences, we believe we can provide the better service for you.

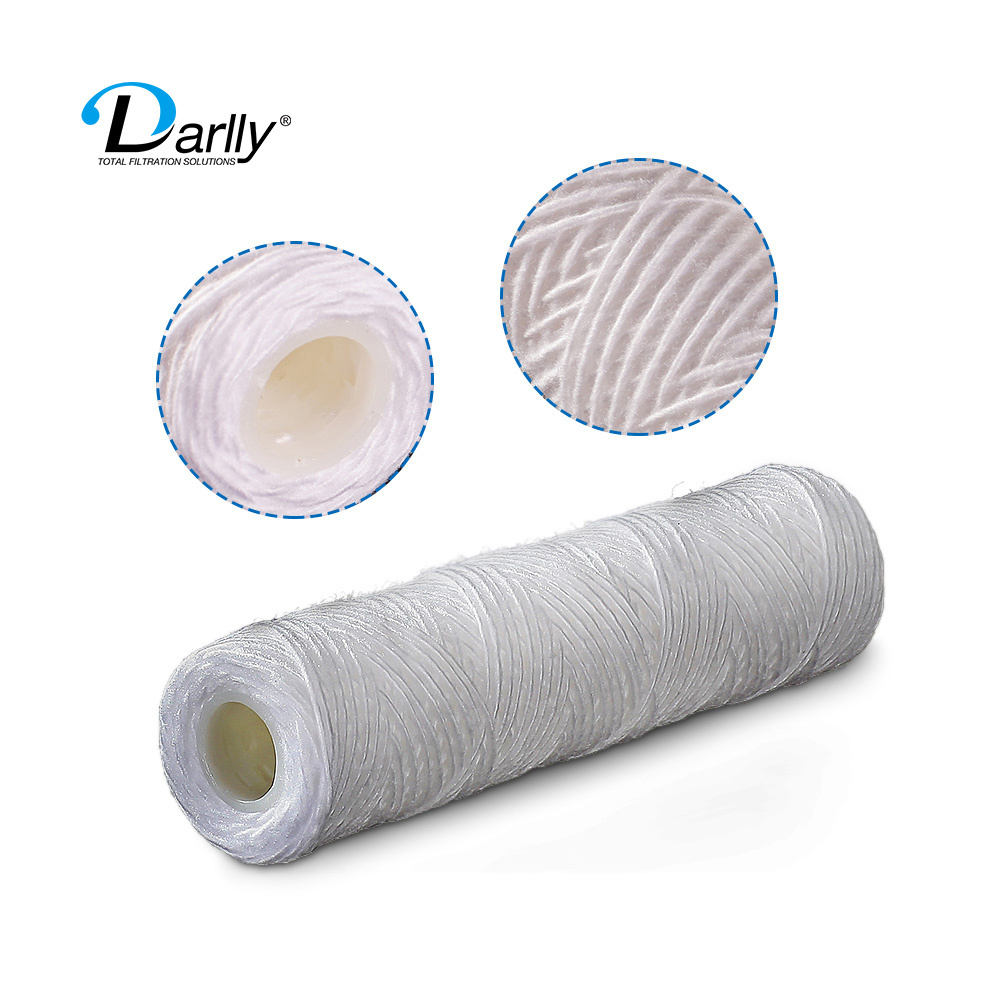

Zhejiang Manufacturer 10/20/30/40 Inch Water Filters Spun String Wound Filter Cartridge 5'' x2.5'' 10 Micron RO Filter Cartridge
Products Description
ESW Series String Wound Filter Cartridges are manufactured with structured loose outer layers and tight inner layers to offer true depth filtration for high dirt holding capacity and extremely low media migration. The main advantage of the string wound filter cartridge is its exceptionally high structural strength, therefore, they can withstand higher PSID and severe operating conditions. Economical design makes the filter has more cost advantage to help users reduce costs.
—————
Specifications
—————
|
Material of Constructions
|
|
|
|
Media
|
PP, Bleached Cotton, Glass Fiber
|
|
|
Inner Core
|
PP, SS
|
|
|
Dimension
|
|
|
|
Outer Diameter
|
60mm ( 2.4” ) , 115mm ( 4.5” )
|
|
|
Inner Diameter
|
28mm
|
|
|
Length
|
9.87”, 10”, 20”, 30”, 40”
|
|
|
Performance
|
|
|
|
Max. Operating temperature
|
PP：80℃ Cotton：120℃ Glass Fiber：200℃
|
|
|
Max. Operating DP
|
2.0 Bar@25℃
|
|
—————
Feature
—————
—————
Application
—————
• Consumer Products
• Food and Beverage
• Drinking Water
•
Biopharm
• Edible Oil
• Inks & Paints
• Photographic
• Plating Solutions
• Petrochemicals
• Waste Water
• Chemicals
• Oil
—————
Quality
—————
—————
Food Contact Compliance
—————
