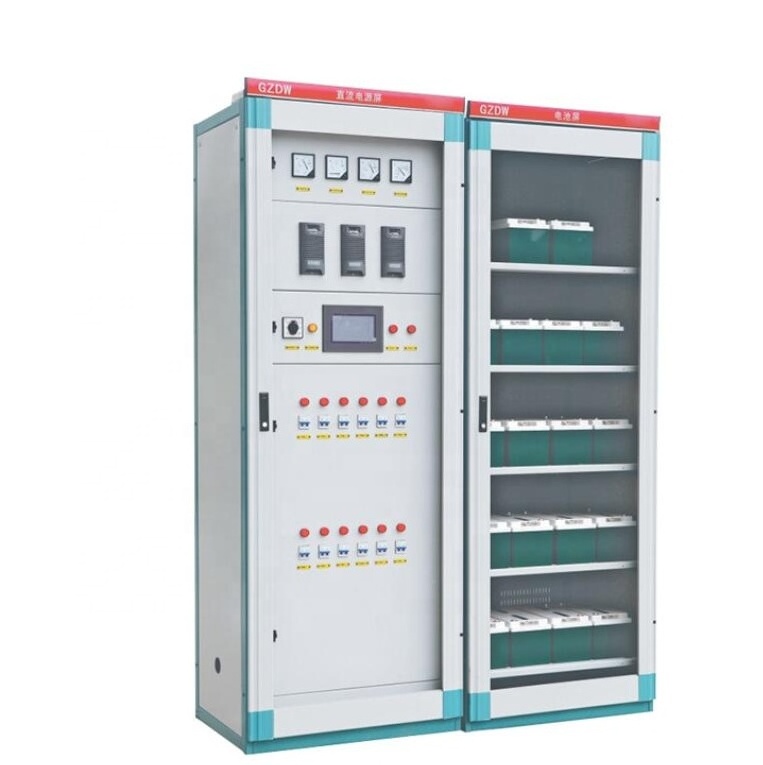

Manufacturer GZDW 380V 24-500AH DC Power Supply Distribution Cabinet

Product Description:

This series of DC panels has such features as small size, high efficiency, high technical index, module design n+1 heat redundancy backup, high reliability, module design . Adopted the world's latest advanced technology of Resonant voltage dual-loop control resonant switch power source"four remote operations, standard RS-485 and RS232 interfaces provided tor automation, also the other performances excel over the traditional power source of similar use.
Complied standards: GB/T 19826-2005 General specification and safety requirements for DC power supply equipment of power projects. JB/T 5777-4-2000 The general specification and safety requirements for D.C power supply equipment of power system. JB/ 8456-1996 Low-voltage D.C switchgear and controlgear assemblies DL/T 459-2000 Specifications of D.C supply cabinet in power system. DL/T 504195 Technical code for the design of fossil-fired power plant inner communication

Product features:

1.Full voltage auto drop
It can automatically switch on/off according to the voltage for closing operations, by use of stepless voltage drop device, or voltage step drop device, reliably and securely
2.Centrally monitor and control function
Central monitor device ordinate or control the running parameters/status of each part in DC panel, meanwhile collect the parameters of each function module and upload to host machine, transfer the command from the host machine. The structure designed as building brocks, the panel can supervise the input AC source voltage, current, of two loops, work mutually as the main and standby source for auto-switching n/off. ordinate or control the current and voltage of control busbars and closing busbars; battery voltage, battery discharging current, insulation parameter, supervise the operating status of the closing switch control switch, battery fuse, detection of the insulation for outgoing line (option), toured inspection of battery (option), monitoring ambient temperature
3.Multi-stage protections
Surge protector to prevent input over-voltage: output over-voltage protection; output current limiting protection; short circuit protection; module shunt protection; over-temperature, over-current protection, all of these can improve the safety and reliability of operation
4.Temperature compensation
According to the data provided by the battery factory, select the temperature compensation center and the coefficient automatically adjust the charging voltage, to meet the requirement of battery charging
5.Alarm function
After parameter set, it can perform different alarm functions, including under-voltage of control busbar, under-voltage of battery group, insulation abnormality, output switching status
6.N+1 Redundancy design
Change the qty and capacity of power source modules, to realize the free combination of output scheme of panels, to match different battery capacities, from 10Ah-3000Ah. Meanwhile, because this design executes n+ 1 redundancy arrangement when the capacity is small, it still can realize 1+1 standby.
7.Communication function
Through the selection of interface, it can shift the communication protocol between CDT and MODBUS.Two communication ports RS-485 and RS-232 to be selected for four remote operations
8.Battery-free of maintenance
Valve Regulated Lead Acid Battery, free of maintenance, is utilized, able to work securely and safely. It does not need to add acid or water. The smart controller can shift between average charge and float charge according to the presetting

Product  parameters:

Product details:

Production workshop:

Product packaging and transportation:

Product application case:

FAQ:
What is a switchgear?
A switchgear is a device used for controlling, protecting, and distributing electricity, commonly found in power systems and industrial electrical equipment.
What is the function of a switchgear?
The switchgear is used to control the flow of current, protect electrical equipment and power systems from the effects of current overload, short circuits, and other faults, and distribute current to various electrical equipment.
What are the different types of switchgear?
Common types of switchgear include low-voltage switchgear, medium voltage switchgear, and high-voltage switchgear, which are distinguished based on different voltage levels and usage scenarios.
What are the main components of a switchgear?
A switchgear typically includes components such as circuit breakers, load switches, protective devices, control components, and power connections.
What are the key points for selecting switchgear?
When selecting a switchgear, factors such as current load, voltage level, environmental conditions, protection functions, and control requirements need to be considered.
Does the switchgear require regular maintenance?
Yes, the switchgear needs regular inspection and maintenance to ensure its normal operation and safety performance.
Does the switchgear have a protective function?
Yes, switchgear usually includes functions such as short circuit protection, overload protection, undervoltage protection, etc. to protect the safe operation of electrical equipment and power systems.
