Quick Details
-
Model Number:
-
LM-300
-
Material:
-
Plastic
-
Power:
-
Power Cable
-
Voltage:
-
100-240V
-
Product name:
-
Digital Lensmeter
-
Function:
-
Test Optical Lens
-
Model:
-
LM-300
-
Sphere:
-
-40.00D~+25.00D
-
Cylinder:
-
0~±10.00D
-
Axis:
-
0°~180 Degree (1 Degree Steps)
-
Diopter:
-
0.01/0.12/0.25D
-
MOQ:
-
1 Unit
-
Weight:
-
3.67 KG
Quick Details
-
Warranty:
-
1 year, 1 year
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
VisualTech
-
Model Number:
-
LM-300
-
Material:
-
Plastic
-
Power:
-
Power Cable
-
Voltage:
-
100-240V
-
Product name:
-
Digital Lensmeter
-
Function:
-
Test Optical Lens
-
Model:
-
LM-300
-
Sphere:
-
-40.00D~+25.00D
-
Cylinder:
-
0~±10.00D
-
Axis:
-
0°~180 Degree (1 Degree Steps)
-
Diopter:
-
0.01/0.12/0.25D
-
MOQ:
-
1 Unit
-
Weight:
-
3.67 KG

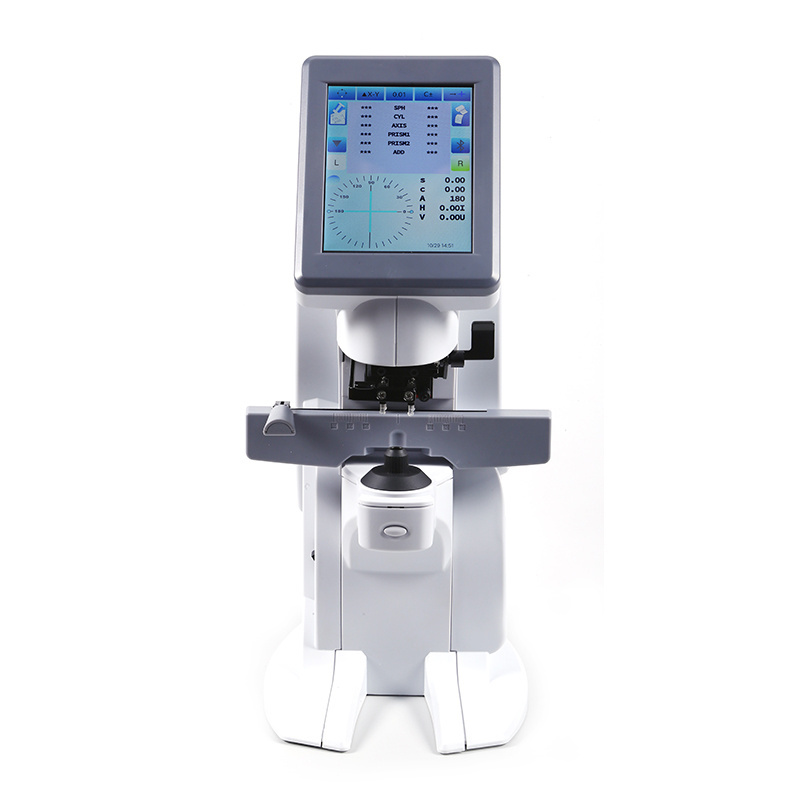

Product Description
Whole process of computer control& automatic reading. Highly sensitive optical path control for measuring various types of lenses , with automatic control calibration procedure for tiny deviation calibration duringg measurement . Full series with UV measurement , blue light measurement , visible light measurement , virtual pupil distance ruler , wireless Bluetooth function.
Features:
New operation interface
Capacitive touch screen
Automatic switching of left and right lens measurement
Automatic recognition of progressive lenses
Wide range of Sphere measurement : -40D ~+25D
Bluetooth supports the data transfer between auto lensmeter and mobile phone
( LM-300 APP is only available on Android system phone)
Specification
|
Measurement range
|
|
|
|
Sphere
|
-40.00D - +25.00D
|
|
|
Cylinder
|
0~±10.00D
|
|
|
Axis
|
O°~180°（1°step)
|
|
|
ADD
|
0~10.00D
|
|
|
Prism
|
0-20Δ
|
|
|
Minimum measuring value
|
|
|
|
Diopter
|
0.01/0.12/0.25D
|
|
|
Prism
|
0.01/0.12/0.25Δ
|
|
|
Other information
|
|
|
|
Cylinder
|
+/±/-
|
|
|
Prism
|
X-Y/P-B
|
|
|
Measure speed
|
0.05s
|
|
|
Light source wavelength
|
528mm
|
|
|
UV Wavelength
|
400m
|
|
|
Blue light wavelengrh
|
425nm
|
|
|
Lens diameter
|
20--100mm
|
|
|
Display
|
480*640 True color capacitor touch
|
|
|
Printer
|
Thermal Printer 57mm
|
|
|
Data connection
|
RS232 , Blue BLE，SPP
|
|
|
Size
|
192*244*409mm
|
|
|
Weight
|
3.67kg
|
|
|
Power supply
|
100-250V , 50hz/60hz
|
|
|
Power
|
5V 6A
|
|
