Quick Details
-
Brand Name:
-
hobbywing
-
Model Number:
-
SkyWalker
-
Current numerical value::
-
12AE 20A 30A 40A 50A 60A 80A
-
Name::
-
electron speed regulator
-
Model::
-
XRotor
-
Operation mode::
-
brushless
-
Applicable types::
-
drone /airplane
-
Connector ::
-
T/XT60
-
Throttle signal line ::
-
twisted-pair
-
Refresh rate::
-
621Hz
-
Internal resistance::
-
low
-
Current flow::
-
good
Quick Details
-
Use:
-
Vehicles & Remote Control Toys
-
Type:
-
ESC
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
hobbywing
-
Model Number:
-
SkyWalker
-
Current numerical value::
-
12AE 20A 30A 40A 50A 60A 80A
-
Name::
-
electron speed regulator
-
Model::
-
XRotor
-
Operation mode::
-
brushless
-
Applicable types::
-
drone /airplane
-
Connector ::
-
T/XT60
-
Throttle signal line ::
-
twisted-pair
-
Refresh rate::
-
621Hz
-
Internal resistance::
-
low
-
Current flow::
-
good
Product Introduction
SkyWalker 10A 15A 20A 40A 50A 60A fpv drone brushless ECS
Brand:
hobbywing
Model:
SkyWalker
Current value
:
12AE 20A 30A 40A 50A 60A 80A

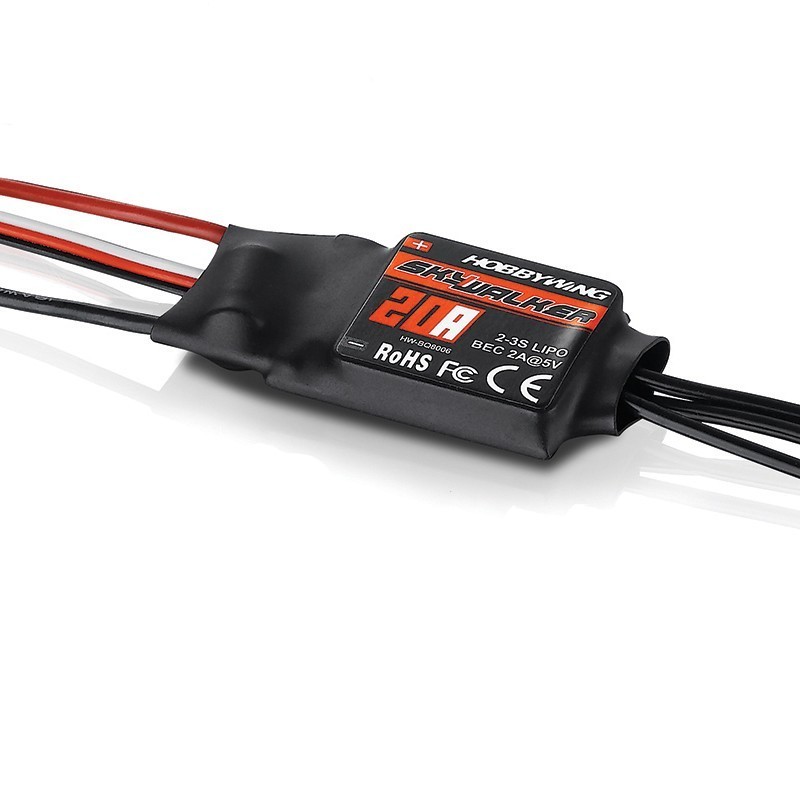

Product Name: SkyWalker 20A
Signal wire/length: 60 cores/200MM
Input voltage: lithium battery 2-3S/nickel hydrogen 5-9 sections
Size/Weight: 42x25X8MM/19g
Output current: continuous 20A/instantaneous 25A
Programming features: Remote control/LED setting card
BEC output: 5V/2A
Driving servo capacity: 2s-5/3S-4
Input line/length: 18AWG/100MM
Accelerator model frequency: 50Hz -432Hz
Output line/length: 18AWG/75MM
LED/LCD programming box: not supported
Maximum speed: 210000 RPM (pole motor), 70000 RPM (6-pole motor)
35000RPM (12 pole motor)
Product Name: SkyWalker 30A
Signal wire/length: 60 cores/200MM
Input voltage: lithium battery 2-3S/nickel hydrogen 5-9 sections
Size/Weight: 68*25*8MM/37g
Output current: continuous 30A/instantaneous 40A
Programming features: Remote control/LED setting card
BEC output: 5V/2A
Driving servo capacity: 2s-5/3S-4
Input line/length: 16AWG/100MM
Accelerator model frequency: 50Hz -432Hz
Output line/length: 16AWG/75MM
LED/LCD programming box: not supported
Maximum speed: 210000 RPM (pole motor), 70000 RPM (6-pole motor)
35000 RPM (12 pole motor)
Product Name: SkyWalker 40A
Signal wire/length: 60 cores/200MM
Input voltage: lithium battery 2-3S/nickel hydrogen 5-9 sections
Size/Weight: 68x25X8MM/39g
Output current: continuous 40A/instantaneous 55A
Programming features: Remote control/LED setting card
BEC output: 5V/2A
Driving servo capacity: 2s-5/3S-4
Input line/length: 14AWG/100MM
Accelerator model frequency: 50Hz -432Hz
Output line/length: 14AWG/75MM
LED/LCD programming box: not supported
Maximum speed: 210000 RPM (pole motor), 70000 RPM (6-pole motor)
35000 RPM (12 pole motor)
Product Name: SkyWalker 50A UBEC
Signal wire/length: 60 cores/280MM
Input voltage: lithium battery 2-4S/nickel hydrogen 5-12 sections
Size/Weight: 65x25X12MM/41g
Output current: continuous 50A/instantaneous 65A
Programming features: Remote control/LED setting card
BEC output: 5V/2A
Driving servo capacity: 2s-8/3S-6
Input line/length: 14AWG/100MM
Accelerator model frequency: 50Hz -432Hz
Output line/length: 14AWG/75MM
LED/LCD programming box: not supported
Maximum speed: 210000 RPM (pole motor), 70000 RPM (6-pole motor)
35000 RPM (12 pole motor)
Product Name: SkyWalker 60A UBEC
Signal wire/length: 60 cores/280MM
Input voltage: lithium battery 2-6S/nickel hydrogen 5-18 sections
Size/Weight: 77*35*14MM/63g
Output current: continuous 60A/instantaneous 80A
Programming features: Remote control/LED setting card
BEC output: 5V/5A
Driving servo capacity: 2s-8/3S-8/
4S-6
Input line/length: 14AWG/100MM
Accelerator model frequency: 50Hz -432Hz
Output line/length: 14AWG/75MM
LED/LCD programming box: not supported
Maximum speed: 210000 RPM (pole motor), 70000 RPM (6-pole motor)
35000 RPM (12 pole motor)
Product Name: SkyWalker 80A UBEC
Signal wire/length: 60 cores/280MM
Input voltage: lithium battery 2-6S/nickel hydrogen 5-18 sections
Size/Weight: 86*38*12MM/82g
Output current: continuous 80A/instantaneous 100A
Programming features: Remote control/LED setting card
BEC output: 5V/5A
Driving servo capacity: 2s-8/3S-8/
4S-6
Input line/length: 12AWG/150MM
Accelerator model frequency: 50Hz -432Hz
Output line/length: 14AWG/100MM
LED/LCD programming box: not supported
Maximum speed: 210000 RPM (pole motor), 70000 RPM (6-pole motor)
35000RPM (12 pole motor)
