Quick Details
-
Brand Name:
-
solenoid valve
-
Standard or Nonstandard:
-
Standard
-
Form:
-
plug and wire lead type
-
Operating Temperature:
-
-5~80°C
-
Orifice:
-
15mm
-
type:
-
normal colse ,normal open
-
Working pressure:
-
0-10bar
-
Voltage:
-
AC110V AC220V 24V DC 12V DC
-
For:
-
solenoid valve
-
Body material:
-
Brass , stainless steel
-
Principium:
-
directly acting type
-
Type:
-
BALL VALVES, Gate Valves, Stop & Waste Valves, Washing Machine Valves, Water Heater Service Valves, Gas Appliance Isolation Shut-Off Valves, Emergency Shut-Off Valves, Truck Shut-Off Valves, AXIAL VALVES, Metal Check Valves, Backwater Valves, Pressure Vacuum Breaker, Thermostatic Air-Vent & Vacuum Breaker, Adjustable Relief Valves, Temperature & Pressure Relief Valves, Combination Fill & Relief Valves, Purge Valves, Pressure Reducing Control Valves, Boiler Feed Valves, VENT Valves, Bypass Control Valves, Mixing Valves, Rupture Discs, SOLENOID VALVES, PLUG VALVES, Balancing Valves, ACCESS VALVES, Water Regulating Valves, Faucet Valve
Quick Details
-
Port Size:
-
1/8" to 2"
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
PU Series
-
Brand Name:
-
solenoid valve
-
Standard or Nonstandard:
-
Standard
-
Form:
-
plug and wire lead type
-
Operating Temperature:
-
-5~80°C
-
Orifice:
-
15mm
-
type:
-
normal colse ,normal open
-
Working pressure:
-
0-10bar
-
Voltage:
-
AC110V AC220V 24V DC 12V DC
-
For:
-
solenoid valve
-
Body material:
-
Brass , stainless steel
-
Principium:
-
directly acting type
-
Type:
-
BALL VALVES, Gate Valves, Stop & Waste Valves, Washing Machine Valves, Water Heater Service Valves, Gas Appliance Isolation Shut-Off Valves, Emergency Shut-Off Valves, Truck Shut-Off Valves, AXIAL VALVES, Metal Check Valves, Backwater Valves, Pressure Vacuum Breaker, Thermostatic Air-Vent & Vacuum Breaker, Adjustable Relief Valves, Temperature & Pressure Relief Valves, Combination Fill & Relief Valves, Purge Valves, Pressure Reducing Control Valves, Boiler Feed Valves, VENT Valves, Bypass Control Valves, Mixing Valves, Rupture Discs, SOLENOID VALVES, PLUG VALVES, Balancing Valves, ACCESS VALVES, Water Regulating Valves, Faucet Valve

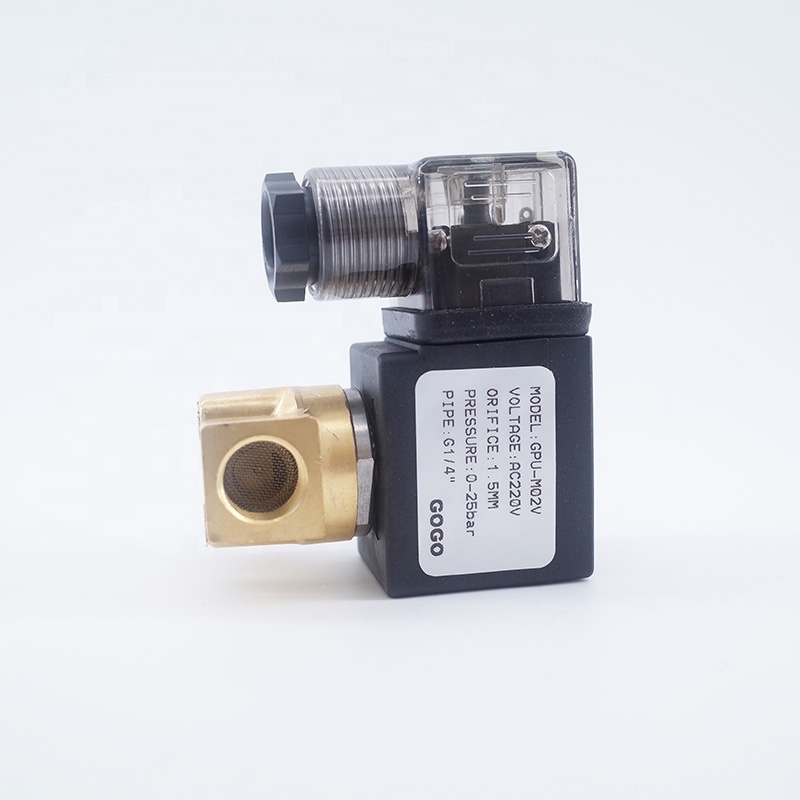

High quality FKM sealed brass zinc water solenoid valve
1. Normally closed
2. Normally open
Specification
| Model | Pipe |
Orifice
Diameter(mm) |
Principium | CV |
Body
material |
Seal | Work Pressure |
| PU-03 | 1/8" 1/4" | 2.5 |
direct
acting type |
0.3 |
Brass
or SS304 |
NBR | 0-10bar |
| PU-04 | 1/4" | 4 | 0.58 | 0-10bar | |||
| PU-05 | 1/4" | 5 | 0.65 | 0-7bar | |||
| PU-06 | 1/4" | 6 | 0.8 | 0-5bar | |||
| PU-10 | 3/8" | 15 |
Kick pilot
type |
4.6 | 0-10bar | ||
| PU-15 | 1/2" | 15 | 4.6 | 0-10bar | |||
| PU-20 | 3/4" | 20 | 8.5 | 0-10bar | |||
| PU-25 | 1" | 25 | 12 | 0-10bar | |||
| PU-35 | 1-1/4" | 35 | 24 | 0-10bar | |||
| PU-40 | 1-1/2" | 35 | 29 | 0-10bar | |||
| PU-50 | 2" | 50 | 48 | 0-10bar | |||
| PU-25F | Flange | 25 | 12 | 0-10bar | |||
| PU-35F | 35 | 24 | 0-10bar | ||||
| PU-40F | 40 | 29 | 0-10bar | ||||
| PU-50F | 50 | 48 | 0-7bar |
Dimensions
(mm)
| Size | A | B | C | D | E |
| DN2.5 | 40 | 26 | 66 | 27 | 30 |
| DN4/5/6 | 40 | 26 | 75 | 59.5 | 38 |
| DN10 | 65 | 47 | 93 | 59.5 | 38 |
| DN15 | 65 | 47 | 93 | 59.5 | 38 |
| DN20 | 72 | 54 | 100 | 59.5 | 38 |
| DN25 | 90 | 70 | 108 | 59.5 | 38 |
| DN35/40 | 120 | 90 | 131 | 64.5 | 48 |
| DN50 | 150 | 112 | 146 | 64.5 | 48 |
| DN35/40(DC) | 120 | 90 | 150 | 65.5 | 63 |
| DN50(DC) | 150 | 112 | 165 | 65.5 | 63 |
| Materials of construction | |||
| Parts in contact with the medium | |||
| Valve of body | Brass | SS304 | |
| Seals | NBR ,EPDM ,FKM | ||
| Magnetic isolation pipe | SS304 | ||
| Core | Stainless steel alloy | ||
| Spring | SS304 | ||
| The shading | Copper | ||
