Quick Details
-
Product Name:
-
AC EV Charger Wallbox
-
Output current:
-
32A
-
Wire length:
-
5 meters (Custom)
-
Protection level:
-
IP55
-
Output power:
-
7KW/
-
Communication:
-
WIFi, (Ethernet,4G Optional)
-
Material:
-
ABS+PC
-
Standards:
-
IEC 61851-1, IEC 62196-1/2
-
HMI:
-
4.3 inch LCD
-
Dimensions(W*H*D):
-
270*132*362mm(W*D*H)
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
PEVC2107E
-
Brand Name:
-
Piwin
-
Product Name:
-
AC EV Charger Wallbox
-
Output current:
-
32A
-
Wire length:
-
5 meters (Custom)
-
Protection level:
-
IP55
-
Output power:
-
7KW/
-
Communication:
-
WIFi, (Ethernet,4G Optional)
-
Material:
-
ABS+PC
-
Standards:
-
IEC 61851-1, IEC 62196-1/2
-
HMI:
-
4.3 inch LCD
-
Dimensions(W*H*D):
-
270*132*362mm(W*D*H)

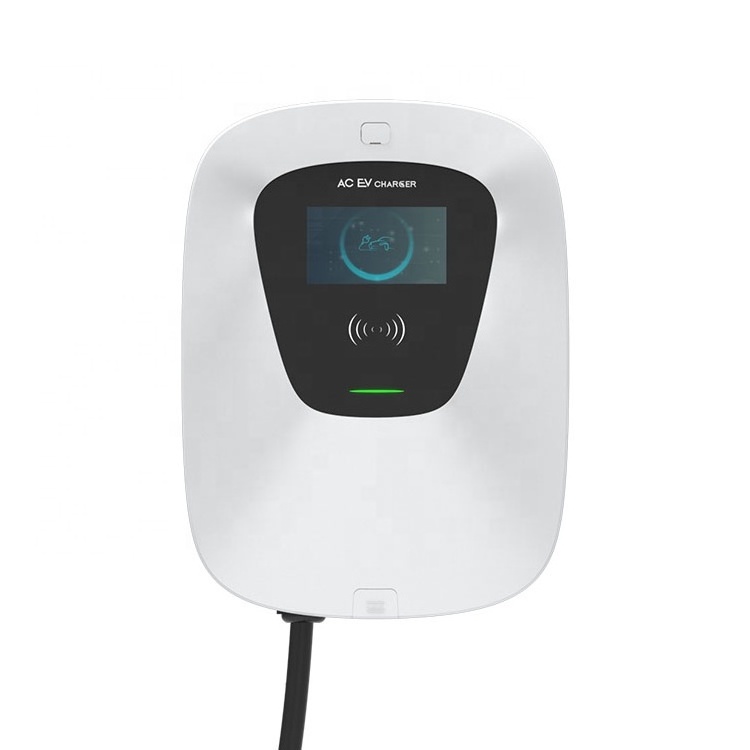

PEVC2107E AC EV Charger Wallbox
PEVC2107E
is an economical AC charging pile that is widely used in private parking spaces, electric vehicle manufacturers and real estate development companies; RFID reader, 4.3 inch touch screen, Ethernet/WiFi/4G Network Gateway,
The shell is made of ABS+PC mixed material with excellent flame-retardant performance and is suitable for various weathers.This design fully embodies the minimalist design idea, makes full use of the organic curved surface elements, and the unique circular aperture indicator is arranged around the charging plug storage seat,which has a strong overall sense, safety and reliability of industrial products, and a strong sense of technology.
Product Overview
WARRANTY
— 24-month warranty and life-time hassle-free technical support.
|
Material
|
ABS+PC
|
|
Installation
|
Wall-mounted/floor-standing
|
|
Size
|
Wall-mounted: 270*132*362mm(W*D*H)
Floor-standing: 270*194*1500mm(WD*H)
|
|
Protection
|
IP55
|
|
Input/Output
|
220VAC±20%/ 50Hz±5Hz
|
|
Power Factor
|
≥0.98
|
|
Output current
|
32A
|
|
Output Power
|
7KW
|
|
Cable length
|
5 Meters (Custom)
|
|
charging method
|
Swipe card
|
|
Charging connection method
|
Mode C (with gun)
|
|
Communication method
|
WIFi, Ethernet/4G （Optional）
|
|
HMI
|
4.3 inch LCD
|
|
Protective function
|
Over voltage protection, over current protection, short circuit protection, lightning protection, emergency stop protection, PE
connection detection protection, LIN reverse connection detection protection, over temperature protection, anti-dumping protection, leakage protection (A type leakage MCB) |
|
Operating temperature
|
-30℃-60℃
|
|
Storage temperature
|
-40℃-85℃
|
|
Operating Humidity
|
≤95%, non-condensing
|
