Brand
FOCUS
Product origin
Shandong Province China
Delivery time
3-5 days
Supply capacity
30 Sets / Month In stock!
- Product Details
- {{item.text}}
Quick Details
-
Graphic Format Supported:
-
CDR, AI, PLT, DXF, BMP, Dst
-
Cooling Mode:
-
Water-cooled
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FOCUS
-
Dimension(L*W*H):
-
1500mm*1100mm*1200mm
-
Weight (KG):
-
70 KG
-
Product name:
-
C02 Laser Engraving Cutting Machine
-
Function:
-
Cutting Engraving Non-metal Materials
-
Laser tube:
-
Co2 Sealed Glass Laser Tube
-
Laser power:
-
50W/60W/80W
-
After-sales Service Provided:
-
Online Support
-
Software:
-
CorelDraw, PhotoShop, AutoCAD
-
Highest Scanning Precision:
-
2500DPI
-
Cutting speed:
-
20-10000mm/min
-
Color:
-
Grey
Quick Details
-
Engraving Area:
-
60cm*40cm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
25-60000mm/min
-
Graphic Format Supported:
-
CDR, AI, PLT, DXF, BMP, Dst
-
Cooling Mode:
-
Water-cooled
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FOCUS
-
Dimension(L*W*H):
-
1500mm*1100mm*1200mm
-
Weight (KG):
-
70 KG
-
Product name:
-
C02 Laser Engraving Cutting Machine
-
Function:
-
Cutting Engraving Non-metal Materials
-
Laser tube:
-
Co2 Sealed Glass Laser Tube
-
Laser power:
-
50W/60W/80W
-
After-sales Service Provided:
-
Online Support
-
Software:
-
CorelDraw, PhotoShop, AutoCAD
-
Highest Scanning Precision:
-
2500DPI
-
Cutting speed:
-
20-10000mm/min
-
Color:
-
Grey
Product Description
Wedding Card Laser Paper Cutting Machine for Glass cups can make small wedding card, engraving glass surface, cutting paper, is designed for small business or home business for engraving/cutting logo, letters, Numbers, pictures, etc., can be used for wood, acrylic, glass, bamboo and other non-metallic materials
Product origin
Shandong Province China
Delivery time
3-5 days
Supply capacity
30 Sets / Month In stock!

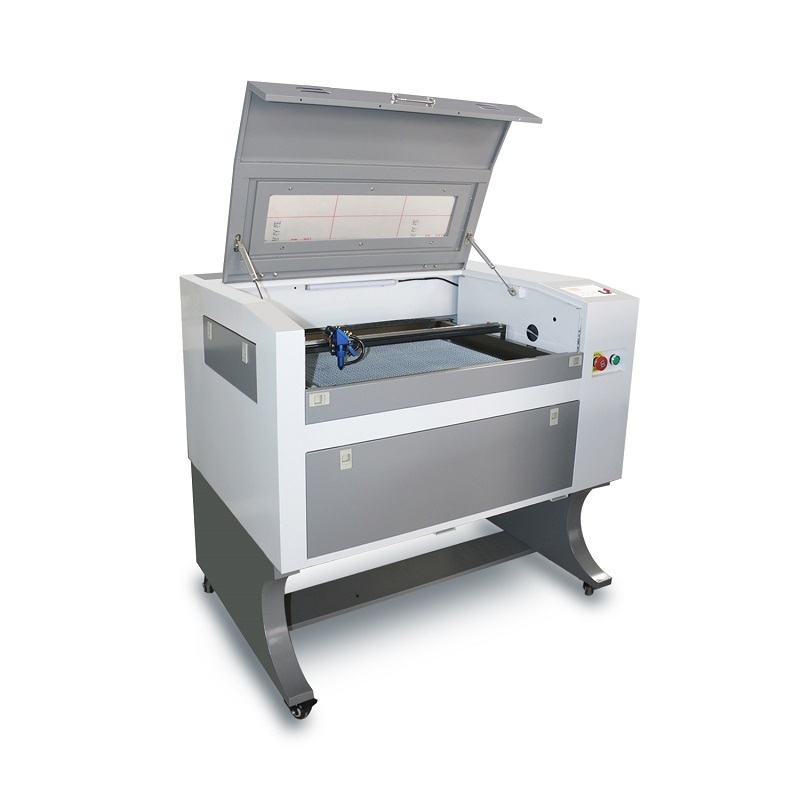

Product Display
Product Paramenters
|
Model
|
FS-4060
|
Software supported
|
CorelDraw, PhotoShop, AutoCAD
|
|
working area
|
60cm*40cm / 24in*16in (L*W)
|
Laser Output Control
|
1-100% software setting
|
|
Laser type
|
CO2 sealed laser tube
|
Highest Scanning Precision
|
2500DPI
|
|
Cooling type
|
water cooling
|
Location precision
|
0.1mm
|
|
Laser power
|
50w/60w/80w
|
Working temperature
|
5 to 45 degrees
|
|
Engraving speed
|
25-60000mm/min
|
Operating humidity
|
5%-95%(without condensed water)
|
|
Cutting speed
|
20-10000mm/min
|
Equipment Dimension
|
1500mm*1100mm*1200mm(L*W*H)
|
|
Power supply
|
220V±10% /50HZ , 110V±10%//60HZ
|
Net Weight
|
70KG
|
|
Min. shaping a character
|
Letter 1.0 x 1.0mm
|
Optional parts
|
Rotary device, CW3000 or CW5000 Water cooling system
|
|
Graphics format supported
|
BMP, PLT, DST, DXF, AI, CDR
|
Total power
|
<500w
|

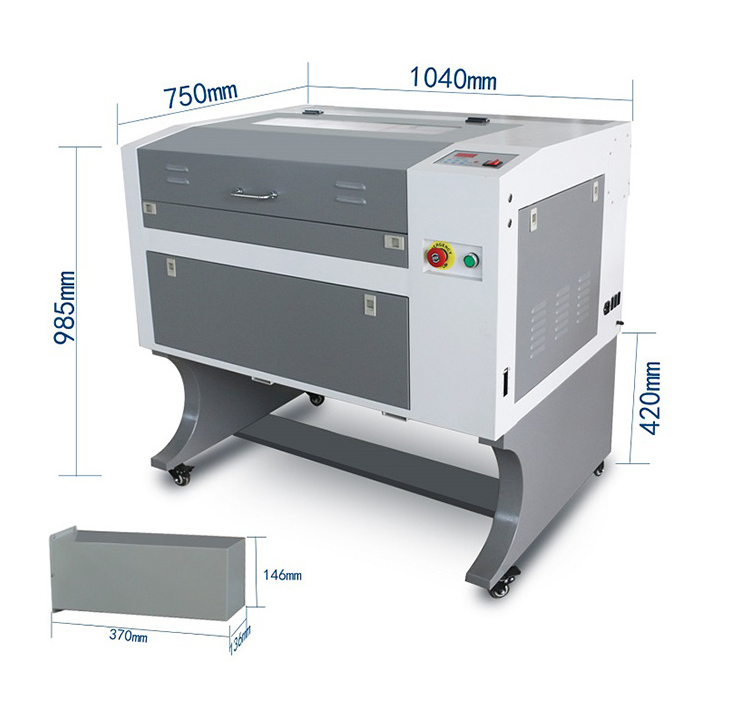

Product Size
Product Details
①Industrial laser head performance more stable.Equipped with red positioning system, positioning more accurate.Equipped with automatic blowing system, it can prevent the burning and cleaning of the lens.
②Rugged, low friction resistance, can effectively improve the working speed.
③Photoelectric induction switch works more accurately and has longer life
④Gear chain drive system, not easy to rust, more durable
⑤Control panel interface is simple, easy to learn, simple to operate, stable system.Graphics and files can be transferred both via cable or USB flash.
⑥The machine itself is equipped with multiple power sockets, which can be directly connected to the air pump and water pump
⑤Control panel interface is simple, easy to learn, simple to operate, stable system.Graphics and files can be transferred both via cable or USB flash.
⑥The machine itself is equipped with multiple power sockets, which can be directly connected to the air pump and water pump
⑦The back of the machine is designed with water inlet, outlet and air pump connector, which is easier to install. After receiving the machine, as long as the pump and air pump machine are connected correctly, it can work normally
Rotary
Simple rotary is suitable for regular cylinder, such as pen holder, cup, bamboo, etc., only need to put the engraving material on the simple rotary, the material will rotate with the roller.
Rotary fixture is suitable for all objects, there are no regular restrictions, if the irregular surface of the object engraving arc patterns, the best choice.
Rotary fixture is suitable for all objects, there are no regular restrictions, if the irregular surface of the object engraving arc patterns, the best choice.
Water-cooling system
The water cooling system can better cool down the laser engraving machine. The customer can choose the water cooling system if the machine is used very frequently or the high-power cutting ground is often used. It is recommended to use the water cooling system at 80W/100W/120W/150W
Product Applications
Laser engraving cutting machine application industry: wood plate cutting, advertising text, large surface cutting, garment proofing, leather industry, footwear industry, decoration industry, furniture industry, packaging and printing industry, model industry, craft gift industry.
Suitable materials for laser engraving and cutting machine: wood sheet, acrylic, plexiglass, glass, cloth, leather, paper, bamboo and wood products, thin film, etc
Suitable materials for laser engraving and cutting machine: wood sheet, acrylic, plexiglass, glass, cloth, leather, paper, bamboo and wood products, thin film, etc
|
Materials
|
Cutting
|
Engraving
|
|
Wood/Cork/Bamboo/Veneer/MDF
|
√
|
√
|
|
Acrylic/Rubber/Plexiglass/Pmma
|
√
|
√
|
|
Glass/Fiberglass
|
|
√
|
|
Mylar/Delrin/Matte Board
|
√
|
√
|
|
Fabric/Cloth/Textile/Garment
|
√
|
√
|
|
Leather/Pig leather/Cow leather/Sheep leather
|
√
|
√
|
|
Ceramic/Marble/Tile
|
|
√
|
|
Plastic
|
√
|
√
|
|
Melamine
|
√
|
√
|
|
Paper/Cardboard/Pressboard
|
√
|
√
|
|
Organic board / Double color plate
|
√
|
√
|
|
Corian
|
√
|
√
|
