Quick Details
-
Brand Name:
-
LiYuan
-
Product Name:
-
128 pin 2lines 8 digits 7 segment HTN LCD display
-
Series Number:
-
LY70916
-
Dimensional regular tolerance:
-
+/-0.2mm
-
Display type:
-
HTN
-
Display mode:
-
Negotive
-
Polarizer type:
-
Transmissive
-
Operating temperature:
-
-30℃~+80℃
-
Storage temperature:
-
-40℃~+90℃
-
Duty:
-
1/1
-
Bias:
-
1/1
Quick Details
-
Display Size:
-
Customized
-
Place of Origin:
-
Guangxi, China
-
Model Number:
-
LY70916
-
Brand Name:
-
LiYuan
-
Product Name:
-
128 pin 2lines 8 digits 7 segment HTN LCD display
-
Series Number:
-
LY70916
-
Dimensional regular tolerance:
-
+/-0.2mm
-
Display type:
-
HTN
-
Display mode:
-
Negotive
-
Polarizer type:
-
Transmissive
-
Operating temperature:
-
-30℃~+80℃
-
Storage temperature:
-
-40℃~+90℃
-
Duty:
-
1/1
-
Bias:
-
1/1
Product Name:Customized 128 pin 2lines 8 digits 7 segment HTN LCD display for petrol pump/fuel gispenser/gas station
Series Number: LY70916
Manufacturer : Liyuan
Technical Parameters :
|
Display Type |
HTN |
|
Display Format |
Negotive |
|
Polaroid type |
Transmissive |
|
Operating Temp erature |
-30℃ to +80℃ |
|
Storage Temperature |
-40℃ to +90℃ |
|
Driver Method |
1/1 duty, 1/1 bias |
|
Power Supply(Typ) |
5.0V |
|
Viewing Direction |
6:00 |
|
Connector |
Pin |
|

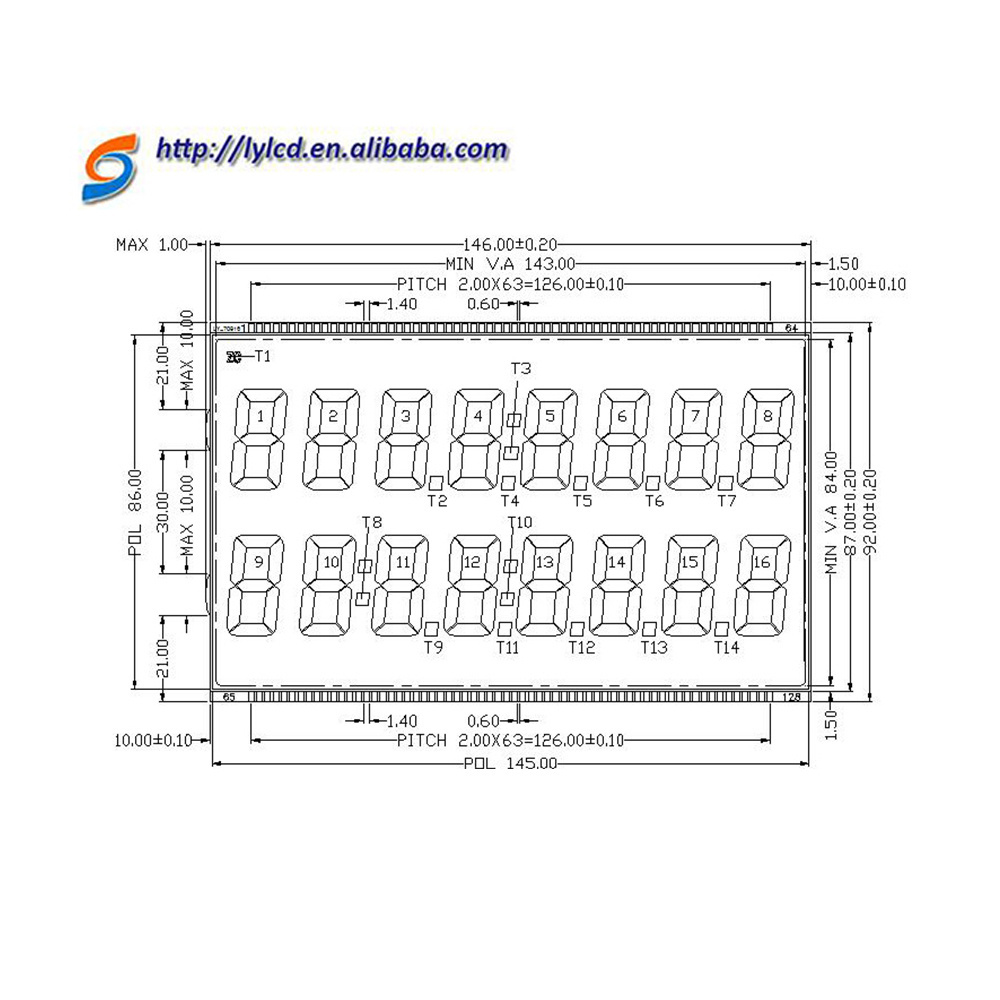

LCD Dimension |
146.00(L)X92.00/87.00(W) or customized |
|
View Area |
143.00(L)X84.00(W)mm or customized |
|
Backlight |
LED backlight |
Packaging:
- Foam tray inner+standard carton outer, packing quantity is according to the specific size and shape.
- Customized package with your logo and your specific images are available.
- Packing process consists chiefly of three steps as follows.
(1)confirm every specification of your goods;
(2)place poly foam into carton and pack your goods;
(3)conduct security test.
Delivery:
- Express: DHL; FedEx; UPS; TN; EMS; China Post; HK .
- S amples d elivery 3-4 weeks.
- Mass production d elivery 4-5 weeks.
Loading Port:
Shenzhen/Guangzhou/HK or other port of China.
- Segment LCD Display
- Dots Matrix LCD Display
- Character LCD Display
- Graphic LCD Display
- TN LCD Display
- HTN LCD Display
- STN/FSTN LCDDisplay
- VA LCD Display
- LCD Accessories
- LCM,COB,COG,TAB
Thousands of products produced over the years are mostly custom-made and are widely used in instrumentation, household appliances,communications equipment, automotive display,vehicle display, industrial equipment control and health care, instrumentation, medical equipment and other information terminal display.
Warmly welcome your orders for new LCD module customization, please noted as following:
Step1
>
Please send your original drawing paper, samples, or photos, if you haven’t these, please tell us your detailed requirement: LCD mode, type,size, color,active area, negative/positive, transmissive/transflective or what you can show.
Step2
>
According to your order requirements details, we will offer the products solution and estimated price for your reference.
Step3
>
We will offer the exact quotation through negotiating the technical data with you .
Step4
>
You arrange the tooling charge payment.
Step5
>
We make design drawing for your confirmation in 2 days.
Step6
>
New samples will be finished within 20 days.
Setp7
>
After samples confirmed, mass production will be arranged as per your order.
Please fill in and sent the form as below :
|
outline size |
Front glass size: (w)* (H)* (T)mm Rear glass size: (w)* (H)* (T)mm View area: (w)* (H)* mm |
|
LCD type |
TN( )STN( )HTN( )FSTN( )VA( )other( ) |
|
Driving voltage |
Volt |
|
Driving method |
Duty, Bias |
|
Polsrizer |
Reflective( ) Transflective( ) Transmissive( ) |
|
Special requirement for front polarizer |
UV protection( ) Anti-glare( ) Color( ) |
|
Display mode |
Positive( ) Negative( ) |
|
View angle |
6:00( ) 12:00( ) 3:00( ) 9:00 ( ) |
|
Interface |
Zebra( ) FPC( ) Pin( ) Other( ) |
|
Temperature |
Operating: ℃ ~ ℃ Storage: ℃ ~ ℃ |
|
Packaging |
Standard( ) Customization( ) |
|
Other requirement |
|
About Payment:
--T/T, L/C,Western Union, Paypal, Bank Transfer, Cash, Money Gram and Escrow or others.
--Sample order: You need pay 100% for the goods before drawing design chart.
--Formal order:You need pay 30% as the deposit before production, and pay the balance before shipment.
We will do our best to help you in customs delacration and promise that our goods are in reasonable price!
