8%-10 cement，30%-40% sand，50%-60% macadam
8%-10 cement，30%
Fly ash，60%
Sand or stone powder
- Product Details
- {{item.text}}
Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, Other, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Wanjun Machinery
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
4000*3500*2300mm
-
Weight (KG):
-
2900 kg
-
Production cycle:
-
15s
-
Name:
-
Hydraulic Cement Brick Block Making Machine
-
After-sales Service Provided:
-
Video Technical Online Support
-
Raw material:
-
Sand
-
Block Type:
-
Hollow Concrete Brick Machine
-
Product Name:
-
Concrete Block Machine Block Making Machine
-
Keywords:
-
Easy Operation Block Making Machine
-
Color:
-
Designated Color
-
Products:
-
Concrete Interlock Blocks
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, Other, Autoclaved aerated concrete block (AAC)
-
Brick Raw Material:
-
Cement
-
Production Capacity (Pieces/8 hours):
-
4480 pcs/8hours, 2500 pcs/8hours, 3400 pcs/8hours, 1920 pcs/8hours, 5760 pcs/8hours, 1500 pcs/8hours, 1280 pcs/8hours, 3000 pcs/8hours, 12000 pcs/8hours, 3200 pcs/8hours, 2560 pcs/8hours, 1000 pcs/8hours, 800 pcs/8hours
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, Other, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Wanjun Machinery
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
4000*3500*2300mm
-
Weight (KG):
-
2900 kg
-
Production cycle:
-
15s
-
Name:
-
Hydraulic Cement Brick Block Making Machine
-
After-sales Service Provided:
-
Video Technical Online Support
-
Raw material:
-
Sand
-
Block Type:
-
Hollow Concrete Brick Machine
-
Product Name:
-
Concrete Block Machine Block Making Machine
-
Keywords:
-
Easy Operation Block Making Machine
-
Color:
-
Designated Color
-
Products:
-
Concrete Interlock Blocks
Products Description

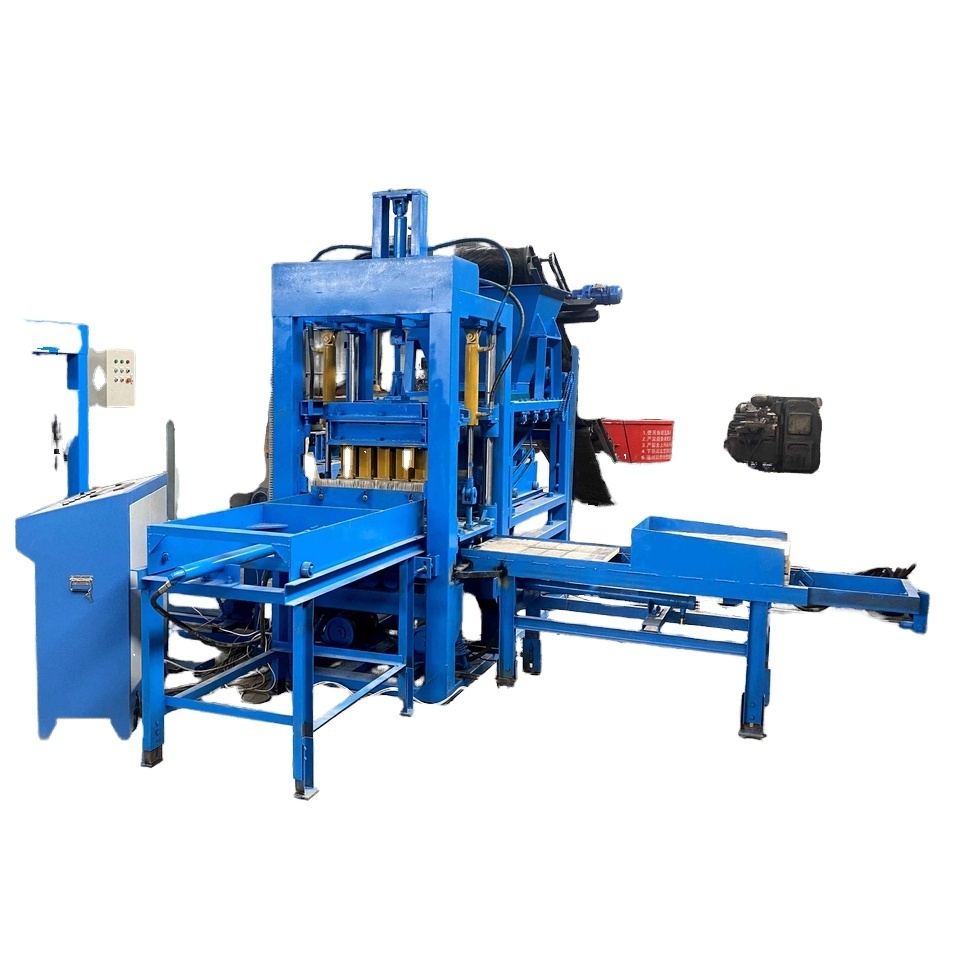

3-15 fully automatic concrete block making machine is one of the best-selling models in our factory, 3-15 machine is hydraulic as power, concrete is formed by pressure. The whole machine includes a plate inlet and a plate machine, a palletizer, a conveyor, a mixer, etc. To improve work efficiency, block brick making machine is also known as cement brick making machine, concrete brick making machine, cement block making machine, concrete block making machine. Fly ash brick making machine. hollow brick making machine, hydraulic block making machine.
The technical characteristics of the machine: electro-hydraulic integrated technology, fault alarm system, automatic saving of formula, convenient operation and high efficiency, automatic interlock system, high safety operation performance
Product Paramenters
|
Dimensions
|
4000*3500*2300mm
|
|
power
|
21.15kw
|
|
weight
|
2900kg
|
|
Molding time
|
15s
|
|
voltage
|
380v
|
|
Brick Size
|
400*200*200mm 4pcs/time
390*190*190mm 4pcs/time
390*150*190mm 5pcs/time 390*140*190mm 5pcs/time 390*120*190mm 6pcs/time 240*115*53mm 24pcs/time |
|
Product name
|
Conveyors
|
|
Model
|
600
|
|
power
|
3kw
|
|
Dimensions
|
900*1000*6000mm
|
|
Number of cubes
|
3.3m³
|
|
weight
|
400kg
|
|
name
|
mixer
|
|
Model
|
WJ500
|
|
Dimensions
|
1350*1350*1400mm
|
|
power
|
5.5kw
|
|
Thickness of the steel plate
|
8*6mm
|
|
weight
|
500kg
|
Details Images
Brick Machine Mould
The brick making machine mould can be customized according to customer needs, and one machine can be equipped with multiple moulds for replacement
The brick making machine mould can be customized according to customer needs, and one machine can be equipped with multiple moulds for replacement
Finished Brick Display
This is a display of finished bricks in different sizes and specifications, here is just a small part, please tell me the brick type size you need
This is a display of finished bricks in different sizes and specifications, here is just a small part, please tell me the brick type size you need
Raw materials for brick making
Raw Materials For Brick Making
Product packaging
Container packingContainer packing
Packed in wooden casesPacked in wooden cases
Stretch film packaging
Shipping
Our machines are shipped to your country by sea
