TESmart KVM over IP 100M 3D 1080P Video Transmitter and Receiver 4K30hz HDMI KVM Extender

FOB Reference Price: Get Latest Price

≥1 Pieces

US $149.03

Free Inquiry

Customized Request

Quick Details

Product Description

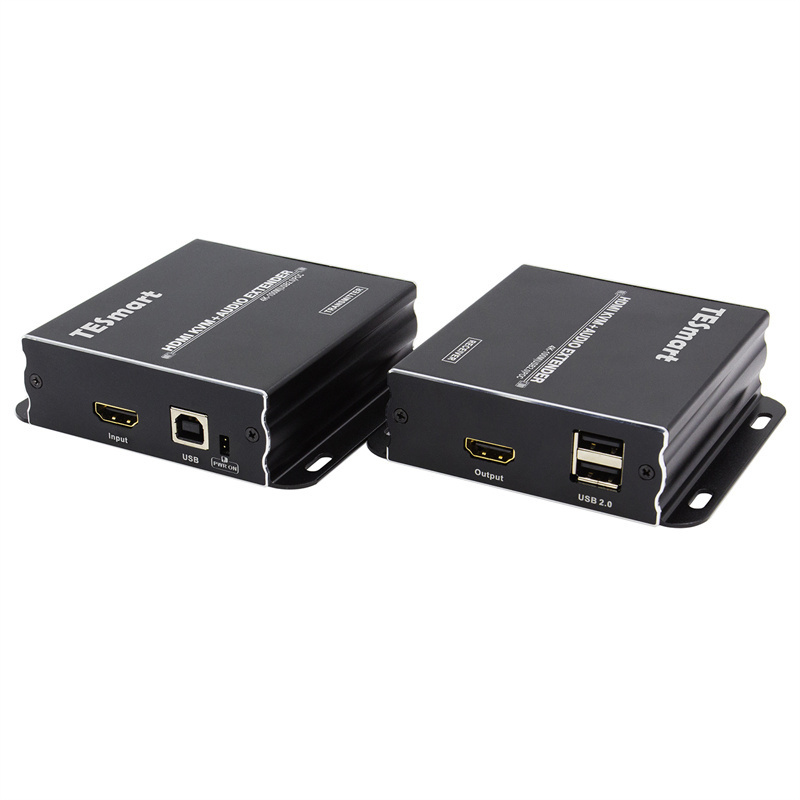

This HDMI KVM Extender with audio out, HKE1011A7U, extends HDMI and USB up to 100 meters over a single CAT-5e cable.

Providing access to keyboard, mouse, touch-panels, printers, and USB drive. S

Features

●	Use single UTP cable (CAT5e/6, should follow EIA/TIA 568B standard) to substitut HDMI and USB cable to extend longer transmission distance
●	Resolution up to 3840*2160@30Hz (For 100M UTP)
●	Support TMDS equalization and enhancement
●	Support EDID pass through via LAN, for best compliance with most display devices
●	Providing access to keyboard, mouse, touch-panels, printers, and USB drive etc
●	With customized remote button, it is easy to turn on PC remotely
●	Support PoC (Power Over Cable), transmitter powered by receiver
●	Support DVI source and display with the use of HDMI-to-DVI adapters
●	Not support HDCP
●	Support audio out from receiver

Specification

HKE1011A7U	100M HDMI KVM+Audio UHD Extender
Technical
HDCP compliance	No
Data rate	10.2 Gbps
Max. resolution	38402160@30Hz 4:4:4( For 100M UTP cable) 38402160 @60Hz 4:2:0 ( For 100M UTP cable)
ESD protection	Human body model - ±8KV (Air-gap discharge)
Input	Transmitter: 1* HDMI Type A, 1* AUX(Reserved for service) Receiver: 1* RJ45,2* USB Type A (USB2.0)
Output	Transmitter: 1* RJ45, 1* USB Type B Receiver: 1* HDMI Type A, 1* AUX(for Audio out)
ESD protection	Human body model - ±8KV (Air-gap discharge)
Mechanical
Material	Aluminum Alloy
Product dimensions	RX: 91 (W) x 103 (D) x 30 (H) mm TX: 91 (W) x 103 (D) x 30 (H) mm
Item weight	330g
Power supply	DC 12V 2A
Operating/storage temperature	0 to 70 degree/-40 to 85 degree
Operating humidity	10 to 90% RH
