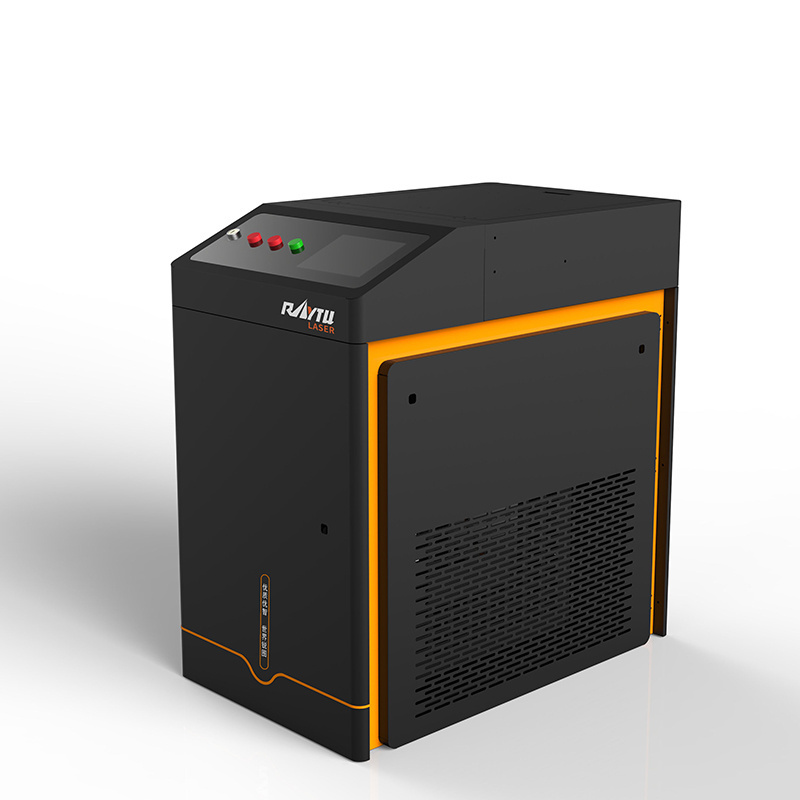

Lazer Welder Handheld Laser Welding Machine Price Portable Laser Welding Machine 1500w 1.5kw

Lazer Welder Handheld Laser Welding Machine Price Portable Laser Welding Machine 1500w 1.5kw

FOB Reference Price: Get Latest Price

≥1 Sets

US $5000

≥3 Sets

US $4800

≥5 Sets

US $4500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shandong,China

Brand Name:: Raytu

Single Pulse Energy:: 90J /110J

Pulse Width:: 0.5-20ms

Wavelength:: 1064NM

Focal Spot Diameter:: 0.6 --- 3mm

Dimensions:: 300*200mm/Optional

Weight (KG):: 260 KG

Core Components:: Fiber Laser, Laser Head

Product Name:: Laser Welding Machine

Welding Gap requirement:: ≤0.5mm

Laser wavelength:: 1070 Nm

Laser Power:: 1000W /1500w

Laser source:: Raycus Brand

Cooling System:: Water Cooling

Welding depth:: 0.1 - 3.5mm

Fiber Length:: standard10M / Maximum 15M

Machine Model:: Hand-held fiber laser welding machine

Welding Speed Range:: 0-120m/min

Quick Details

Max. Output Power:: 2000W

Usage:: Laser Welding Machine

Laser Source Brand:: MAX/Raycus/IPG

Place of Origin:: Shandong,China

Brand Name:: Raytu

Single Pulse Energy:: 90J /110J

Pulse Width:: 0.5-20ms

Wavelength:: 1064NM

Focal Spot Diameter:: 0.6 --- 3mm

Dimensions:: 300*200mm/Optional

Weight (KG):: 260 KG

Core Components:: Fiber Laser, Laser Head

Product Name:: Laser Welding Machine

Welding Gap requirement:: ≤0.5mm

Laser wavelength:: 1070 Nm

Laser Power:: 1000W /1500w

Laser source:: Raycus Brand

Cooling System:: Water Cooling

Welding depth:: 0.1 - 3.5mm

Fiber Length:: standard10M / Maximum 15M

Machine Model:: Hand-held fiber laser welding machine

Welding Speed Range:: 0-120m/min

Lazer Welder Handheld Laser Welding Machine Price Portable Laser Welding Machine 1500w 1.5kw

Products Description

Specification

Machine Parameters
No.	Items	Parameter
1	Machine model	RTHW-1000W/1500W/2000W
2	Max laser power	1000/1500/2000W
3	Laser source	IPG/Raytcus/MAX
4	Beam quality	1.3m²
5	Laser wavelength	1080±5nm
6	Welding Thickness	0.5-3mm
7	Water chiller	Hanli
8	Power Consumption	8KW
9	Fiber optical length	10m
10	Warranty	2 years

Machine Parts

Fiber Laser

1.Electro-optical conversion efficiency up to 30%.

2. They are excellent beam quality, high energy density, and reliability, a wide modulation frequency;

3. 100,000 hours of lifetime, free maintenance; Low energy consumption.

Watter Chiller

1. Automatically adjust the temperature according to different working environment, no need to change settings parameters. Reduce
the temperature of the laser source and the laser head through water circulation, thereby protecting these two main parts.

2. The chiller has functions such as water flow protection and water temperature protection. If the chiller is not opened or the water
flow is insufficient, the laser will not be generated when the water temperature is too high, so as to protect the laser.

Portable Laser Welding Head

1. High precision professional laser welding head.

2.Portable and flexable, intergrated gas protection system

Application

What is the laser welder application?

Laser welding technology and laser welding machine are widely used in manufacturing, powder metallurgy, automotive industry, electronics industry, biomedicine.The laser beam is easy to focus, align and be guided by optical instruments. It can be placed at an appropriate distance from the workpiece, and can be guided between tools or obstacles around the workpiece. Other welding methods cannot be used due to the above-mentioned space limitations. Laser welding is one of the important aspects of the application of laser material processing technology.
