Quick Details
-
Voltage:
-
380-400/3ph/50hz
-
Dimension(L*W*H):
-
800x1100x1200mm
-
Weight:
-
135
-
Product name:
-

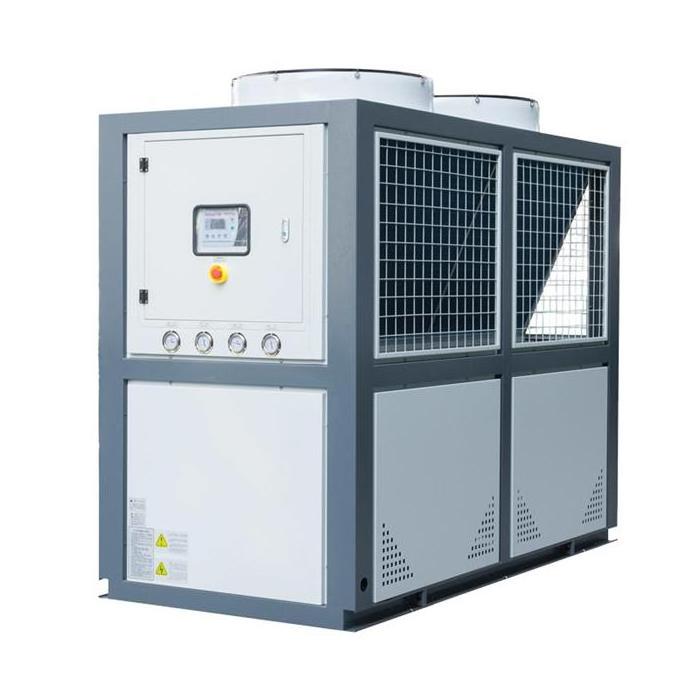

Air Cooled Water Chiller
-
Application:
-
Industrial Cooling Solutions
-
Compressor type:
-
Hermetc Scroll
-
Water tank:
-
Stainless Steel
-
Refrigerant Type:
-
R-22/R407C/R134A
-
Water Tank Capacity:
-
50-400L
-
Compressor Brand:
-
Copeland \ Danfoss \ Emerson
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
None
-
Marketing Type:
-
New Product 2020
-
Certification:
-
ce
-
After-sales Service Provided:
-
Free spare parts, Video technical support, Online support
Quick Details
-
Condition:
-
New
-
Place of Origin:
-
China
-
Brand Name:
-
seracelan
-
Voltage:
-
380-400/3ph/50hz
-
Dimension(L*W*H):
-
800x1100x1200mm
-
Weight:
-
135
-
Product name:
-
Air Cooled Water Chiller
-
Application:
-
Industrial Cooling Solutions
-
Compressor type:
-
Hermetc Scroll
-
Water tank:
-
Stainless Steel
-
Refrigerant Type:
-
R-22/R407C/R134A
-
Water Tank Capacity:
-
50-400L
-
Compressor Brand:
-
Copeland \ Danfoss \ Emerson
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
None
-
Marketing Type:
-
New Product 2020
-
Certification:
-
ce
-
After-sales Service Provided:
-
Free spare parts, Video technical support, Online support
A small integrated chiller with flexible application in many fields Air as a heat transfer source and is widely used in a wide range of areas Cooling media can be water, heat - conducting oil and other various refrigerants
Integrated Design
The built-in chilled water pump and stainless steel water tank of the standard unit, do not need to add additional supporting facilities on the site to effectively reduce the investment cost and construction cycle
Simple installation and use
Small size design,optional movable wheel , save installation space, and can flexibly adjust the installation positio The internal distribution line is completed in the factory, the refrigerants are filled, and only the chilled water pipes and wires need be used at the site
|
CHILLED WATER 7 ℃ |
||||||||||||||
|
YLAX (***) |
Model |
03H |
05H |
08H |
10H |
12H |
15H |
20H |
25H |
30H |
40H |
45H |
50H |
60H |
|
Rated cooling capacity |
kW |
8.8 |
14.4 |
25.5 |
29.0 |
32.7 |
41.1 |
58.0 |
65.4 |
82.2 |
110.6 |
116 |
130.8 |
164.4 |
|
Rated Input power |
kW |
3.2 |
5.1 |
8.0 |
8.9 |
10.4 |
14.3 |
18.0 |
20.1 |
28.6 |
37.0 |
38.9 |
44.3 |
61.9 |
|
Rated chilled water flow |
L / Min |
25 |
41 |
73 |
83 |
93 |
118 |
166 |
187 |
235 |
316 |
331 |
374 |
470 |
|
Chilled water pump head |
mH 2 O |
16 |
21 |
22 |
20 |
22 |
25 |
24 |
23 |
22 |
30 |
30 |
31 |
30 |
|
Chilled water pipe |
DN |
25 |
25 |
32 |
32 |
32 |
40 |
40 |
50 |
50 |
65 |
65 |
65 |
80 |
|
( 22% Ethylene glycol ) CHILLED WATER -5 ℃ |
||||||||||||||
|
YLAX (***) |
Model |
03M |
05 M |
08 M |
10 M |
12 M |
15 M |
20 M |
25 M |
30 M |
40 M |
45 M |
50 M |
60 M |
|
Rated cooling capacity |
kW |
5.6 |
9.2 |
16.3 |
18.5 |
20.9 |
26.2 |
37.0 |
41.7 |
52.4 |
70.6 |
75.8 |
85.7 |
106.6 |
|
Rated Input power |
kW |
3.0 |
4.7 |
7.3 |
8.8 |
9.8 |
13.0 |
16.6 |
18.6 |
25.8 |
34.5 |
36.1 |
40.8 |
50.7 |
|
Rated chilled water flow |
L / Min |
18 |
29 |
53 |
59 |
67 |
84 |
118 |
133 |
168 |
226 |
242 |
275 |
342 |
|
Chilled water pump head |
mH 2 O |
16 |
21 |
22 |
20 |
22 |
25 |
24 |
23 |
22 |
30 |
30 |
31 |
30 |
|
Chilled water pipe |
DN |
25 |
25 |
25 |
25 |
32 |
32 |
40 |
40 |
50 |
50 |
50 |
65 |
65 |
|
( 35 % Ethylene glycol) CHILLED WATER -15 ℃ |
||||||||||||||
|
YLAX (***) |
Model |
03C |
05 C |
08 C |
10 C |
12 C |
15 C |
20 C |
25 C |
30 C |
40 C |
45 C |
50 C |
60 C |
|
Rated cooling capacity |
kW |
3.7 |
6.0 |
10.6 |
12.0 |
13.6 |
17.1 |
24.1 |
27.1 |
34.1 |
45.9 |
50.1 |
55.8 |
70.5 |
|
Rated Input power |
kW |
2.7 |
4.3 |
6.5 |
7.9 |
8.7 |
11.8 |
14.8 |
16.9 |
23.1 |
31.3 |
34.1 |
38.1 |
48.2 |
|
Rated chilled water flow |
L / Min |
12 |
21 |
37 |
42 |
48 |
60 |
85 |
95 |
120 |
162 |
176 |
198 |
250 |
|
Chilled water pump head |
mH 2 O |
16 |
21 |
22 |
20 |
22 |
25 |
24 |
23 |
22 |
30 |
30 |
31 |
30 |
|
Chilled water pipe |
DN |
20 |
20 |
25 |
25 |
25 |
32 |
32 |
32 |
40 |
40 |
50 |
50 |
50 |
