Two-in-one Portable Line Boring Welding Machine Boring Machine Price 35-300mm Excavator Repair Inner Bore Welder

Two-in-one Portable Line Boring Welding Machine Boring Machine Price 35-300mm Excavator Repair Inner Bore Welder

FOB Reference Price: Get Latest Price

≥1 Sets

US $2210

≥10 Sets

US $1650

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Max. Table Load(kg):: 500

Travel (W-axis) (mm):: 300 mm

Range of Spindle Speed(r.p.m):: 300 r.p.m

Spindle Motor Power(kW):: 3.8

Place of Origin:: Ningbo,China

Brand Name:: ZHENQIAN

Voltage:: 220/380V

Dimension(L*W*H):: 1630*365*345MM

Weight (T):: 0.14 T

Application:: Welding Repair Machine

Function:: Repairing Steel

Welding Material:: Stainless Steel Stud

Name:: Beam Automatic Welding Machine

Keyword:: Welding Robot China

Advantage:: Low Weight

Level:: High Automatic

Welding Method:: TIG MIG PAW

Welding Speed:: 300rpm

Motor Power (kw):: 3.8

Quick Details

Table Travel (X) (mm):: 300 mm

Table Travel (Y) (mm):: 36 mm

Table Travel (Z) (mm):: 34 mm

Max. Table Load(kg):: 500

Travel (W-axis) (mm):: 300 mm

Range of Spindle Speed(r.p.m):: 300 r.p.m

Spindle Motor Power(kW):: 3.8

Place of Origin:: Ningbo,China

Brand Name:: ZHENQIAN

Voltage:: 220/380V

Dimension(L*W*H):: 1630*365*345MM

Weight (T):: 0.14 T

Application:: Welding Repair Machine

Function:: Repairing Steel

Welding Material:: Stainless Steel Stud

Name:: Beam Automatic Welding Machine

Keyword:: Welding Robot China

Advantage:: Low Weight

Level:: High Automatic

Welding Method:: TIG MIG PAW

Welding Speed:: 300rpm

Motor Power (kw):: 3.8

Product Overview

ZQ-SK50 BORING&WELDING MACHINE TOOL

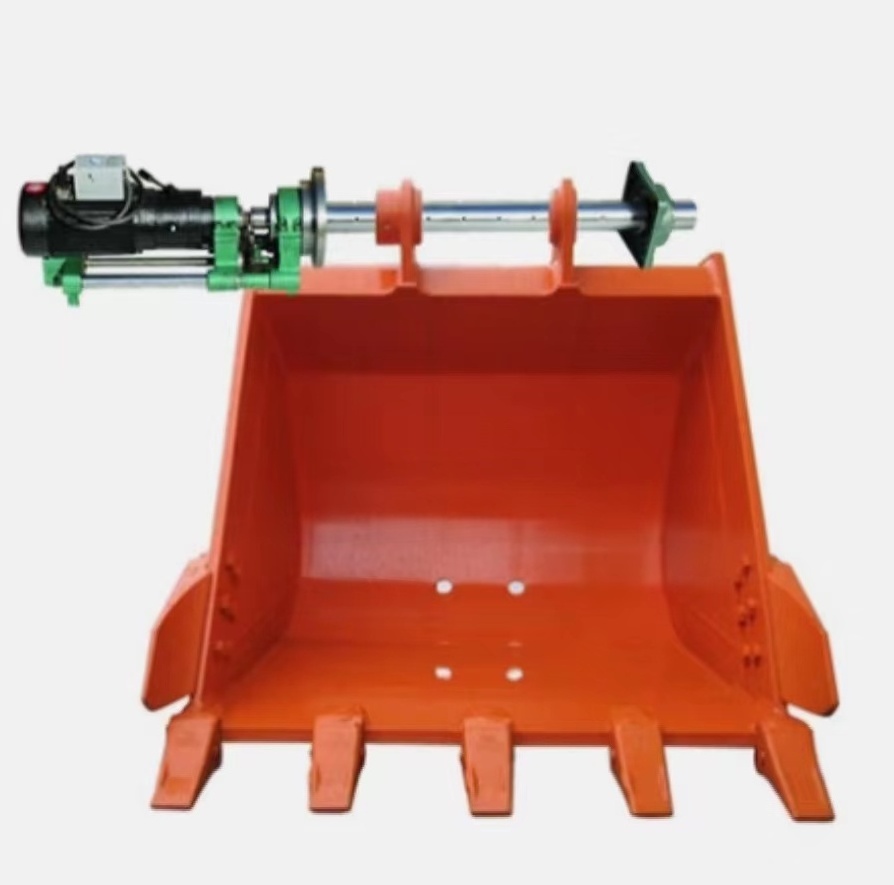

This machine is an automatic boring and welding integrated machine repair tools,which can be operated manually and romotely.It can repair and process the shaft holes and seat holes on the large and small arms of excavators.This machine sets can be clamped on the large and small arms of excavators fo rrepair welding and hole repair,temporarily fix the positioning cone on the hole position to be repaired,and automatically find the center position.The two processes of repair welding and hole can work alternately,Just replace the borin gbar and welding gun.This product has high machining precision,tolerance up to,0.01mm,boring diameter range 55-160.This goods is not equipped with welding machine,the repair welding current is adjusted according to the situation of personal welding machine.The voltage is 380V,and the current is 100A.Refer the below datas,for your use fluently.

FEATURES AT A GLANCE

COMPACT DIMENSIONS

EXTENDING UNDERCARRIAGE

SAFETY FRAME

SIMPLE CONTROL

EASY MAINTENANCE

VERSATILITY

EXTENDING UNDERCARRIAGE

PLC CN controller

Boring bar

Large&small positioning cone

PRODUCT SPECIFICATIONS

No	Item	Data
1	Motor Power	2300KW
2	Voltage	380V/50HZ
3	Sets weight	130KGS
4	Main moter speed	40-220rp/min
5	Stroke phrame	300mm (adjusted)
6	Boring hole diameter	55-160mm
7	Welding hole diameter	40-330mm
8	Max. stepping torque	8.5N.m
