Quick Details
-
Market Segement:
-
Mining transportation
-
Gross Vehicle Weight:
-
≤5T
-
Drive Wheel:
-
4X2
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Hubei, China
-
Dimensions (L x W x H) (mm):
-
4200*1580*1580mm
-
Cargo Tank Dimension:
-
2400*1500*700mm
-
Product name:
-
4-ton Mining Dumper
-
Application:
-
Underground Mining Dumper Truck
-
Overall dimension:
-
4200*1580*1580mm
-
Box dimension:
-
2400*1500*700mm
-
Drive type:
-
Rear Wheel Drive
-
Key parts:
-
Hydraulic Cylinder Lifting
-
Material of frame:
-
140*60mm rectangular steel tube
-
Warranty:
-
12 months
-
Color & logo:
-
Per customer need
Quick Details
-
Condition:
-
New
-
Horsepower:
-
96hp
-
Emission Standard:
-
Euro 3
-
Market Segement:
-
Mining transportation
-
Gross Vehicle Weight:
-
≤5T
-
Drive Wheel:
-
4X2
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Hubei, China
-
Dimensions (L x W x H) (mm):
-
4200*1580*1580mm
-
Cargo Tank Dimension:
-
2400*1500*700mm
-
Product name:
-
4-ton Mining Dumper
-
Application:
-
Underground Mining Dumper Truck
-
Overall dimension:
-
4200*1580*1580mm
-
Box dimension:
-
2400*1500*700mm
-
Drive type:
-
Rear Wheel Drive
-
Key parts:
-
Hydraulic Cylinder Lifting
-
Material of frame:
-
140*60mm rectangular steel tube
-
Warranty:
-
12 months
-
Color & logo:
-
Per customer need
Products Description

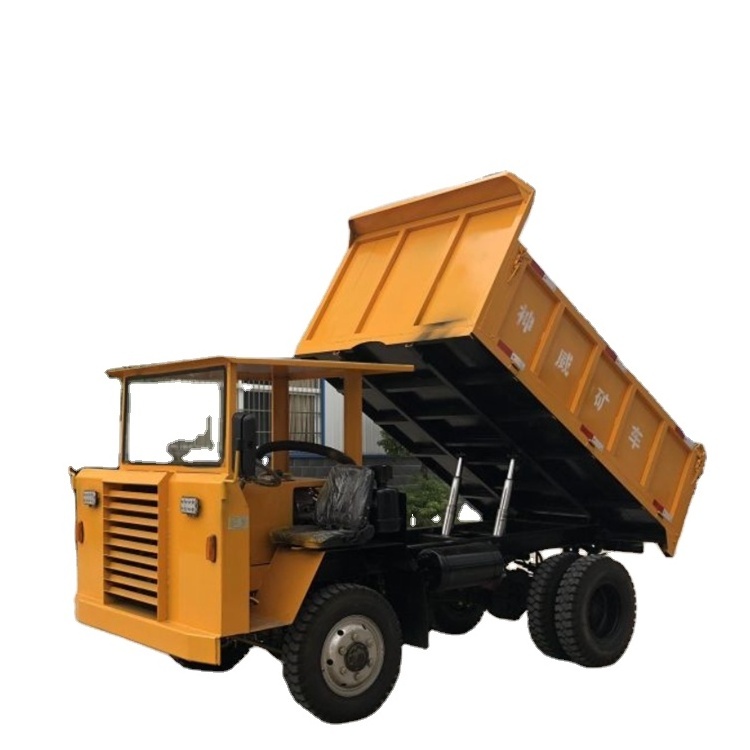

4 Tons Underground Mini Dumper Truck Hydraulic Diesel Mining Small Dump Truck for Sale
More information, please feel free to send email to hptruck01@outlook.com or talk to Shirly directly by whatsapp/wechat: +86 195 0722 0186.
Detailed Images
Specification
|
Product name
|
mini size underground mining dumper truck
|
|
Condition
|
New
|
|
Steering
|
Fully hydraulic steering
|
|
Horsepower
|
53hp/38kw
|
|
Emission Standard
|
Euro 3
|
|
Type
|
Mini dump truck for mining usage
|
|
Engine
|
Quanchai 4B2-52M22
|
|
Fuel Type
|
Diesel
|
|
Engine Power
|
53 hp/38 kw
|
|
Transmission Model
|
NJ130
|
|
Speed Ratio
|
6.167
|
|
Drive Type
|
Rear wheel drive
|
|
Forward Shift Number
|
5
|
|
Reverse Shift Number
|
1
|
|
Front tires
|
2 pcs of 650R16 mining tires
|
|
Rear tires
|
2 pcs of 750R16 mining tires
|
|
Dimensions (L x W x H) (mm)
|
4200*1580*1580 mm, or your desired dimensions
|
|
Dumper box Dimension
|
2400*1500*700 mm, or your desired dimensions
|
|
Plate Thickness of Dumper
|
6mm (bottom plate), 4mm (side plate)
|
|
Hydraulic Cylinder for Lifting
|
2 pcs of 750mm 3-stage telescopic cylinders
|
|
Gross Vehicle Weight
|
4000
|
|
Capacity (Load)
|
1 - 10t
|
|
Fuel Tank Capacity
|
≤100L
|
|
Drive Wheel
|
4*2/4*4
|
|
Ground Clearance
|
180mm
|
|
Transmission Type
|
Manual
|
|
Brake
|
Air brake
|
|
Wheelbase
|
2350mm
|
|
Treatment of Exhaust Gas
|
Exhaust gas is treated through a filtration tank.
|
|
Front Suspension Leaf Sprin
|
11 pcs 65*10mm
|
|
Rear Suspension Leaf Spring
|
16 pcs 65*12mm
|
|
Materials of Frame
|
140*80mm rectangular steel tube
|
Packing & Delivery
1> Packaging:
Nude, but waxed before shipment in our factory.
2> Shipping: Small type can be put into 20' or 40' container, big type must be shipped by bulk carriers or ro-ro ship or according to your requirements
2> Shipping: Small type can be put into 20' or 40' container, big type must be shipped by bulk carriers or ro-ro ship or according to your requirements
