Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
NE-Cast-in Heater
-
Dimension(L*W*H):
-
customized
-
Weight:
-
depends on size
-
Working Temperature Range:
-
1 - 600 ℃
-
Name:
-
cast brass/copper heater plate heating
-
Material:
-
brass
-
Max working temperature:
-
600°C
-
Application:
-
machinery ,equipment,moulding,injection,,extruder
-
Power:
-
50w-100kw
-
Heating element:
-
nickel chrome wire or FeCr
-
Shape:
-
irregular or customized
-
liquid cool:
-
seamless stainless steel tube
-
Tolerance:
-
±0.2mm
-
Thread therminals:
-
therad thermial, ceramic covers
Quick Details
-
Type:
-
Band Heater
-
Power Source:
-
Electric
-
Voltage:
-
12-480v
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
NE-Cast-in Heater
-
Dimension(L*W*H):
-
customized
-
Weight:
-
depends on size
-
Working Temperature Range:
-
1 - 600 ℃
-
Name:
-
cast brass/copper heater plate heating
-
Material:
-
brass
-
Max working temperature:
-
600°C
-
Application:
-
machinery ,equipment,moulding,injection,,extruder
-
Power:
-
50w-100kw
-
Heating element:
-
nickel chrome wire or FeCr
-
Shape:
-
irregular or customized
-
liquid cool:
-
seamless stainless steel tube
-
Tolerance:
-
±0.2mm
-
Thread therminals:
-
therad thermial, ceramic covers
Description

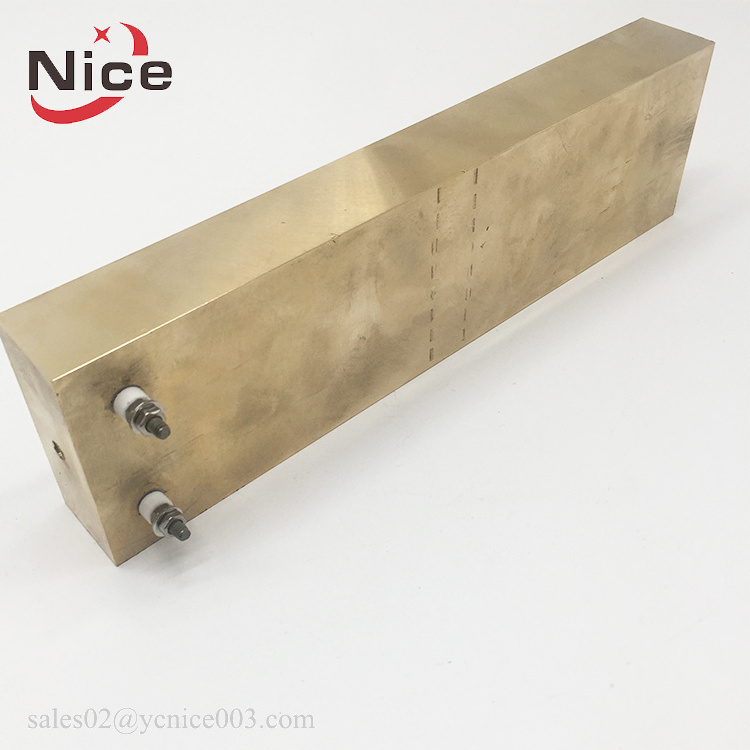

Casting Copper Heater
combine top quality tubular heaters and high thermal conductivity non-ferrous alloys. Modern foundry techniques ensure a dense, porosity free casting. After casting the heaters are machined to ensure a close contact on the working surface. Cast In heaters can be supplied with clamping straps or with built in clamping means.
It is a tubular electric heating element for heating body, and bending molding, into the mold with high quality metal alloy material into various shapes, round, flat, rectangular, air-cooled, water-cooled and other shapes . After finishing it and heated body tightly, Metal casting heater is a kind of high efficiency heat uniformity division of the heater, thermal conductivity, excellent metal alloy, ensure the hot surface temperature uniformity, eliminating equipment hot and cold spots. With long life, good insulation properties, mechanical properties, corrosion resistance, magnetic resistance etc
Specification
| Material | Copper, brass, bronze or cupronickel alloy |
| Max Watt density | 20 w/cm ² on the heating element |
| Voltages available | 120V, 240V, 380V, 450V, others available on request. |
| Wattage Tolerance | +5%, -10 % |
| Resistance tolerance | +10%, -5% |
| Max operating temperature | 600 o C |
| Leakage current | <0.5MA |
| Insulation resistance | > 2M Ω |
| Grounding resistance | <0.1Ω |
| The condition of usage | temperature -20 ℃ ~ + 60 ℃; relative humidity<80% |
Application
- Laminating Equipment
- Liquid Heat Exchangers
- Packaging Seal Bars
- Plastic Extruder Barrels
- Plastic Extrusion Dies
- Platen Heaters
- Silicone Wafer Processing Equipment
- Silk Screen Equipment
- Vacuum Forming Equipment
Yancheng Nice Electric Heating Equipment Co.Ltd, a professional manufacturer,has about 9 years experience in heating element.Our mainly products cover Cast Aluminum Heater,Cast Copper Heater,Teflon coated heaters,Cast Iron Electric Heater, other material heaters ,such as Flexible Silicone Rubber Heaters, Ceramic IR Heaters, Flange Heater,tubular heater,stainless steel heater,Laboratory heater board,thermal oil heater,air duct heater,pipeline heater etc.
After years of efforts and accumulation, the company product structure type is complete, the series of complete specifications, wide power, using the environment variety, has been widely used in machinery, metallurgy, oil chemical, electric power, shipbuilding, medical and other fields.
1.Package: Wooden case or carton box
2.Delivery : For samples,7-10 days after payment
For big quantity,will be shipped in time as the contracts
Order Guide
1. Size and shape
2. Voltage and p ower
3. Operation temperature requirement
4. Other design requirement
5. Order quantity
6.It ’ s best you can supply drawing pics
