Quick Details
-
Memory Type:
-
DDR4
-
Graphics Card Type:
-
Integrated-need CPU support
-
FSB / HT:
-
1066/1333/1600MHz
-
Brand Name:
-
Dianji or OEM
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
HM570 Motherboard
-
SATA:
-
2 Sata, 1 M.2 NVME/NGFF auto detect
-
USB:
-
4*USB2.0, 4*USB3.2
-
CPU Support:
-
10th Gen H Series CPU Onboard
-
Display:
-
2 x HD,MI+DP
-
LAN:
-
Gigabit LAN
-
Memory:
-
2*DDR4 DIMM Slot
-
Dimension:
-
Mini ITX 170mm x170 mm
-
COM:
-
6 COM Or 2 COM
-
Condition:
-
Brand New
Quick Details
-
Maximum Ram Capacity:
-
64 GB
-
Application:
-
Server/Workstation/AIO/MINI PC
-
Form Factor:
-
ATX
-
Memory Type:
-
DDR4
-
Graphics Card Type:
-
Integrated-need CPU support
-
FSB / HT:
-
1066/1333/1600MHz
-
Brand Name:
-
Dianji or OEM
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
HM570 Motherboard
-
SATA:
-
2 Sata, 1 M.2 NVME/NGFF auto detect
-
USB:
-
4*USB2.0, 4*USB3.2
-
CPU Support:
-
10th Gen H Series CPU Onboard
-
Display:
-
2 x HD,MI+DP
-
LAN:
-
Gigabit LAN
-
Memory:
-
2*DDR4 DIMM Slot
-
Dimension:
-
Mini ITX 170mm x170 mm
-
COM:
-
6 COM Or 2 COM
-
Condition:
-
Brand New

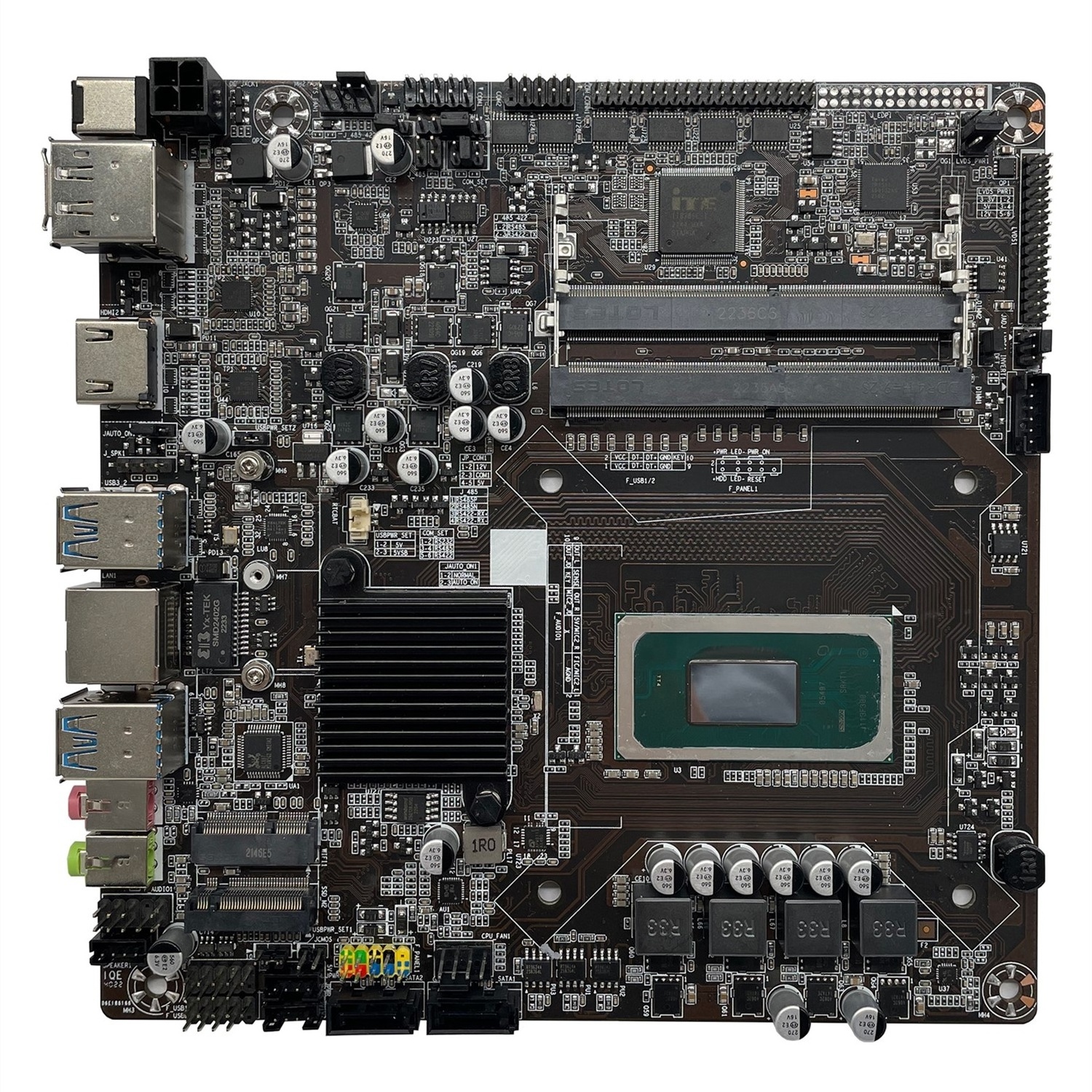

Onboard i7 11800H Mini ITX HM570 Motherboard Combo with M.2 NVME Or NGFF, 2 x HD,MI+DP+LVDS, EDP 6 COM
HM570 motherboard Specifcation
| Model | HM570 | |||
| CPU | Onboard Intel 11th Gen i5 11400H, i7 11800H and other H Series CPU | |||
| Chipset | Intel X57 | |||
| Memory | Support 2 DDR4 2133/2400/2666/2800MHz DIMM.Memory up to 64GB | |||
| Support Hyper-threading technology | ||||
| Expansion Slots | 1*M.2 WiFi | |||
| Storage | 2* SATA, 1*M.2 NVME/NGFF Auto Detect(PCIE 3.0 x 4) | |||
| LAN | 8106E/8111H 100/1000Mbps Lan Chip | |||
| Audio | HD sound card ALC662 6 sound channel output | |||
| USB Ports | 4*USB2.0(onboard) | |||
| 4*USB3.2 | ||||
| External I/O Ports | 1*HDMI | Internal I/O Ports | 6*COM/2*COM | |
| 1*HDMI+1*DP | 1*F_AUDIO | |||
| hm570 motherboard | 1*LAN(RJ45)port(s) | 1*JCMOS | ||
| hm570 motherboard | 3*Audio jack(s) | 1*SPKERS | ||
| hm570 motherboard | 1*DC IN | 1*CPU_FAN PWR | ||
| hm570 motherboard | 4*USB3.2 | 1*4Pin ATX Power | ||
| hm570 motherboard | 1*J422/J485 | |||
| hm570 motherboard | 1*JADJ LVDS | |||
| Form Factor | Mini ITX 170*170mm | 1*Auto On | ||
