Quick Details
-
Application:
-
outdoors
-
Design Style:
-
Industrial
-
Type:
-
ZLP
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JIUCHUANG
-
Model Number:
-
ZLP630
-
Rated load:
-
630KG
-
Lifting speed:
-
9-11m/min
-
Motor power:
-
2*1.5KW
-
Brake Moment:
-
16N.M
-
Locking angle:
-
3°-8°
-
Allowable impulse force:
-
30KN
-
Rated spread volume of front girder:
-
1500mm
-
Lifting height:
-
200m
-
Materials:
-
Steel structure
-
Diameter of wire cable:
-
8.3mm
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, Other
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, Others
-
Application:
-
outdoors
-
Design Style:
-
Industrial
-
Type:
-
ZLP
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JIUCHUANG
-
Model Number:
-
ZLP630
-
Rated load:
-
630KG
-
Lifting speed:
-
9-11m/min
-
Motor power:
-
2*1.5KW
-
Brake Moment:
-
16N.M
-
Locking angle:
-
3°-8°
-
Allowable impulse force:
-
30KN
-
Rated spread volume of front girder:
-
1500mm
-
Lifting height:
-
200m
-
Materials:
-
Steel structure
-
Diameter of wire cable:
-
8.3mm
ZLP630 sale construction work gondola machine suspended platform
The specification of suspended platform:
Suspended platform consists of suspension mechanism,hoist,safety lock,electric control box and platform.They have resonable structure and they are easy to operate.According to the actual needs,they are arbitrarily assembled and disassembled.Suspended platfrom applies to exterior wall construction,decoration,cleaning and maintance of high-rise buildings.
Technical dates of suspended platform:
The feature of suspended platform:
1.The length of platform can be adjusted within 1m-10m.
2.The working height can be adjusted with customers' need.
3.The voltage can be adjusted with customer's requirement.
4.Materials 3 Types :1)Aluminum alloy 2)steel 3)steel with dipping zinc or galvanized

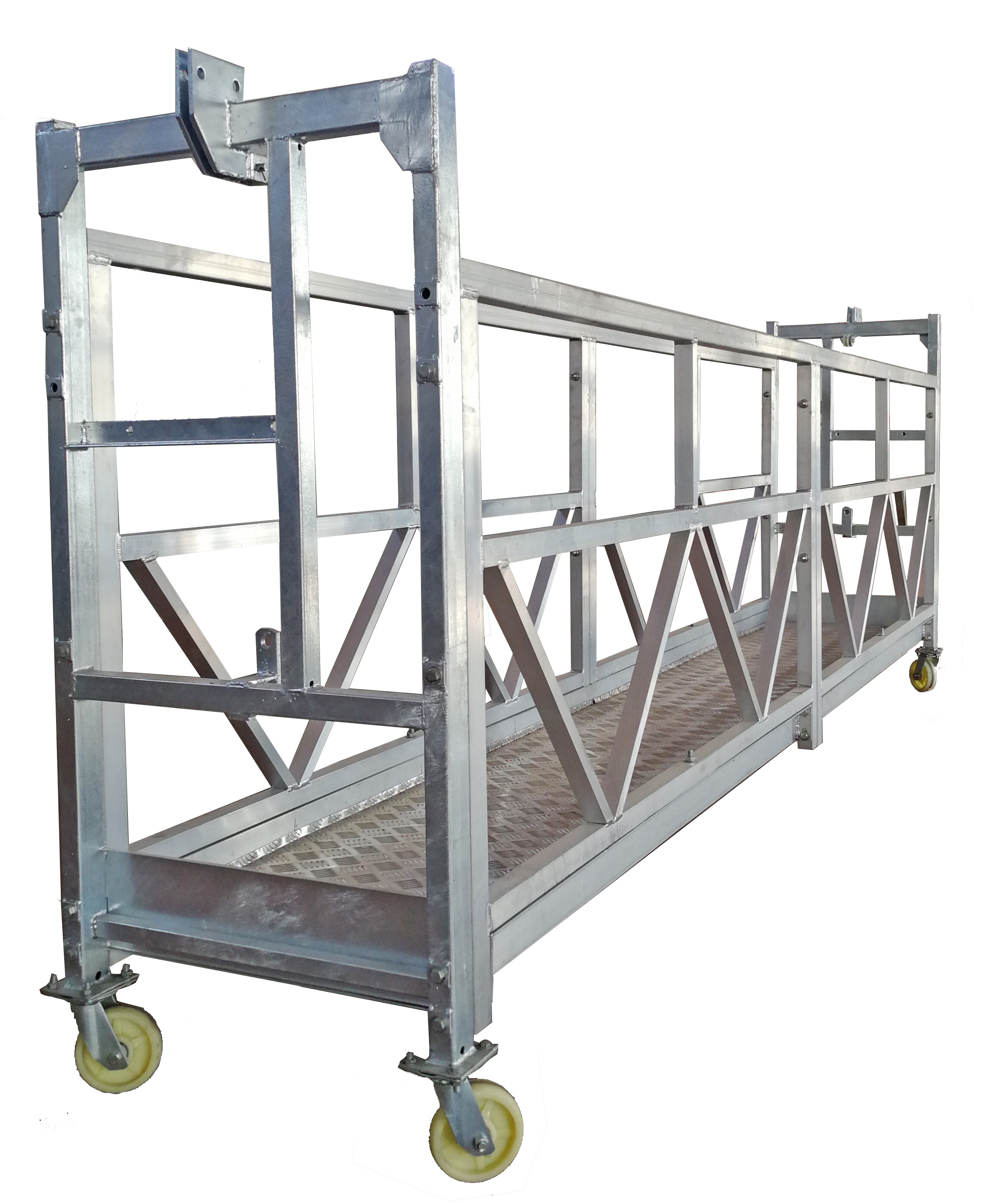

Photos of suspended platform:
|
Rated load |
630KG |
|||
|
Lifting speed |
9-11M/MIN |
|||
|
Platform Length |
6M=2 M+2M+2M
|
|||
|
Lifting height |
100M |
|||
|
Suspension mechanism |
2pieces |
Hot dipping galvanized |
||
|
Electric panel |
1piece |
Schneider contactor |
||
|
Surface: galvanized + baking finish, double protect |
||||
|
Intelligent control technology |
||||
|
Phase lose protector |
||||
|
Power failure when open the door |
||||
|
Hoist |
2pieces |
Model |
LTD6.3 |
|
|
Rated lifting force |
6.3KN |
|||
|
Motor power |
1.5KW |
|||
|
Voltage |
220V 3PHASE/380V 3PHASE |
|||
|
Pure Aluminum alloy shell: whole life warranty |
||||
|
Safety lock |
2pieces |
Allowable impulsive force |
30KN |
|
|
Locking rope distance |
≤ 100MM |
|||
|
Locking rope angle |
3 ° -8 ° |
|||
|
Electric cable |
100m/roll |
|||
