Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZK / CHANSON
-
Voltage:
-
380V50hz3Ph
-
Weight (KG):
-
1900 KG
-
Power (kW):
-
4
-
Dimension(L*W*H):
-
3000X1250X2950mm
-
Product name:
-

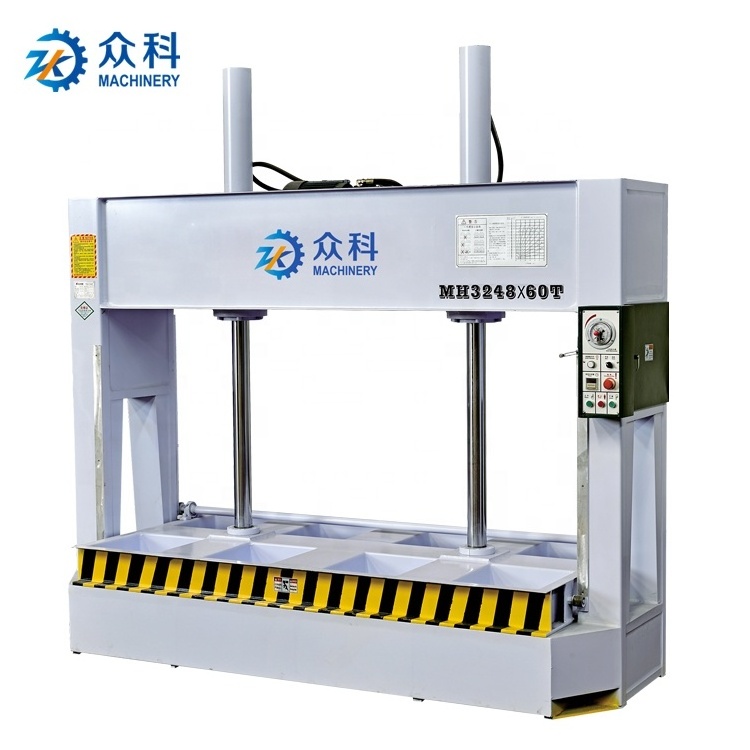

Haydraulic Cold Press Machine
-
Pressing-plate max open distance:
-
1000/1300mm
-
Oil cylinder diamter:
-
90mm*2pcs
-
Color:
-
white and yellow, others for customized
-
Usage:
-
Pressing Wood
-
Application:
-
panel furniture, plywood precessing, etc
-
Weight:
-
1800KG
-
Total pressure:
-
50T/60T/80T
-
Working methods:
-
Hydraulic System
-
Press platen dimensions:
-
1250mm*2500mm
Quick Details
-
Max.Pressure(T):
-
50 T
-
Working Table Size(mm):
-
1250×2500
-
Pressure:
-
50T/60T/80T/100T
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZK / CHANSON
-
Voltage:
-
380V50hz3Ph
-
Weight (KG):
-
1900 KG
-
Power (kW):
-
4
-
Dimension(L*W*H):
-
3000X1250X2950mm
-
Product name:
-
Haydraulic Cold Press Machine
-
Pressing-plate max open distance:
-
1000/1300mm
-
Oil cylinder diamter:
-
90mm*2pcs
-
Color:
-
white and yellow, others for customized
-
Usage:
-
Pressing Wood
-
Application:
-
panel furniture, plywood precessing, etc
-
Weight:
-
1800KG
-
Total pressure:
-
50T/60T/80T
-
Working methods:
-
Hydraulic System
-
Press platen dimensions:
-
1250mm*2500mm
Product Description
The machine is applied for modern fashion board,plyboard,flak-board,laminating board.woodbased panel board,furniure
manufacture,solid board furniture,speaker box,plastic and wooden mould etc.
manufacture,solid board furniture,speaker box,plastic and wooden mould etc.
Easy to operate,working exact and fasthigh efficiency,it is the necessary pressed workpiece equipment in artifical panel,the composite furniture and solid board furnituremanufacture material.
Detailed Images
1.adopting auto-manual functions, may choose auto and manual control function separately.
2.Auto-pressure regulating oil circuit (line) function
3.Auto-adding and auto-holding pressure function
4.With Safety device(safety catch)
5.Emergency safety brake function
6.With excellent electrical parts
7.Stable and easy to operate
8.the worktable is milled by special machine, flatness error conform to national standards
2.Auto-pressure regulating oil circuit (line) function
3.Auto-adding and auto-holding pressure function
4.With Safety device(safety catch)
5.Emergency safety brake function
6.With excellent electrical parts
7.Stable and easy to operate
8.the worktable is milled by special machine, flatness error conform to national standards
Size Information
Size of cold press
|
Model
|
MH3248×50T
|
MH3248×60T
|
MH3248×80T
|
|
Worktable size
|
1250×2500 mm
|
1250×2500 mm
|
1250×2500 mm
|
|
Max pressure
|
50T
|
60T
|
80T
|
|
Pressing-plate max open distance
|
1000/1300mm
|
1000/1300mm
|
1000/1300mm
|
|
Oil cylinder diamter
|
Φ90×2pcs
|
Φ90×2pcs
|
Φ100×2pcs
|
|
Hydrailic motor power
|
5.5kw
|
5.5kw
|
5.5kw
|
|
Hydrailic motor power
|
1800KG
|
1900KG
|
2000KG
|
|
Overall size
|
3000×1250×2950mm
|
3000×1250×2950mm
|
3000×1250×2950mm
|
Related Products
Packing&Shipping
PACKAGE:
1.Thick PE foam inner, plastic film outside, in case of damage during transportation
2.Seaworthy wooden case as the general export package should be additional charged
DELIVERY TIME:
5-15 days after confirming order and receiving the deposit,detail delivery date should be decided according to production season and order quantity.
Company Introduction
ZK Machinery major product is precision panel saw & thicnkesser & surface planer. Time has tested the quality of our products and the good credit of our company,that is why we have more than 100 agents both at home and abroad and more and more foreign customers are coming to us.
Other woodworking machines,like cnc wood lathe, wood press, drilling machine, and other various products are also popular with customers from southeast,the Middle East,etc.
As a fast growing enterprises, ZK MACHINERY have the whole world in view,and try to be better and better, We are working hard to provide our customers perfect machines along with our technical support and after sale service. Also we will keep to "quality is first, reputation is everything" as our tenet!
Sincerely hope you could witness the development of ZK MACHINERY and you are warmly welcomed to visit our factory.
