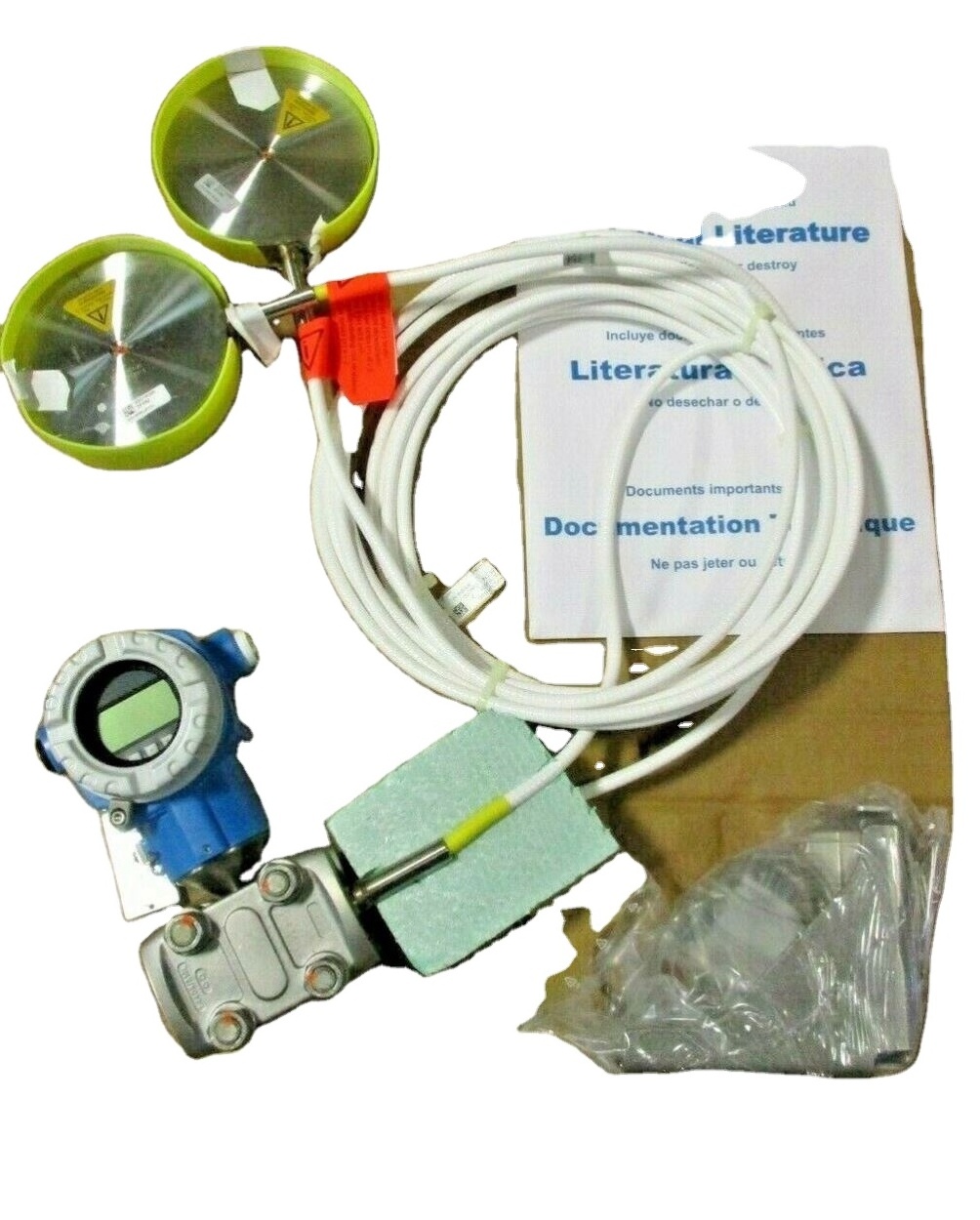

The Deltabar FMD78 differential pressure transmitter with metal sensor uses two capillary diaphragm seals. Typically used in process and hygiene applications for continuous measurement of pressure differences in liquids, vapors, gases and dusts. The integrated HistoROM data module makes the management of process and device parameters easy. Designed according to IEC 61508 for use in SIL3 safety applications.
Features
* Large variety of different process connections and membrane materials
* New TempC Membrane for diaphragm seals: Minimum temperature effects and short recovery times
* Highest safety due to gas tight feedthrough with capabilities up to SIL2/3, certified to IEC 61508
* Easy menu-guided commissioning via local display, 4 to 20 mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
* HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
* Cost savings with modular concept for easy replacement of sensor, display or electronics
* Seamless and independent system integration (HART/PA/FF)
* Large variety of different process connections and membrane materials
* New TempC Membrane for diaphragm seals: Minimum temperature effects and short recovery times
* Highest safety due to gas tight feedthrough with capabilities up to SIL2/3, certified to IEC 61508
* Easy menu-guided commissioning via local display, 4 to 20 mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
* HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
* Cost savings with modular concept for easy replacement of sensor, display or electronics
* Seamless and independent system integration (HART/PA/FF)
Specification
Specification
|
Brand
|
endress hauser
|
|
Accuracy
|
Standard 0.1%
Platinum 0.075% |
|
Process temperature
|
-40°C...125°C
|
|
Pressure measuring range
|
1 bar...400 bar
|
|
Process pressure absolute / max. overpressure limit
|
600 BAR
|
|
Main wetted parts
|
316L
|
|
Max. measurement distance
|
400m
|
|
Material process membrane
|
316L, AlloyC,
Rhodium>Gold |
|
Communication
|
4...20 mA HART PROFIBUS PA FOUNDATION Fieldbus IO-Link |
|
Sensor maximum
working pressure |
1500 psig (103 barg)
|
|
Meter approvals, calibrations, and certifications
|
•UL
•CSA •IECEx •NEPSI •ATEX •Ingress Protection •EMC effects |
