Quick Details
-
Type:
-

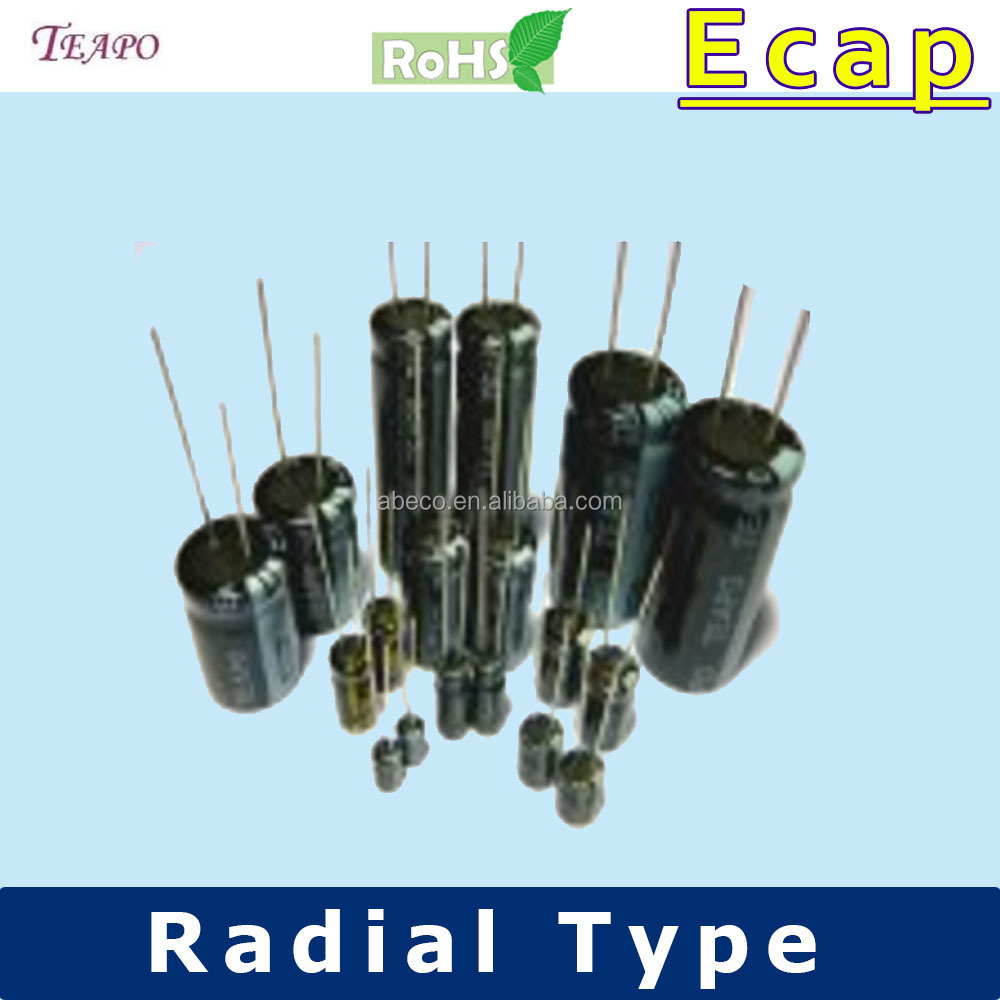

Radial, Aluminum Electrolytic Capacitor
-
Other names:
-
Miniature Aluminum Electrolytic Capacitors
-
Capacitance tolerance:
-
±20% at 120Hz , 20℃
-
Surge Voltage:
-
5 ~ 63
-
Features:
-
5mm height
-
Ripple:
-
9 ~ 110
-
Endurance(+R=With ripple ):
-
105℃ 1000hours
-
Certificate:
-
RoHS ISO14001AEC-Q200
-
Application1:
-
AV Monitor/Computer
-
Application2:
-
Communication Small signal
-
Application:
-
Small signal
-
Rated Voltage:
-
4V ~ 50V
-
Operating Temperature:
-
-40°C~105°C
-
Capacitance:
-
1uF ~ 470uF
Quick Details
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
TEAPO
-
Model Number:
-
TEAPO / S5 Series
-
Type:
-
Radial, Aluminum Electrolytic Capacitor
-
Other names:
-
Miniature Aluminum Electrolytic Capacitors
-
Capacitance tolerance:
-
±20% at 120Hz , 20℃
-
Surge Voltage:
-
5 ~ 63
-
Features:
-
5mm height
-
Ripple:
-
9 ~ 110
-
Endurance(+R=With ripple ):
-
105℃ 1000hours
-
Certificate:
-
RoHS ISO14001AEC-Q200
-
Application1:
-
AV Monitor/Computer
-
Application2:
-
Communication Small signal
-
Application:
-
Small signal
-
Rated Voltage:
-
4V ~ 50V
-
Operating Temperature:
-
-40°C~105°C
-
Capacitance:
-
1uF ~ 470uF
S5 50V 470uF electronics component stores Electrolytic Capacitor
|
Product Information
|
- Features: 85℃,1000hrs, Low profile/Ultra Miniature, 5mm height
- Recommended Applications: AV(TV, Video, Audio), Monitor/Computer, OA/HA/Communication, Small signal
-
Corresponding product to RoHS
|
Product Series
|
| Conductive Polymer Aluminum Solid Electrolytic Capacitors | Surface Mount Aluminum Electrolytic Capacitors | Large Can Type Aluminum Electrolytic Capacitors | |||
| Series | Features | Series | Features | Series | Features |
| CG | Ultra Low ESR | GV | Low profile V-Chip | LH | General purpose |
| CP | 8 mm height & Ultra Low ESR | FV | Long life V-Chip | LH | Long life |
| CY | Ultra Low ESR with sleeve | SV | Low profile V-Chip | LH | General purpose |
| CZ | Ultra Low ESR with Small size | DV | Long life V-Chip | LH | Smaller size |
| CR | Ultra Low ESR & Higher Ripple Current | ZV | Low impedance V-Chip | LH | Long life |
| CX | Ultra Low ESR & Higher Ripple Current with bright Aluminum case | YV | Low impedance V-Chip | LM | Smaller size and long life |
| CF | Super Low ESR & Large Capacitance | EV | Ultra Low impedance V-Chip | LQ | Long life |
| CS | High Voltage & Long Life | JV | Low profile vertical chip | LK | Long life |
| CH | Ultra Low ESR & Long Life | XV | Ultra Low impedance V-Chip | ||
| CT | High Temperature | HV | Higher temperature range V-Chip | ||
| VP | SMD Standard | CV | Low leakage current V-Chip | ||
| VB | SMD Low Profile | NV | Non-polarized V-Chip | ||
| VS | SMD Long life and Ultra low ESR | ||||
| Miniature Aluminum Electrolytic Capacitors | |||||
| Series | Features | Series | Features | Series | Features |
| SK | General purpose | SB | Low leakage current | TE | LED Lighting and Ultra Long Life |
|
SE
(SEK) |
General purpose | SC | Low ESR and high frequency | TH | General purpose |
| SH | Miniature General purpose | SJ | Low impedance and high ripple | TG | High ripple and long life |
| D5 | 5 mm height | TB | Low impedance and high ripple | TP | High ripple and long life |
| S5 | 5 mm height | SY | Low impedance and long life | ||
| H5 | 5 mm height | TA | Low impedance and long life | ||
| D7 | 7 & 9 mm height | ST | Low impedance and long life | ||
| S7 | 7 & 9 mm height | TC | Low impedance and long life | ||
| H7 | 7 & 9 mm height | SZ | Ultra low ESR | ||
| RN | Non-polar | AK | High Temperature and Long Life | ||
| SN | Non-polar | SQ | High ripple and high voltage | ||
| RB | Non-polar for crossover | SG | High ripple and long life | ||
| SR | Bi-polar, Horizontal correction | SP | High ripple and long life | ||
| BX | Bi-polar, Horizontal correction | SU | High ripple and long life | ||
|
Specification
|
|
Certifications
|
|
Packing & Delivery
|
We follow the original packing and delivery date with all of the manufacturers.
