XCMG Manufacturer Pipelayer Machine 40ton ZXD40 Pipelayers With Side Boom Good Sale

XCMG Manufacturer Pipelayer Machine 40ton ZXD40 Pipelayers With Side Boom Good Sale

FOB Reference Price: Get Latest Price

≥1 Pieces

US $15000

≥5 Pieces

US $10000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Max Lifting height:: 5M

Engine:: Cummins

Quick Details

Weight (KG):: 40000

Place of Origin:: Jiangsu, China

Brand Name:: XCMG

Max Lifting height:: 5M

Engine:: Cummins

Products Description

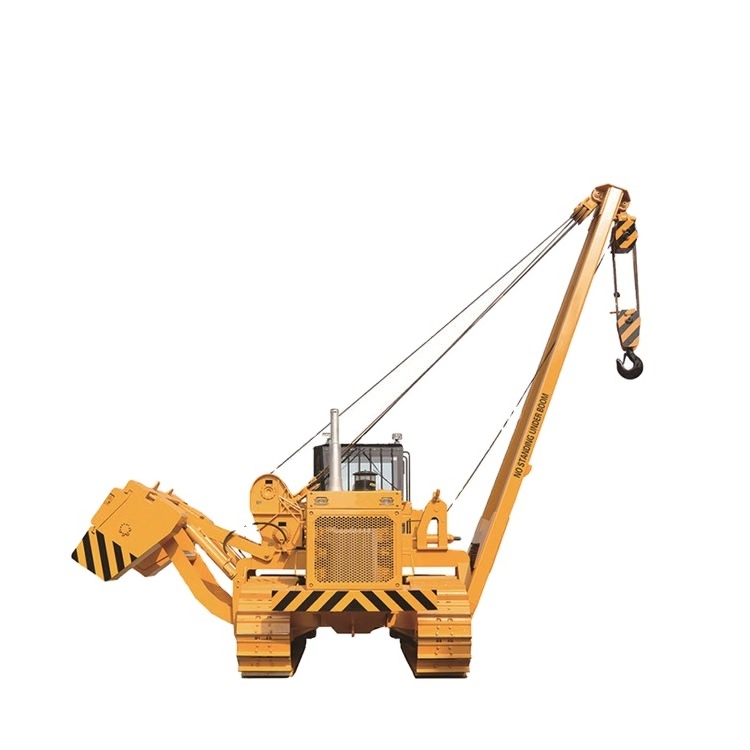

XCMG Manufacturer Pipelayer Machine 40ton ZXD40 Pipelayers With Side Boom Good Sale

Pipelayer is an important construction equipment in the construction of oil and gas pipelines, mainly used for laying, aligning,and lowering large-diameter pipes. It has the characteristics of large lifting capacity and walking with heavy objects.

CABIN

Good visibility to work area and top of the boom with a sky window on the roof, ROPS can be installed as the optional equipment.

BOOM

Tubular A-Frame boom engineered for exceptional support at maximum lift capacity and easy detachment.

CONTROL

Multi-axis, hydraulic joystick allows simultaneous precise control of the load and booms functions with one hand.Single-lever, hydraulic remote control valves are used for counterweight and two-speed functions.The controls are easy to operate and require minimum operator training.

Specification

Lifting Capacity at tipping point(t)			40.00
Max Lifting moment at min.load overhang(KN.m)			478(392KN*1.22m)
Max Lifting moment at max.load overhang(KN.m)			400(66.64KN*6.00m)
Boom Length(m)			7
Max Lifting height of hook(m)			5
Max hoisting speed of hook(6 part line)			7
Boom elevating time(s)			35
Engine	Engine Model	Cummins NT855-C280	Cummins QSNT-C24O
		Rated Power(kw/rpm)	179/2000	179/2000
Track gauge(mm)			2250
Length of track on ground(mm)			3050
Track width(mm)			660
Operating Mode			Hydraulic Pilot Control
Rated working pressure of system(Mpa)			20
Min turning radius(m)			3.20
Hook winch			Hydraulic driven,Planetary transmission,Free Fall Function
Diameter of lifting wire rope(m)			20
Ranging wich			Hydraulic driven,Planetary transmission
Diameter of Ranging wire rope(m)			18
Operating Weight(kg)			34000.00

Product Show

XCMG Manufacturer Pipelayer Machine 40ton ZXD40 Pipelayers With Side Boom Good Sale
