Product Description

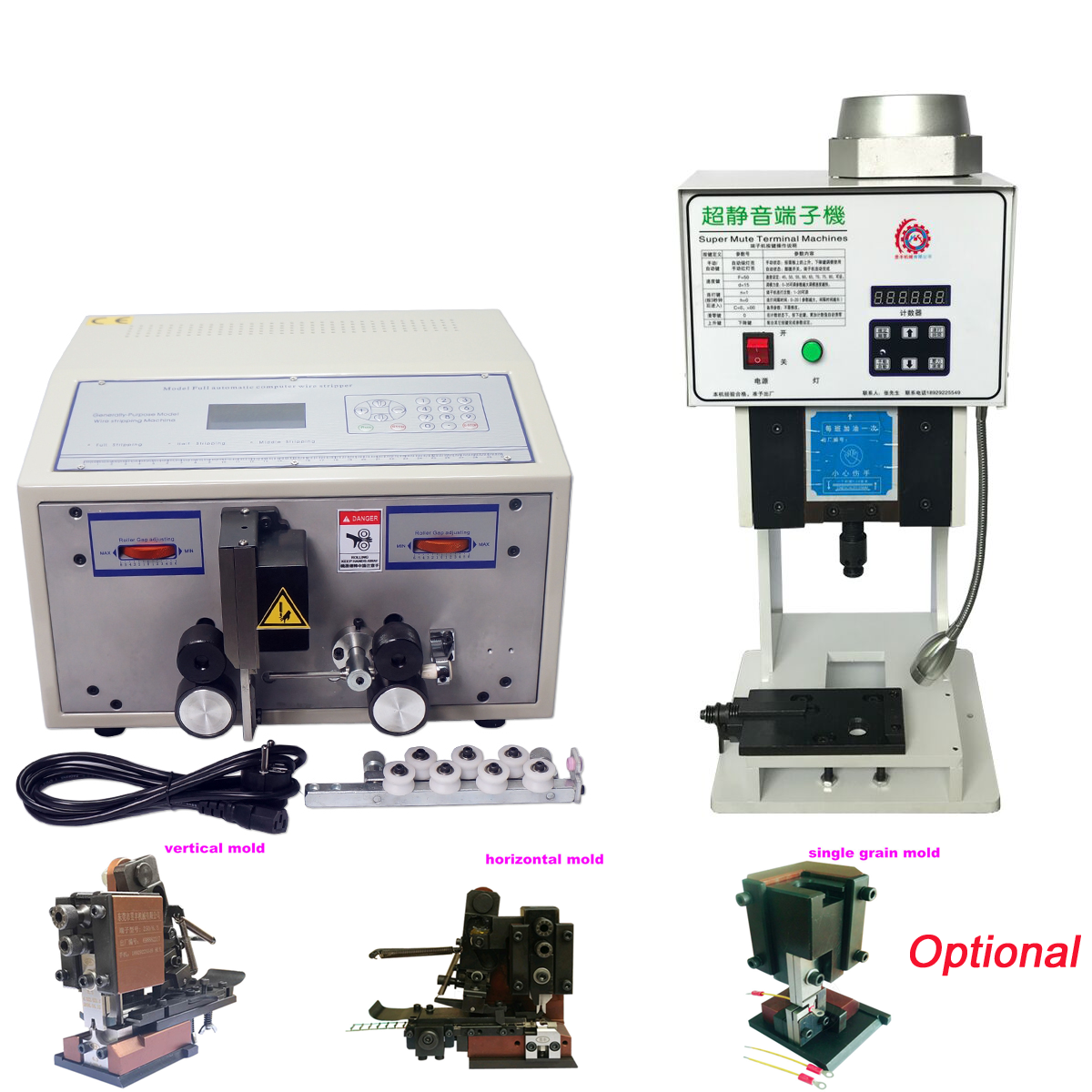

Packing list:

1 x terminal crimping machine

1x Peeling Striping Cutting Machine

1* Mold ( Three types optional)

Peeling Striping Cutting Machine

Product Description

Computer Wire Peeling Striping Cutting Machine/ computer strip wire machine 2.5mm2 SWT508C

The product function characteristics:

Collection and integration, the microcomputer automatic computer for the strip line machine is a kind of introduced in Japan, Taiwan, and other advanced automation technology of all of the numerical control equipment.

Our product is to use LCD screen man-machine dialogue mode, with nice appearance, simple operation, convenient maintenance, stable performance, speed, precision higher main features. Wire length can set arbitrary, thrum and the line end parameters can also according to the customer request to change, different degree of finish stripping wires, also has the high tension line of line, casing of the shear etc. Function

Applications:

Widely used in the electronics industry, the city ahs, electrical appliances, motor, lamps and lanterns, toys, and other various products of wire processing. Optimal stripped wire PVC, teflon, glass wire, etc.

Technical parameters:

1,The model: SWT508C

2,Power: AC 110 V / 220 V / 50/60 Hz

3, POWER:160W

4,Cutting length: 1-9999 mm

5,Cutting tolerance: (0.2+/- 0.002 by L) mm

6,Cut off the error: can be modified

7,Stripping length: thrum 0-35, wire ends 0-15 mm

8,Middle strip cut: eleven place strip

9,Cutting wire core section: 0.1-2.5mm2 was the (AWG16 #-AWG32 #)

10,The biggest diameter ducts: 6

11,Optimal stripped wire: PVC/teflon/silica gel line /. Glass fiber cables, etc

12,The blade material: hard tungsten steel (import BaiGang optional)

13,Peel linear velocity (a/hour) : L = 100 mm, 3000 8000 PCS/h (high yield)

14,Driving way: two wheel drive

15,Envelop dimensions: 390 x350x255

16,weight:30KG

17,Showing the way: Chinese and English LCD interface

18, 12 months warranty

terminal crimping machine

Specifications:

1. LY 1.5T is automatic high speed super mute terminal crimping machine. The machine is easy to operate and repair, which is designed for high output and low maintenance.

2. LY 1.5T uses frequency conversion technology, electronic precision positioning, noise is smaller than traditional terminal machine when it works. Power saving, convenient and swift to adjust mold

Functions:

1 . Voltage stability, high speed, high accuracy.

2. Used  for computer terminal, DC terminal, single terminal, wire terminal.

3. Lightweight      structures, easy to move, low noise.

Parameters
Model	LY 1.5T
Stroke	30mm
Power	220V/50HZ
Weight	49KG
Dimension	270*240*650mm
Motor Power	0. 75KW
Crimping force	2000KG
Apply	DC terminals,AC terminals,Single terminals, Continuous terminals,Single-action pedal

Capable to fit 3 molds: Vertical mold , horizontal mold, single grain mold; as below:

Packaging & Shipping

Packaging:

Packaging material: Carton/Wooden case with foam inside.

Shipping:

A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)

B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.

C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.

D. We can arrange shipment by sea . Minium CBM requirement : 1 CBM

Our Services

1.We provide you the friendly English User manual or operating videos for free.

2.24 hours technical support by email or calling.

3.Warranty: 1 year free , 2-3 years cost price and free technical support always.

4.Free training to make sure you master the operating of our products.

5.OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
