Quick Details
-
Material:
-
carton
-
Weight:
-
1.3kg
-
Size:
-
533*99*99
-
Power:
-
N/A
-
Weight (KG):
-
1.6 kg
-
Product name:
-
Water Treatment System Processing Reverse Osmosis Plant
-
Model No.:
-
100-4021
-
Pressure:
-
100PSI
-
Color:
-
Blue
-
weight:
-
1.55kg
-
dimension:
-
615*110*110mm
-
After-sales Service Provided:
-
Online support
Quick Details
-
Core Components:
-
membrane sheet
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WSD
-
Material:
-
carton
-
Weight:
-
1.3kg
-
Size:
-
533*99*99
-
Power:
-
N/A
-
Weight (KG):
-
1.6 kg
-
Product name:
-
Water Treatment System Processing Reverse Osmosis Plant
-
Model No.:
-
100-4021
-
Pressure:
-
100PSI
-
Color:
-
Blue
-
weight:
-
1.55kg
-
dimension:
-
615*110*110mm
-
After-sales Service Provided:
-
Online support

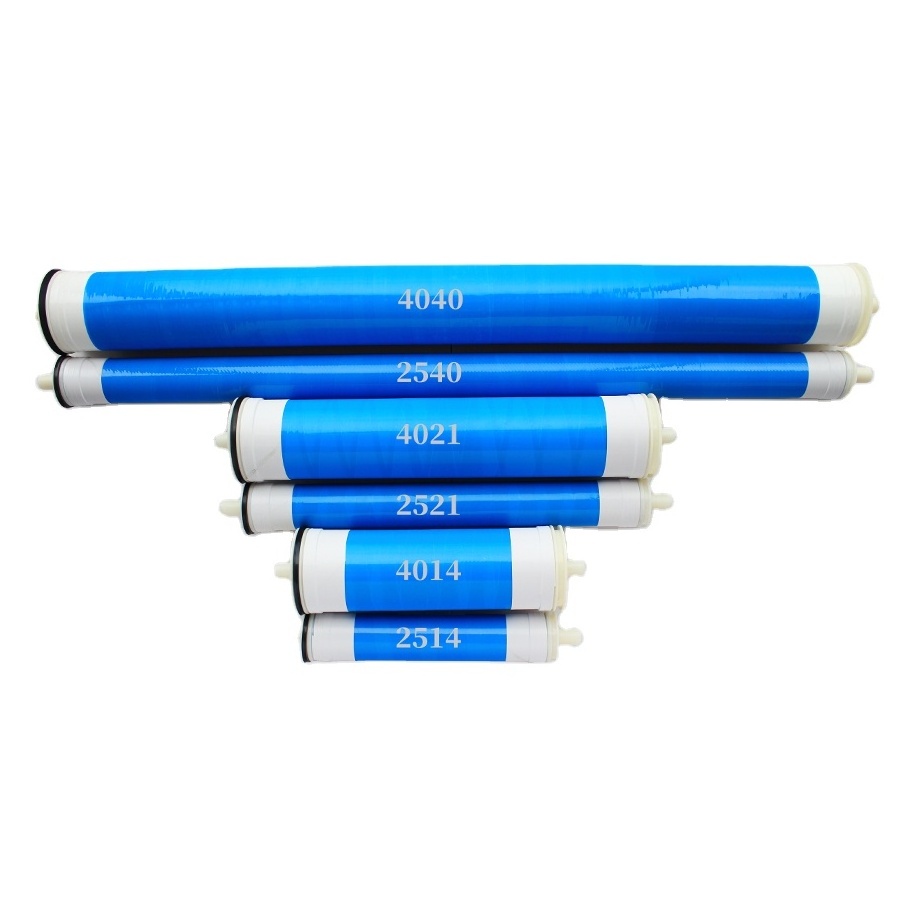

| MODEL | 2514 | 2521 | 2540 | 4014 | 4021 | 4040 |
| Flow Specifications | ||||||
| Permwate Flow GPD | 225gpd | 400gpd | 850gpd | 600gpd | 1000gpd | 2500gpd |
| Operating Limits | ||||||
| Max Temperature F O | 113(45℃) | 113(45℃) | 113(45℃) | 113(45℃) | 113(45℃) | 113(45℃) |
| Max Feed Flow gpm | 6gpm | 6gpm | 6gpm | 6gpm | 6gpm | 6gpm |
| Max Feed SDI | 5 | 5 | 5 | 5 | 5 | 5 |
| PH Range | 2-11 | 2-11 | 2-11 | 2-11 | 2-11 | 2-11 |
| Chlorine Tolerance | <0.1ppm | <0.1ppm | <0.1ppm | <0.1ppm | <0.1ppm | <0.1ppm |
Permeate flow and salt rejection is based on the following test conditions:500 ppm softened tap water,77 O F(25℃),15% recovery at 100psi,Minimum salt rejection is 97%. Stable Rejection Rate :98.5% ,Membrane production can vary +/- 20%.
|
Dimensions(mm) |
|||||
|
Product Name |
A |
B |
C |
D |
E |
|
4021-100PSI |
533 |
27 |
19 |
99 |
479 |
