Quick Details
-
Dimension(L*W*H):
-
1232*590*1371 mm
-
Weight:
-
258kg
-
Working Pressure:
-
7~10bar
-
Product name:
-
Combined air compressor
-
Capacity:
-
0.84 to 2.4m3/min
-
Air end:
-
Rotorcomp/Hanbell/GHH
-
Motor:
-
Siemens/ABB/Suma
-
Motor protection level:
-
IP54/IP55/IP65
-
Motor energy efficiency rating:
-
IE2/IE3
-
Cooling method:
-
Air Cooling
-
Bearing:
-
Sweden SKF
-
Exhaust oil content:
-
< 3ppm
-
OEM:
-
Offered
-
Certification:
-
CE/ISO9001/TUV
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Dehaha
-
Voltage:
-
220V/230V/380V/400V/415V/440V/460V/600V/Customized
-
Dimension(L*W*H):
-
1232*590*1371 mm
-
Weight:
-
258kg
-
Working Pressure:
-
7~10bar
-
Product name:
-
Combined air compressor
-
Capacity:
-
0.84 to 2.4m3/min
-
Air end:
-
Rotorcomp/Hanbell/GHH
-
Motor:
-
Siemens/ABB/Suma
-
Motor protection level:
-
IP54/IP55/IP65
-
Motor energy efficiency rating:
-
IE2/IE3
-
Cooling method:
-
Air Cooling
-
Bearing:
-
Sweden SKF
-
Exhaust oil content:
-
< 3ppm
-
OEM:
-
Offered
-
Certification:
-
CE/ISO9001/TUV
Durable air dryer screw compressor Combined With Tank 10hp air compressor
DEHAHA Combined Screw Air compressor is assembled with screw air compressor, refrigerated air dryer, air receiver tank and precision filter. Main Features:
1.Full performance in one screw compressor, convenience and save space
2.High efficiency performance, reliable quality
3. Large displacement: Displacement 10% higher than ordinary piston compressor.
4. Energy-saving: Compared with piston air compressor, this series of models for the new national standard two energy efficiency products, excellent energy saving.
5. Easy to operate: 24 hours unattended all day work, free load automatically start, full load automatically shut down.
6.Strong stability:Under long time working, displacement and pressure stable, no crash phenomenon, low failure rate.
Our screw compressor combined with air dryer and tank parameter list:
|
DBY Series(Combined with air tank) Screw Compressor
|
||||||||||||
| DHH | Air flow Capacity(m3/min)/cfm | Power | Noise | Diameter | Dimension | Weight | Tank | |||||
| 0.7Mpa | 0.8Mpa | 1.0Mpa | KW/HP | DB(A) | INCH | W×D×H mm | Kg | L | ||||
| MODEL | m3/min | cfm | m3/min | cfm | m3/min | cfm | ||||||
| DCY-7.5A | 0.86 | 32.1 | 0.84 | 29.6 | / | / | 5.5/7.5 | 63 | G3/4'' | 1232×590×1371 | 258 | 140 |

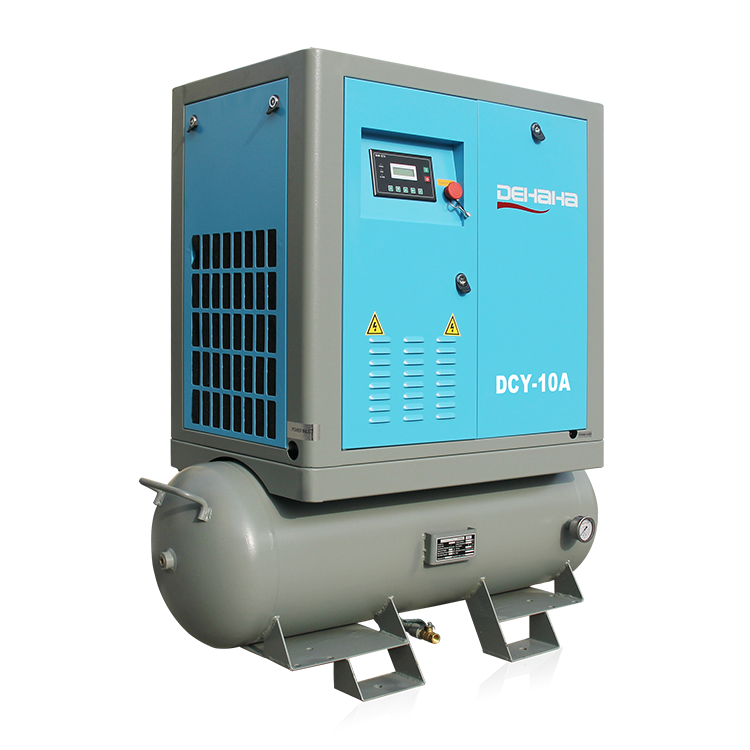

| DCY-10A | 1.3 | 45.9 | 1.2 | 42.4 | 1 | 35.3 | 7.5/10 | 63 | G3/4'' | 1232×590×1371 | 258 | 140 |
| DCY-15A | 1.7 | 60 | 1.6 | 56.5 | 1,4 | 49.4 | 11, 15 | 65 | G3/4'' | 1480×688×1520 | 388 | 260 |
| DCY-20A | 2.4 | 84.8 | 2.3 | 81.2 | 1.8 | 70.6 | 15/20 | 65 | G3/4'' | 1480×688×1520 | 395 | 260 |
|
DBZY Series(Combined with air dryer and tank) Screw Compressor
|
||||||||||||
| DHH | Air flow Capacity(m3/min)/cfm | Power | Noise | Diameter | Dimension | Weight | Tank | |||||
| 0.7Mpa | 0.8Mpa | 1.0Mpa | KW/HP | DB(A) | INCH | W×D×H mm | Kg | L | ||||
| MODEL | m3/min | cfm | m3/min | cfm | m3/min | cfm | ||||||
| DBZY7.5A | 0.91 | 32.1 | 0.84 | 29.6 | 0.75 | 26.5 | 5.5/7.5 | 65 | G3/4'' | 1418×700×1500 | 375 | 260 |
| DBZY-10A | 1.3 | 45.9 | 1.2 | 42.4 | 1.0 | 35.3 | 7.5/10 | 65 | G3/4'' | 1418×700×1500 | 395 | 260 |
| DBZY-15A | 1.7 | 60 | 1.6 | 56.5 | 1,4 | 49.4 | 11, 15 | 65 | G3/4'' | 1418×860×1628 | 500 | 500 |
| DBZY-20A | 2.4 | 84.8 | 2.3 | 81.2 | 2.0 | 70.6 | 15/20 | 65 | G3/4'' | 1418×860×1628 | 530 | 500 |
| DMZY-10A | 1.3 | 45.9 | 1.2 | 42.4 | 1.0 | 35.3 | 7.5/10 | 65 | G3/4'' | 1418X700X1500 | 395 | 260 |
| DMZY-20A | 2.4 | 84.8 | 2.3 | 81.2 | 1.8 | 63.6 | 15/20 | 65 | G3/4'' | 1882X790X1731 | 572 |
500 |
|
Motor Efficiency Class:
Ultraefficient/IE3/IE2 as per your required
Motor Protection Class: IP23/IP54/IP55 or as per your required Certification: CE/ISO9001/TUV/ASME Voltage: 380V/3PH/50HZ/60HZ, 220V/3PH/50HZ/60HZ, 400V/3PH/50HZ/60HZ, 440V/3PH/50HZ/60HZ, 415V/3PH/50HZ/60HZ, 230V/3PH/50HZ/60HZ, dual voltage is also ok. |
||||||||||||
Features:
Compact and low noise, m odular structure design, d urable parts, efficient and reliable belt drive,
Fully enclosed protective enclosure, s mall vibration, ergonomics design and convenient maintenance.
