Quick Details
-
Weight:
-
8600 KG
-
Drilling Diameter:
-
140mm-325mm
-
Drilling Depth:
-
350m
-
Product name:
-
Drill 200m Borehole Farm Bole Hole Drilling Truck Machine Rig
-
Drilling diameter:
-
140-325mm
-
Engine:
-
92KW
-
Max Drilling Depth:
-
350m
-
Swing speed (rpm):
-
66-135
-
the engine brand:
-
Yuchai engine
-
using air pressure(MPA):
-
1.7-3.4
-
drill pipe diameter(mm):
-
89,102
-
drill pipe length(M):
-
1.5,2.0,3.0,6.0
-
one-time advance length(m):
-
6.6
Quick Details
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
CS Drill
-
Dimension(L*W*H):
-
6000*2000*2550mm
-
Weight:
-
8600 KG
-
Drilling Diameter:
-
140mm-325mm
-
Drilling Depth:
-
350m
-
Product name:
-
Drill 200m Borehole Farm Bole Hole Drilling Truck Machine Rig
-
Drilling diameter:
-
140-325mm
-
Engine:
-
92KW
-
Max Drilling Depth:
-
350m
-
Swing speed (rpm):
-
66-135
-
the engine brand:
-
Yuchai engine
-
using air pressure(MPA):
-
1.7-3.4
-
drill pipe diameter(mm):
-
89,102
-
drill pipe length(M):
-
1.5,2.0,3.0,6.0
-
one-time advance length(m):
-
6.6
Products Description
Remark:
This drilling rig needs to be used with an air compressor. If you want to buy an air compressor at the same time, Please tell us your drilling depth and diameter. And we will give the corresponding recommendation. We can also put the drilling rig on a truck mounted chassis. Our engineers will help you get what you want.
|

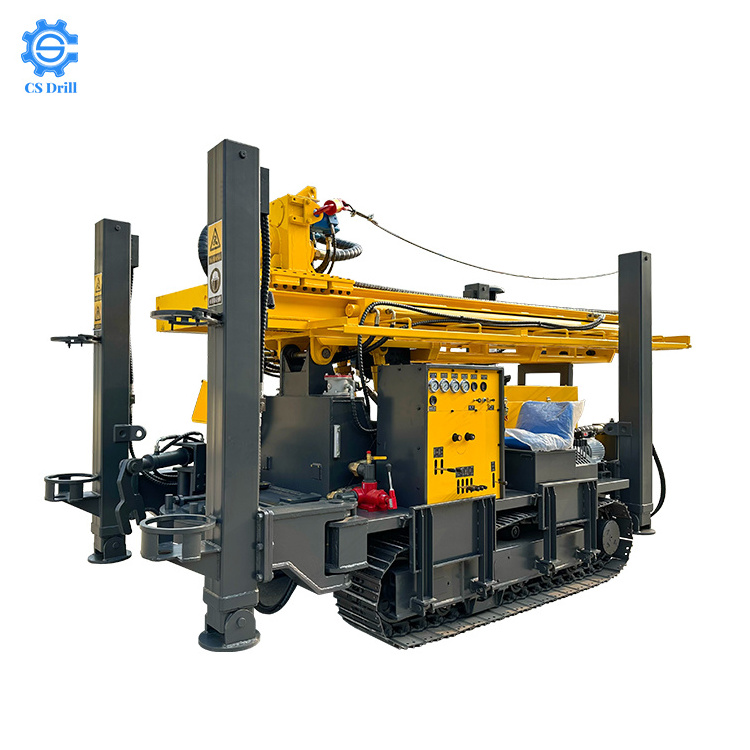

CS350 300M 350M Water Deep Drill 200m Borehole Farm Bole Hole Drilling Truck Machine Rig
|
|
|
|
|
||||
|
The Weight (T)
|
8.6T
|
|
Drill pipe diameter
|
Φ89 Φ102
|
||||
|
The Hole Diameter(mm)
|
140-325mm |
|
Drill Pipe Length (m)
|
1.5m 2.0m 3.0m 6.0m
|
||||
|
Drilling Depth (m)
|
350m
|
|
Rig lifting force (T)
|
22T
|
||||
|
One-time advance length (m)
|
6.6
|
|
rapid Rise Speed (m/min)
|
18
|
||||
|
Walking speed (km/h)
|
2.5
|
|
Fast Feeding Speed(m/min)
|
33
|
||||
|
Climbing angles (Max.)
|
30 |
|
Width of Loadng (m)
|
2.7
|
||||
|
Equipped capacitor (kw)
|
92
|
|
Hoisting force of winch
|
2T
|
||||
|
Working Air Pressure (Mpa)
|
1.7-3.4
|
|
Swing torque (N.M)
|
6200-8500
|
||||
|
Air consumption (m³/min)
|
17-36
|
|
Dimension (mm)
|
6000*2000*2250
|
||||
|
Swing Speed (rpm)
|
66-135 rpm
|
|
Equipped with hammer
|
Medium and high wind pressure series
|
||||
|
The drilling efficiency (m/h)
|
15-35
|
|
High leg Stroke (m)
|
1.4
|
||||
|
The engine brand
|
Yuchai Engine
|
|
|
|
||||
|
Note:
The Above Specification is for Drilling Machine Only
|
|
|
|
|
||||
Product Introduction
CS350 300M 350M Water Deep Drill 200m Borehole Farm Bole Hole Drilling Truck Machine Rig
widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering.
1. Energy saving. Low tower design, can drill indoor and outdoor.
2. Patented product, unique design and simple drilling structure.
3. Easy to transport and can learn how to handle the machine in short time.
4. Assure easily operation and long life service life
2. Patented product, unique design and simple drilling structure.
3. Easy to transport and can learn how to handle the machine in short time.
4. Assure easily operation and long life service life
Note:
The pneumatic drilling rig is multifunction, with different configurations suitable for different geologies. We can accept customization. If you have any good ideas, please contact us. Our engineers will help you get what you want.
